Manual del usuario del inflador de neumáticos digital ATsafepro con manómetro

Introducción

This manual provides instructions for the ATsafepro Digital Tire Inflator with Pressure Gauge. Please read this manual thoroughly before use to ensure proper operation and safety. This device is designed for accurately measuring and adjusting tire pressure for various vehicles, including bicycles, motorcycles, cars, and trucks.

Producto terminadoview

The ATsafepro Digital Tire Inflator combines a precise digital pressure gauge with an inflation and deflation tool. It features a dual chuck compatible with both Presta and Schrader valves, a backlit LCD screen for clear readings, and supports multiple pressure units.

Figura 1: ATsafepro Digital Tire Inflator with included accessories, including the main unit, hose, dual chuck, quick-connect fitting, valve caps, ball needle, and cone adapters.

Características principales:

• Dual Chuck Compatibility: Equipped with a dual chuck that supports both Presta and Schrader valves, eliminating the need for separate adapters.
• Alta precisión: Professionally calibrated to within 1% accuracy with a display resolution of 0.5 PSI.
• Múltiples unidades de medida: Supports four units: PSI, Bar, KPa, and Kgf/cm², with a range from 0 to 200 PSI (14 Bar, 1400 KPa, or 14 Kgf/cm²).
• Pantalla LCD retroiluminada: Features a bright green backlit LCD for easy reading in various lighting conditions.
• Diseño multifuncional: Functions as a tire pressure gauge, an inflator (when connected to an air compressor), and a deflator via its air bleeder valve.
• Construcción duradera: Built with high-quality materials for long-term performance and leak-proof operation.

Contenido del paquete

Verifique que todos los artículos estén presentes en el paquete:

• 1 x ATsafepro Digital Tire Inflator Gauge
• 1 x 1/4" NPT US Standard Quick-Connect Fitting
• 4 x Tire Valve Stem Caps
• 1 x Adaptador de aguja de bola
• 2 x Cone Adapters
• 1 x Sealant Tape (for quick-connect fitting)
• 2 pilas AAA (preinstaladas o incluidas por separado)

Configuración

1. Instale las baterías: If not pre-installed, open the battery compartment and insert 2 AAA batteries, observing polarity.
2. Connect to Air Compressor:
   • Apply sealant tape to the threads of the 1/4" NPT quick-connect fitting.
   • Screw the quick-connect fitting securely into the base of the inflator handle.
   • Connect the quick-connect fitting to your air compressor hose. Ensure a secure, leak-free connection.
3. Encendido: Press the "ON" button to power on the digital gauge. The LCD screen will illuminate.
4. Seleccionar unidad de presión: Press the "UNIT" button repeatedly to cycle through the available pressure units (PSI, Bar, KPa, Kgf/cm²) until your desired unit is displayed.

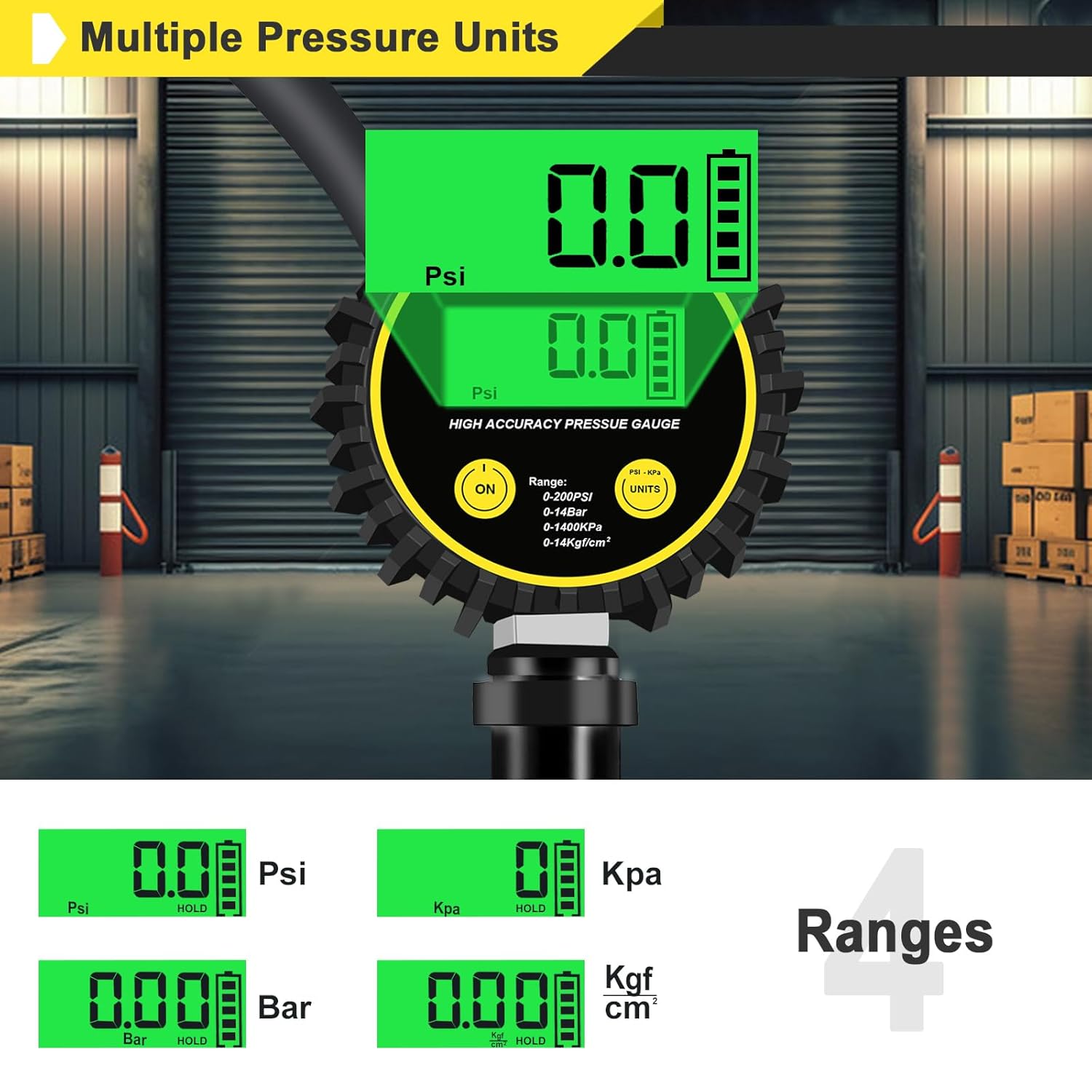

Figura 2: The digital display showing different pressure units (PSI, Bar, KPa, Kgf/cm²) and the "UNIT" button for selection.

Instrucciones de funcionamiento

1. Comprobación de la presión de los neumáticos:

1. Ensure the inflator is powered on and the correct pressure unit is selected.
2. Retire la tapa de la válvula del neumático.
3. Press the dual chuck firmly onto the tire valve stem. For Schrader valves, push straight on. For Presta valves, ensure the Presta side of the chuck is used. The gauge will display the current tire pressure.
4. Read the pressure displayed on the LCD screen.
5. Remove the chuck from the valve stem and replace the valve cap.

Figura 3: The dual chuck head, clearly labeled for both Schrader and Presta valve types, allowing direct connection without conversion.

2. Inflating Tires:

1. Follow steps 1-3 from "Checking Tire Pressure" to attach the inflator to the tire valve.
2. Ensure your air compressor is turned on and supplying air.
3. Press and hold the trigger on the inflator handle to begin inflation. The digital gauge will show the pressure increasing in real-time.
4. Release the trigger once the desired pressure is reached.
5. Remove the chuck from the valve stem and replace the valve cap.

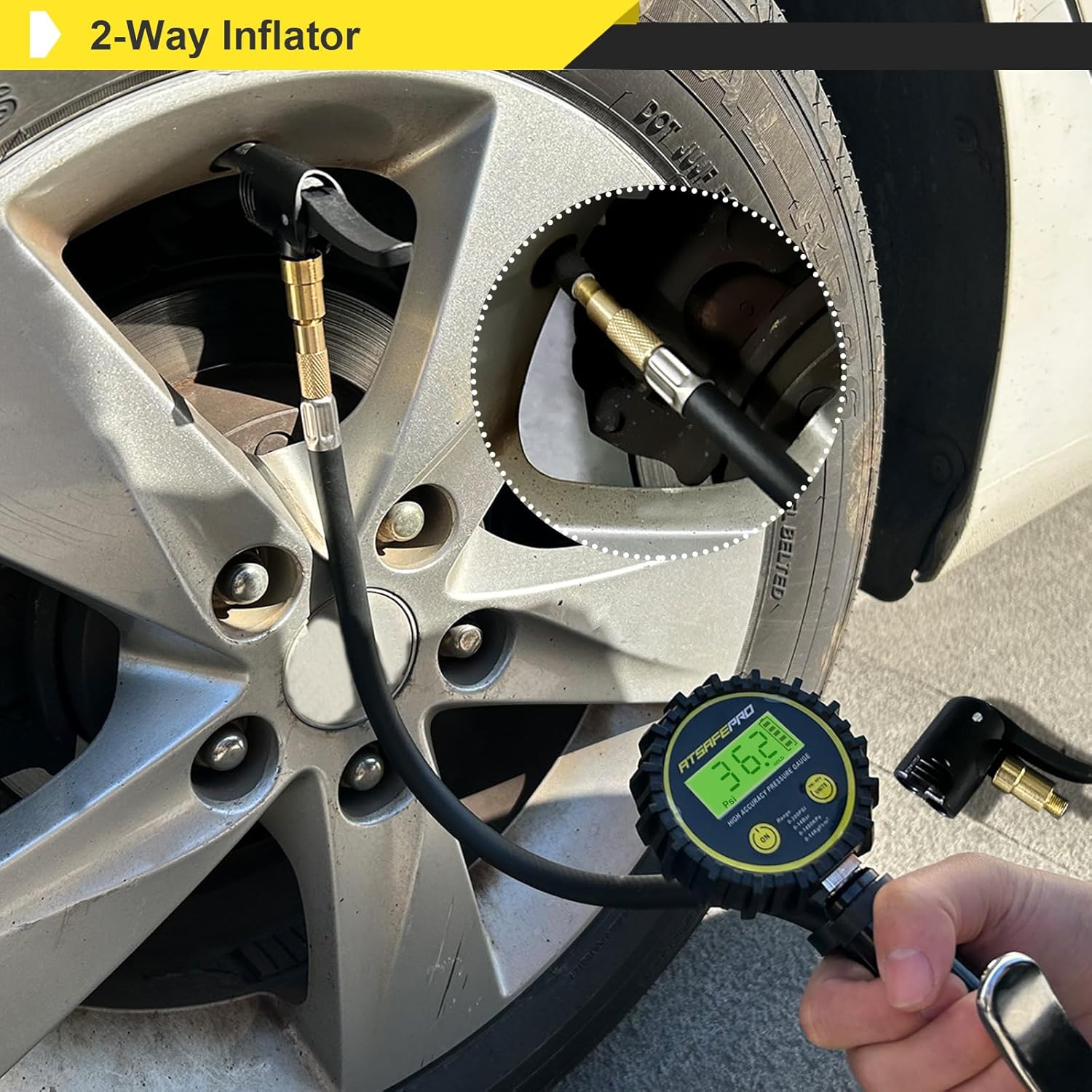

Figura 4: The ATsafepro inflator connected to a car tire valve, demonstrating its use for vehicle tire inflation.

3. Deflating Tires:

1. Attach the inflator to the tire valve as described in "Checking Tire Pressure". The current pressure will be displayed.
2. Press the air bleeder valve (small button or lever near the chuck) to release air from the tire.
3. Monitor the digital display until the desired lower pressure is achieved.
4. Release the air bleeder valve, then remove the chuck and replace the valve cap.

4. Using Lock-On Feature (for Presta/Schrader):

The chuck features a lever to secure it onto the valve stem for hands-free operation during inflation.

1. Push the chuck onto the valve stem.
2. Push the lever down to lock the chuck onto the valve stem.
3. To unlock, pull the lever up.

Figura 5: Top image shows the chuck unlocked and being placed on a bicycle tire valve. Bottom image shows the chuck locked onto the valve, securing the connection for inflation.

Mantenimiento

• Limpieza: Limpie el dispositivo con un paño suave, damp Paño. No utilice limpiadores abrasivos ni sumerja la unidad en agua.
• Almacenamiento: Guarde el inflador en un lugar seco y fresco, alejado de la luz solar directa y de temperaturas extremas.
• Reemplazo de batería: Replace batteries when the low battery indicator appears on the LCD screen. Ensure proper battery disposal.
• Hose and Chuck Inspection: Regularly inspect the hose and chuck for any signs of wear, cracks, or damage. Replace if necessary to maintain air-tight seals.

Solución de problemas

Presupuesto

Garantía y soporte

ATsafepro products are designed for reliability and performance. For warranty information, technical support, or assistance with your product, please refer to the contact information provided with your purchase or visit the official ATsafepro websitio.

For further assistance, you may contact ATsafepro customer service through their official channels. Please have your model number (B0DR8DMY7C) and purchase date available when contacting support.
