Outsunny 7.6 x 3.4ft Horizontal Outdoor Storage Shed Instruction Manual

1. Información de seguridad

Lea y comprenda todas las instrucciones antes de ensamblar y usar. El incumplimiento de estas instrucciones podría causar lesiones o daños materiales.

• Siempre siga cuidadosamente las instrucciones de montaje.
• Use appropriate tools and safety gear when handling components.
• Keep hands and fingers away from the locking mechanism when locking or unlocking the doors.
• Always supervise children when they are near the shed.
• No exceda el límite de peso del cobertizo.
• Ensure the shed is placed on a level, stable surface to prevent tipping.
• Secure the shed to the ground using appropriate anchors (not included) to prevent wind damage.

2. Producto terminadoview

The Outsunny 7.6 x 3.4ft Horizontal Outdoor Storage Shed is designed to provide a secure and organized solution for storing up to three standard trash cans, garden tools, or other outdoor essentials. Constructed from durable galvanized steel, it offers excellent weather resistance and features convenient access options.

Características principales:

• Triple Bin Protection: Accommodates up to 3 bins, protecting them from elements and pests.
• Convenient Lid Access: Features a pneumatic lifting lid for easy disposal without opening the main doors.
• Sistema de bloqueo seguro: Equipped with lockable double doors and a secure locking system (locks and keys included) for enhanced security.
• Construcción resistente a la intemperie: Made from galvanized steel to resist blisters, cracks, warps, and is waterproof for lasting outdoor use.
• Diseño espacioso: Ofertas ample storage with overall dimensions of 91.7" W x 41.3" D x 46.7" /52.4" H.

Image: The Outsunny Horizontal Outdoor Storage Shed with its top lid and double front doors open, revealing the spacious interior designed to hold multiple trash cans. A shovel and watering can are visible on the side, indicating its versatility for garden storage.

3. Configuración y montaje

Assembly of the Outsunny storage shed requires careful attention to detail. It is recommended to have at least two people for assembly. Ensure all parts are present before beginning.

Montaje terminadoview:

1. Conjunto del marco base: Connect the base frame components using the provided fasteners. Ensure all corners are securely joined.
2. Instalación del panel lateral y trasero: Attach the side and back panels to the assembled base frame. Secure them with screws, ensuring proper alignment.
3. Front Frame and Door Installation: Assemble the front frame and attach it to the side panels. Install the double doors, ensuring they open and close smoothly.
4. Roof Panel Assembly: Secure the roof panels to the top frame. Attach the pneumatic lifting mechanism for the lid.
5. Comprobaciones finales: Verify all screws are tightened, and all components are stable. Test the lid and door mechanisms.

Guías de ensamblaje visual:

Imagen: Un detalle view of the pneumatic lifting lid mechanism, highlighting the smooth operation for effortless rubbish disposal.

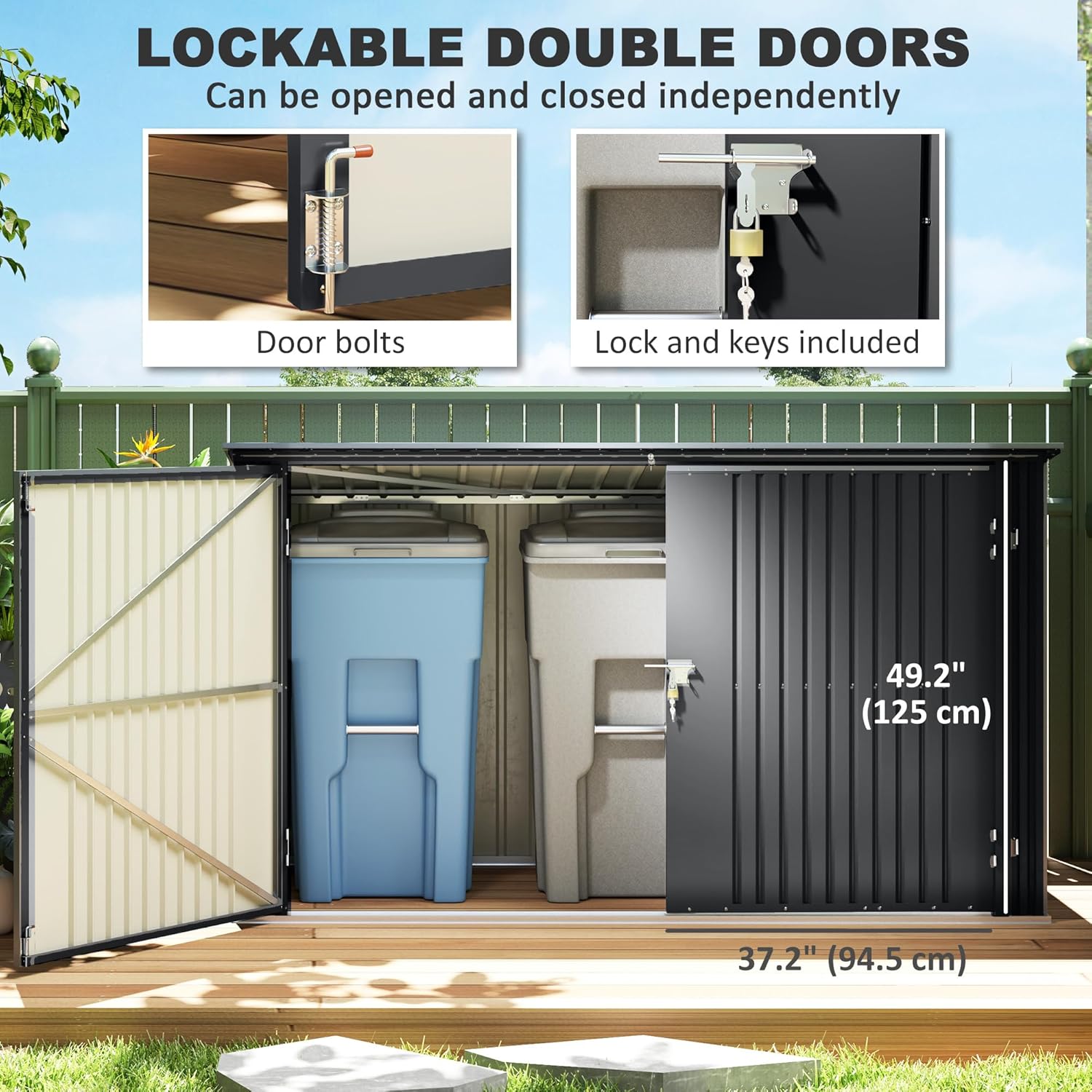

Image: A close-up of the lockable double doors, showing the door bolts and the included lock and keys for secure storage.

4. Instrucciones de funcionamiento

Acceso a la tapa:

To dispose of waste, simply lift the top lid. The pneumatic mechanism will assist in opening and holding the lid in place, allowing for convenient, hands-free access to the bins inside. Gently push down to close.

Acceso a la puerta:

To move trash cans in or out, unlock the double doors using the provided keys. The doors can be opened independently for flexible access. Ensure doors are securely latched and locked after use.

Image: The Outsunny storage shed with its double doors fully open, revealing two green recycling bins stored neatly inside. This demonstrates the ease of access for placing or removing bins.

5. Mantenimiento

El mantenimiento regular garantizará la longevidad y el rendimiento óptimo de su cobertizo de almacenamiento.

• Limpieza: Limpie el cobertizo periódicamente con agua y jabón suave. Evite limpiadores abrasivos o productos químicos fuertes que puedan dañar el acabado de acero galvanizado.
• Inspección: Inspeccione periódicamente todos los sujetadores y conexiones para asegurarse de que estén bien apretados. Apriete los tornillos flojos según sea necesario.
• Lubricación: Apply a silicone-based lubricant to the door hinges and pneumatic lid mechanism annually to ensure smooth operation.
• Drenaje: Ensure the area around the shed is clear of debris to allow for proper water drainage and prevent moisture buildup.

6. Solución de problemas

• Difficulty Opening/Closing Doors or Lid: Check for obstructions around hinges or tracks. Ensure all fasteners are properly tightened. Lubricate moving parts if necessary.
• Fuga de agua: Verify that all panels are correctly installed and sealed. Check for any gaps or damage to the roof or walls. Ensure the shed is on a level surface.
• Inestabilidad del cobertizo: Confirm the shed is on a flat, stable surface. Consider anchoring the shed to the ground for added stability, especially in windy conditions.

7. Especificaciones

Image: A diagram illustrating the key dimensions of the Outsunny storage shed, including width, depth, and height with the lid open and closed.

8. Garantía y soporte

For any questions, concerns, or assistance with your Outsunny storage shed, please contact Aosom Canada customer support. Refer to your purchase documentation for specific warranty details and return policies.

• Atención al cliente: Contact Aosom Canada for assistance.
• Política de devoluciones: Eligible for return or refund within 30 days of receipt.
