Introducción
This manual provides detailed instructions for the assembly, operation, and maintenance of your ODK 51 Inch L Shaped Gaming Desk. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation. Keep this manual for future reference.
Image: The ODK 51 Inch L Shaped Gaming Desk, showcasing its L-shaped design suitable for corner placement, equipped with a monitor, keyboard, mouse, and gaming accessories.
Información de seguridad
Always assemble the desk on a flat, stable surface. Ensure all parts are securely fastened. This desk is heavy and large, so it may tip over if not properly assembled or if leaned on. Keep away from children and pets. Do not place heavy objects on the desk that could cause it to tip over.
Contenido del paquete
Antes de comenzar el montaje, verifique que todos los componentes estén presentes y sin daños. Si alguna pieza falta o está dañada, póngase en contacto con atención al cliente.
- Paneles de escritorio (secciones en forma de L)
- Metal Frame Components (legs, support beams, diagonal braces)
- Herrajes de montaje (tornillos, pernos, arandelas)
- Almohadillas para pies ajustables
- Assembly Tools (screwdriver, Allen wrench)
- Manual de instrucciones
Instrucciones de montaje
Assembly typically takes less than 30 minutes with the provided tools. Follow the steps carefully for a stable and secure desk.
- Paso 1: Desembale e identifique las piezas. Lay out all components on a clean, soft surface to prevent scratches. Refer to the parts list in the included manual to identify each piece.
- Step 2: Assemble the Frame Sections. Attach the metal frame components to form the individual desk sections. Ensure all screws are finger-tightened initially.
- Step 3: Connect Frame Sections. Join the two main frame sections to create the L-shape. Secure with the provided hardware.
- Step 4: Attach Diagonal Braces. Install the diagonal braces to the frame legs for enhanced stability.
- Paso 5: Coloque los paneles del escritorio. Carefully position the desktop panels onto the assembled frame. Align screw holes.
- Step 6: Secure Desktop Panels. Fasten the desktop panels to the frame using the appropriate screws. Tighten all screws securely, but do not overtighten.
- Step 7: Install Adjustable Foot Pads. Atornille las almohadillas ajustables para los pies en la parte inferior de cada pata.
- Step 8: Level the Desk. Adjust the foot pads as needed to ensure the desk is stable and level on uneven floors.
Image: A visual guide illustrating the 4 main steps for quick and easy assembly of the ODK L-shaped desk, estimated to take 25 minutes.
Instrucciones de funcionamiento
The ODK 51 Inch L Shaped Gaming Desk is designed for optimal space utilization and comfort in home office, study, or gaming environments.
Placement and Space Utilization
The L-shaped design is ideal for corner placement, maximizing your available room space. The desk provides ample surface area for multiple monitors, a keyboard, mouse, and other peripherals.
Image: A user seated at the desk, highlighting the generous legroom and open space beneath the desktop for comfortable use.
Stability and Adjustments
The desk features a sturdy steel frame with eight support legs and diagonal braces for enhanced stability. Adjustable foot pads allow you to fine-tune the desk's level on uneven surfaces, preventing wobbling.

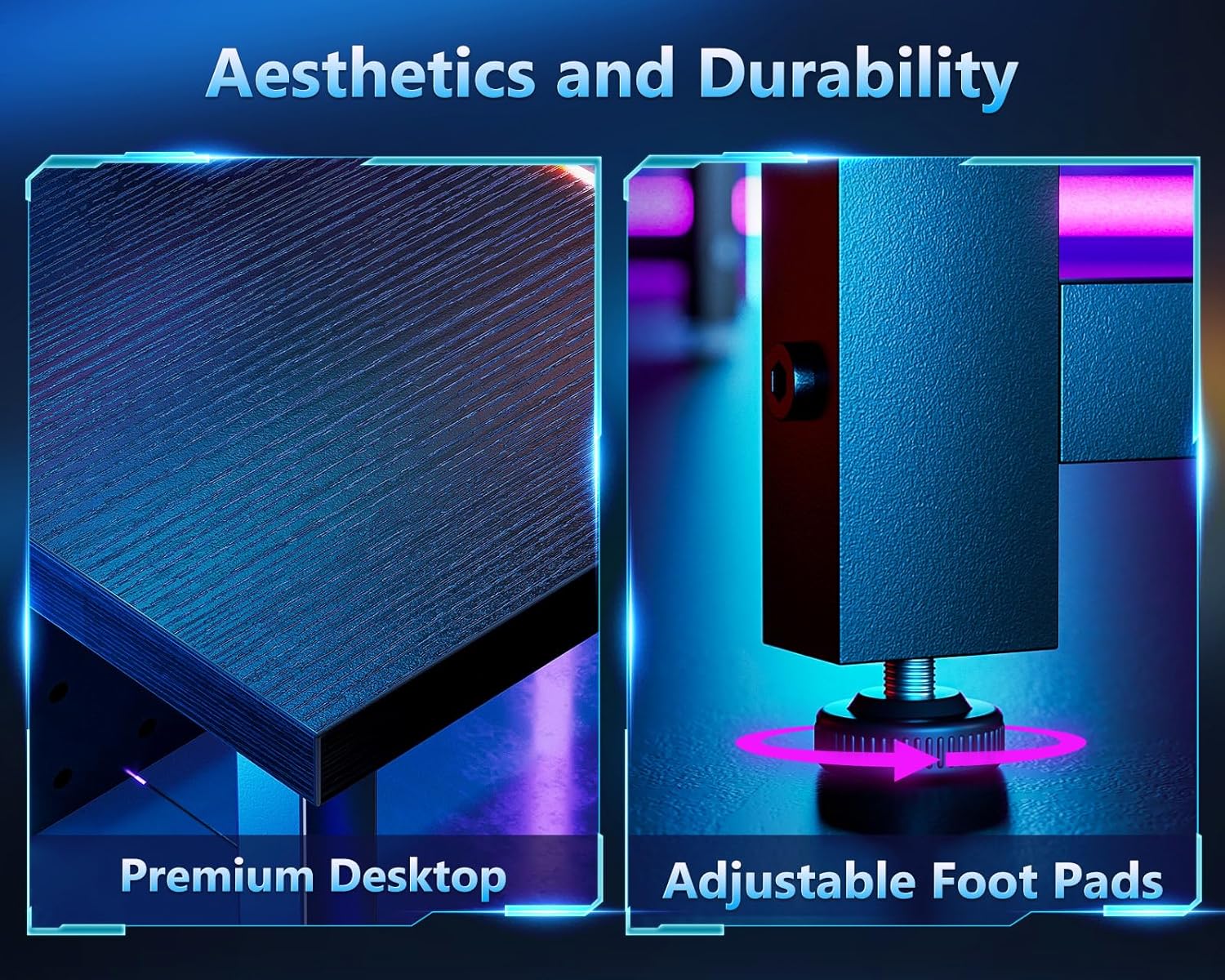

Imagen: Detallada views of the desk's premium desktop surface and the adjustable foot pads, emphasizing durability and stability features.
Mantenimiento
- Limpieza: Limpie el escritorio y el marco con un paño suave.amp paño. Evite productos químicos agresivos o limpiadores abrasivos que puedan dañar el acabado.
- Comprobación del sujetador: Revise periódicamente todos los tornillos y pernos para asegurarse de que estén bien apretados. Vuelva a apretarlos si es necesario para mantener la estabilidad.
- Evite el exceso de peso: Do not exceed the maximum weight recommendation of 150 pounds to prevent damage or instability.
Solución de problemas
- El escritorio se tambalea: Ensure all assembly screws are fully tightened. Adjust the foot pads on each leg to level the desk on uneven flooring.
- Partes faltantes: Si falta alguna pieza al desembalar, consulte la lista de contenido del paquete y comuníquese con atención al cliente para obtener ayuda.
- Dificultad de montaje: Review the assembly instructions carefully. Ensure components are oriented correctly. Do not force parts together.
Presupuesto
| Característica | Detalle |
|---|---|
| Marca | ODK |
| Número de modelo | SPCB02030901013USDF-2 |
| Dimensiones del producto (Pr. x An. x Al.) | 50.5" de profundidad x 50.5" de ancho x 29.9" de alto |
| Color | Negro clásico |
| Tipo de material superior | Madera de ingeniería |
| Material base | Metal |
| Peso del artículo | 36.4 libras |
| Recomendación de peso máximo | 150 libras |
| Montaje requerido | Sí |
| Personas recomendadas para el montaje | 1 |
| Componentes incluidos | Gancho para auriculares |
Image: A detailed diagram illustrating the dimensions of the ODK L-shaped desk, including length, width, and height measurements for each section.
Garantía y soporte
ODK provides a 30-day free return or exchange service for this product. For any issues, questions, or concerns, our professional customer service team is available 24 hours online to assist you.
Consulte la documentación de compra para conocer los términos y condiciones específicos de la garantía.
