Introducción
This manual provides comprehensive instructions for the safe and effective use of your NEBO SLYDE King 4K Rechargeable Flashlight and Work Light. Please read this manual thoroughly before operating the device and retain it for future reference.
Imagen 1: The NEBO SLYDE King 4K, a versatile rechargeable flashlight and work light.
Información de seguridad
Para garantizar un funcionamiento seguro, siga siempre estas pautas:
- Do not look directly into the LED light. The intense light output can cause temporary vision impairment.
- Mantener fuera del alcance de los niños.
- Do not disassemble the unit. This will void the warranty and may cause damage.
- Utilice únicamente el cable de carga USB-C proporcionado o un equivalente certificado.
- No exponga la batería a temperaturas extremas ni al fuego.
- Asegúrese de que la tapa del puerto de carga esté bien cerrada cuando no esté cargando para mantener la resistencia al agua.
Contenido del paquete
Verifique que todos los artículos estén presentes en su paquete:
- NEBO SLYDE King 4K Flashlight and Work Light
- Cable de carga USB-C a USB
- Acollador
- Manual de instrucciones (este documento)
Configuración
Carga inicial
Before first use, fully charge the NEBO SLYDE King 4K. The device comes with a pre-installed rechargeable lithium-ion battery.
- Locate the USB-C charging port on the flashlight. It is typically covered by a rubber flap to protect against water and dust.
- Open the rubber flap and insert the small end of the USB-C charging cable into the port.
- Connect the larger USB-A end of the cable to a powered USB port (e.g., computer, wall adapter, power bank).
- The power button will illuminate to indicate charging status. A red light indicates charging, and a blue light indicates a full charge.
- Charging typically takes 4 to 8 hours for a full charge.
- Once fully charged, disconnect the cable and securely close the rubber flap over the charging port.
Imagen 2: The NEBO SLYDE King 4K connected to a USB-C charging cable.
Colocación del cordón
Attach the included lanyard to the designated loop on the flashlight's tail cap for added security and ease of carrying.
Instrucciones de funcionamiento
Funciones del botón de encendido
The power button controls all light modes and power functions.
- Presione y suelte: Cycles through flashlight modes (High, Low).
- Pulse dos veces: Activates the work light (COB).
- Mantener presionado: Activates dimming function for current mode.
- Directo a rojo: When the work light is active, press and hold to switch to red light mode.
Operación de linterna
The front-facing LED flashlight offers powerful illumination and adjustable focus.
- Encender/Apagar: Press the power button once to turn on the flashlight. Press again to cycle through modes or turn off after a few seconds in a single mode.
- Modos: The flashlight has High (4000 lumens) and Low (400 lumens) modes.
- Función de zoom: Twist the head of the flashlight to adjust the beam from a wide floodlight to a focused spotlight (4X zoom).
Imagen 3: The NEBO SLYDE King 4K flashlight in use, demonstrating its powerful beam.
Imagen 4: Illustrates the 4X zoom capability, switching between floodlight and spotlight modes.
Work Light (COB) Operation
The COB work light provides broad area illumination and features a unique slide-to-reveal design.
- Activar: Slide the body of the flashlight downwards to reveal the COB work light. The work light will automatically turn on.
- Modos: The work light has High (1000 lumens) and Low (100 lumens) white light modes.
- Modo de luz roja: From the white work light mode, press and hold the power button to switch to Red High (40 lumens), Red Low (4 lumens), and Red Flashing (40 lumens) for emergency signaling or preserving night vision.
- Apagar: Slide the body upwards to conceal the COB work light, which will turn it off. Alternatively, cycle through modes until off, or press and hold the power button.

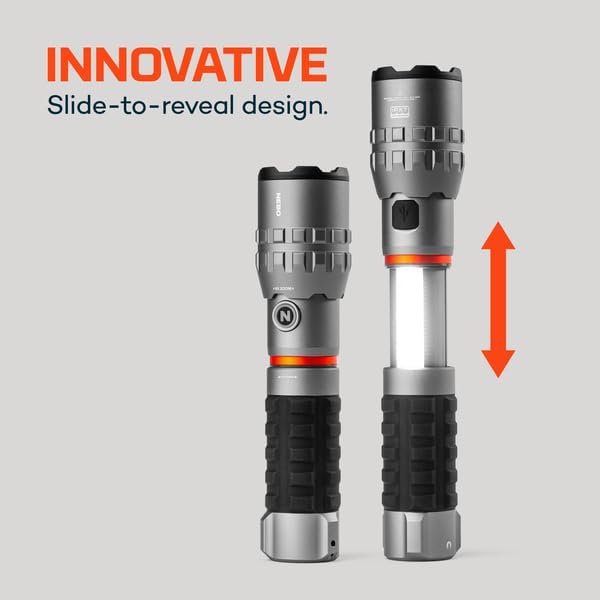

Imagen 5: The innovative slide-to-reveal design of the NEBO SLYDE King 4K, exposing the COB work light.
Imagen 6: The COB work light in operation, providing wide-area illumination.

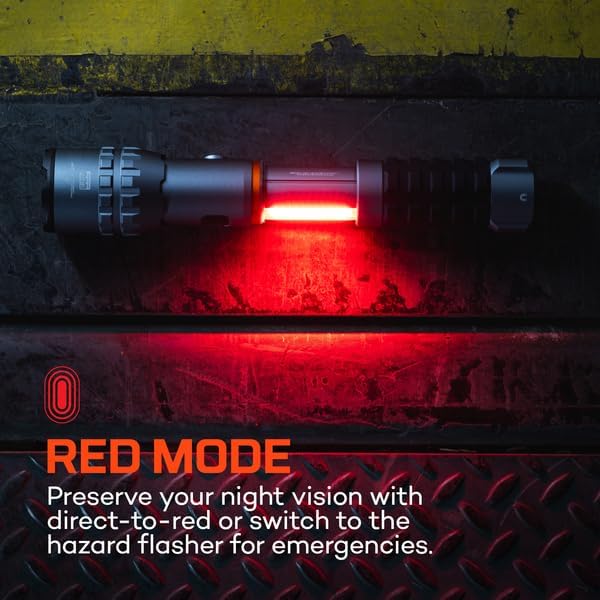

Imagen 7: The work light operating in red mode, useful for night vision preservation or signaling.
Base Magnética
The powerful magnetic base allows for hands-free operation by attaching the flashlight to metallic surfaces.
Imagen 8: The magnetic base securely holding the flashlight to a metal surface for hands-free use.
Memoria de energía
The SLYDE King 4K features power memory, which means it will remember the last used light mode (flashlight or work light, and its intensity) when turned back on, provided it was off for more than 8 seconds.
Mantenimiento
- Limpieza: Limpie la linterna con un paño suave y seco.amp Paño. No utilice limpiadores abrasivos ni disolventes.
- Puerto de carga: Keep the USB-C charging port clean and free of debris. Ensure the rubber flap is sealed when not charging to maintain water resistance.
- Cuidado de la batería: For optimal battery life, avoid fully discharging the battery frequently. Recharge regularly. If storing for an extended period, charge the battery to approximately 50% every 3-6 months.
- Almacenamiento: Guarde la linterna en un lugar fresco y seco, lejos de la luz solar directa y de temperaturas extremas.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| La linterna no se enciende. | La batería está agotada. | Cargue la linterna utilizando el cable USB-C. |
| La salida de luz es tenue. | Nivel de batería bajo. | Recargar la batería. |
| Work light does not activate. | Not fully slid open. | Ensure the body is fully slid down to reveal the COB light. |
| Charging indicator light is not working. | Cable not properly connected or faulty. | Ensure the USB-C cable is securely connected to both the flashlight and the power source. Try a different USB port or cable. |
| Entrada de agua después de la exposición. | Charging port flap not sealed. | Always ensure the rubber flap covering the USB-C port is securely closed when not charging to maintain IPX7 water resistance. |
Presupuesto
| Característica | Detalle |
|---|---|
| Número de modelo | NEB-WLT-0031 |
| Light Output (Flashlight High) | 4000 lúmenes |
| Light Output (Flashlight Low) | 400 lúmenes |
| Light Output (Work Light High) | 1000 lúmenes |
| Light Output (Work Light Low) | 100 lúmenes |
| Light Output (Red High) | 40 lúmenes |
| Light Output (Red Low) | 4 lúmenes |
| Light Output (Red Flashing) | 40 lúmenes |
| Tipo de batería | Rechargeable Lithium-Ion (2600 mAh, 3.7V) |
| Tiempo de carga | 4-8 hours via USB-C |
| Material | Aluminio anodizado de calidad aeronáutica |
| Resistencia al agua | IPX7 (Sumergible hasta 1 metro durante 30 minutos) |
| Resistencia al impacto | Sí |
| Dimensiones (compactas) | 20.7 cm (8.15 inches) Length, 4.5 cm (1.77 inches) Diameter |
| Dimensiones (extendidas) | 25.9 cm (10.2 inches) Length |
| Peso | 548.85 g (1.21 libras) |
| Componentes incluidos | USB-C Charging Cable, Lanyard |
Imagen 9: Detailed specifications for each light mode, including output, runtime, and beam distance.
Garantía y soporte
For warranty information and customer support, please refer to the official NEBO webSitio web o contacte directamente con el servicio de atención al cliente. Conserve su recibo de compra como comprobante.
Soporte en línea: Visit NEBO Support Page
Fabricante: NEBO
Número de pieza del fabricante: NEB-WLT-0031
