Manual del usuario del teléfono Wi-Fi portátil compacto Grandstream WP816

1. Producto terminadoview

The Grandstream WP816 is a compact, portable Wi-Fi phone designed for clear communication. It features dual-band Wi-Fi 6 for reliable connectivity, supports two SIP accounts and two lines, and delivers HD voice quality with dual microphones, Acoustic Echo Cancellation (AEC), and Noise Shield Technology. The phone includes integrated Bluetooth for headset connectivity, a long-lasting 1500mAh rechargeable battery providing 6 hours of talk time and 120 hours of standby time, and a configurable push-to-talk button. It is equipped with a Type C USB port for fast charging and a 3.5mm headset jack. Additional features include an accelerometer and an emergency button.

Características principales:

• Dual-band Wi-Fi 6 with efficient antenna design and advanced roaming support.
• Admite 2 cuentas SIP y 2 líneas.
• HD voice with dual MIC design, AEC, and Noise Shield Technology.
• Integrated Bluetooth for headset connection.
• Rechargeable 1500mAh battery: 6 hours talk time, 120 hours standby.
• Botón configurable para funcionalidad pulsar para hablar.
• Type C USB port (supports fast charging) and 3.5mm headset jack.
• Built-in accelerometer and emergency button.

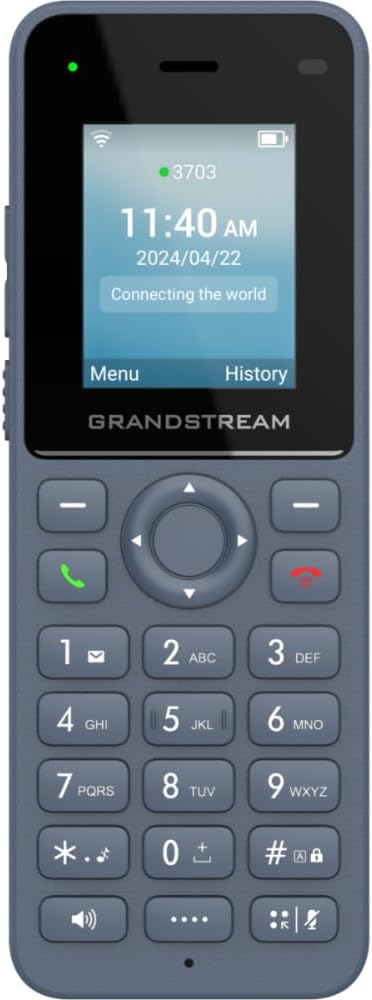

Figura 1: Frente view of the Grandstream WP816 Wi-Fi Phone, displaying its screen, keypad, and branding.

2. Configuración

2.1. Qué hay en la caja:

• Grandstream WP816 Wi-Fi Phone
• (Additional accessories such as power adapter, charging cradle, and battery are typically included but not explicitly detailed in the provided 'whats_in_the_box' field, which only states "Phone". Assuming standard phone accessories.)

2.2. Carga del teléfono:

1. Connect the power adapter to the charging cradle and a power outlet.
2. Place the WP816 phone into the charging cradle. Ensure the phone is seated correctly and the charging indicator illuminates.
3. Allow the phone to charge fully before initial use. This typically takes several hours. The Type C USB port also supports fast charging.

2.3. Configuración inicial:

1. Encendido: Mantenga presionado el botón de Encendido/Finalizar llamada hasta que la pantalla se ilumine.
2. Conexión Wi-Fi: Navigate to the "Settings" menu, then "Wi-Fi". Select your desired Wi-Fi network and enter the password if prompted. The phone supports dual-band Wi-Fi 6.
3. SIP Account Configuration: Access the "Settings" menu to configure your SIP accounts. The phone supports 2 SIP accounts. Refer to your VoIP service provider for specific SIP settings (SIP server, User ID, Password).
4. Fecha y hora: Ensure the date and time are correctly set, either manually or via network synchronization.

3. Instrucciones de funcionamiento

3.1. Realizar llamadas:

• Discado: Introduzca el número de teléfono utilizando el teclado.
• Iniciar llamada: Press the Green Call button to place the call.
• Finalizar llamada: Press the Red End Call button to terminate the conversation.

3.2. Recibir llamadas:

• Cuando suene el teléfono, presione el botón de llamada verde para responder.
• To reject an incoming call, press the Red End Call button.

3.3. Speakerphone Function:

• During a call, press the Speaker button (often indicated by a speaker icon) to activate the speakerphone.
• Press the Speaker button again to switch back to the earpiece.

3.4. Push-to-Talk (PTT):

• The WP816 features a configurable button for Push-to-Talk functionality.
• Consult your system administrator or service provider for configuration details and usage of the PTT feature.

3.5. Bluetooth Headset Connectivity:

1. Ensure your Bluetooth headset is in pairing mode.
2. On the WP816, navigate to "Settings" > "Bluetooth".
3. Active Bluetooth y busque los dispositivos disponibles.
4. Select your headset from the list and follow any on-screen prompts to complete pairing.

4. Mantenimiento

4.1. Cuidado de la batería:

• Para maximizar la vida útil de la batería, evite las temperaturas extremas.
• Charge the phone regularly. Do not let the battery completely drain for extended periods.
• Si el teléfono no se utilizará durante un tiempo prolongado, cárguelo al 50 % aproximadamente y guárdelo en un lugar fresco y seco.

4.2. Limpieza:

• Utilice un paño suave y seco para limpiar el exterior del teléfono.
• Evite el uso de productos químicos agresivos, disolventes de limpieza o detergentes fuertes.

5. Solución de problemas

5.1. No Power:

• Asegúrese de que la batería esté correctamente insertada y cargada.
• Verifique que la base de carga esté conectada correctamente a una fuente de alimentación.

5.2. Cannot Connect to Wi-Fi:

• Compruebe si la red Wi-Fi está activa y dentro del alcance.
• Confirm the Wi-Fi password is entered correctly.
• Restart the phone and the Wi-Fi router.

5.3. Poor Call Quality:

• Ensure you are within good Wi-Fi signal range.
• Comprueba la velocidad y la estabilidad de tu conexión a Internet.
• Verify SIP account settings with your service provider.

5.4. Phone Not Responding:

• Perform a soft reset by removing and reinserting the battery.
• If the issue persists, a factory reset might be necessary (refer to advanced settings, note this will erase all data).

6. Especificaciones

7. Garantía y soporte

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Grandstream webSitio. Conserve su comprobante de compra para reclamaciones de garantía.
