Introducción
This manual provides detailed instructions for the installation, operation, and maintenance of the SEAFLO 12V Quiet-Flush Marine Toilet Flush Pump, Model SFMTP1-04. This high-volume, self-priming discharge pump is designed as a direct replacement for existing SEAFLO and Jabsco Quiet Flush toilet systems. It features quiet operation and enhanced discharge performance, transitioning from traditional intake/exhaust to full-powered waste ejection with improved flow and reduced noise. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your pump.
Componentes del producto
The SEAFLO SFMTP1-04 pump package includes the following components:
Figure 1: Included Components of the SEAFLO SFMTP1-04 Flush Pump.
- Flush Pump (1): The main pump unit.
- Flush Pump Cover (1): Protective cover for the pump.
- Flush Valve (1): Component for controlling water flow.
- Hardware: Mounting screws and fasteners.
- Joker Valve (1) & Skeleton (1): Internal components for waste management.
Compatibilidad
The SEAFLO SFMTP1-04 is designed as a direct replacement for various marine toilet flush systems. It is fully compatible with the following models:

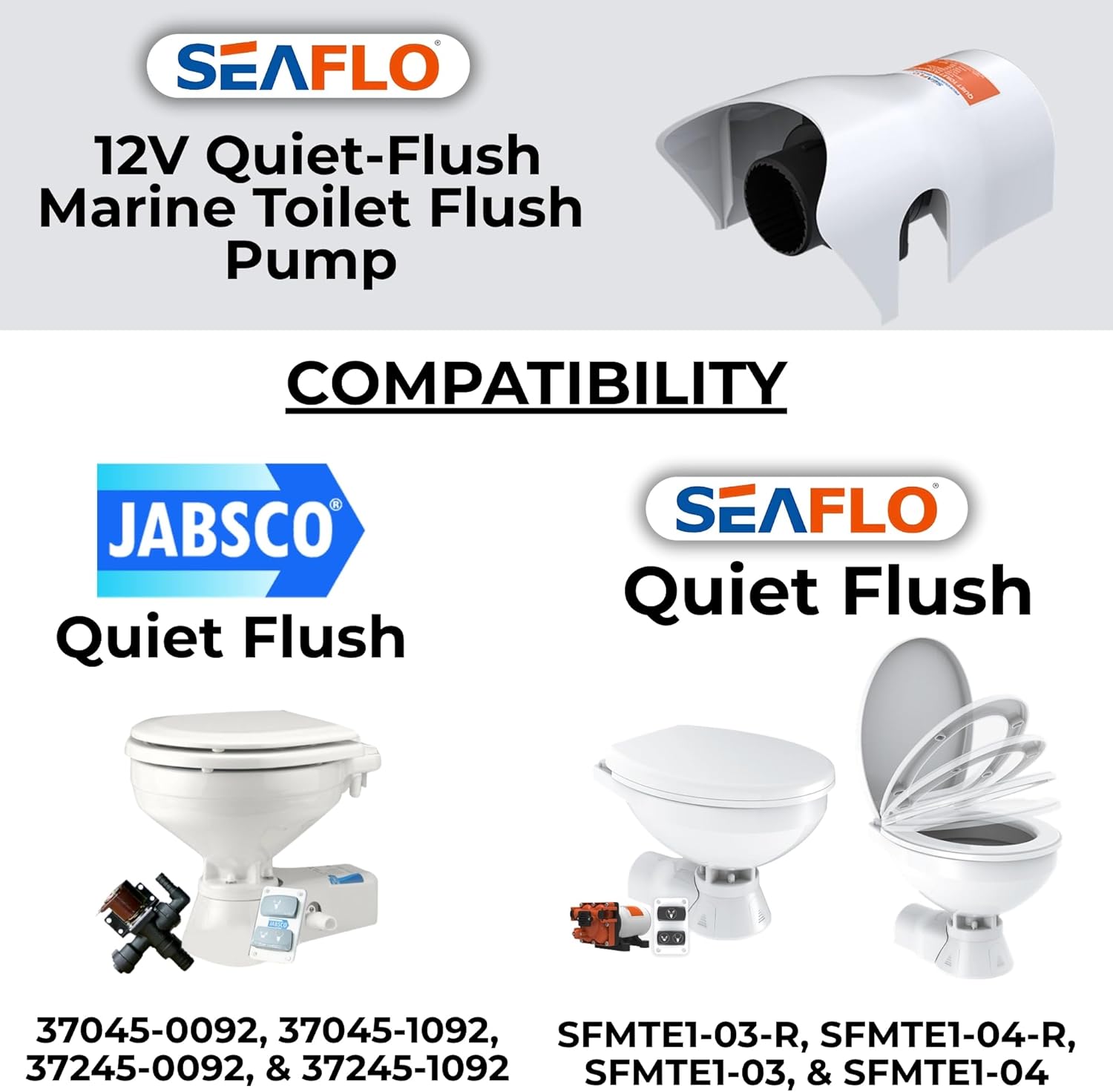

Figure 2: Compatibility with SEAFLO and Jabsco Quiet Flush Toilet Systems.
- SEAFLO Quiet Flush Toilet Models: SFMTE1-03-R, SFMTE1-04-R, SFMTE1-03, SFMTE1-04.
- Jabsco Quiet Flush Units: 37045-0092, 37045-1092, 37245-0092, 37245-1092.
- Replacement Equivalent for: Jabsco pump assembly 37072-0092.
Presupuesto
Detailed technical specifications for the SEAFLO SFMTP1-04 pump are provided below:
| Característica | Especificación |
|---|---|
| Modelo | SFMTP1-04 |
| Volumentage | 12 V CC |
| Caudal | 25 GPM (95 LPM) |
| Consumo de corriente | 16A |
| Requisito de fusible | 25A |
| Puertos | 0.78 pulgadas |
| Material del impulsor | Acero inoxidable |
| Fuente de poder | Eléctrico con cable |
| Peso del artículo | 4.15 libras |
| Dimensiones del paquete | 9 x 6.25 x 4 pulgadas |
| Solicitud | Marine Electric Toilet Flush Systems |
| Garantía | Garantía limitada de años 4 |
Figure 3: Dimensional Drawing of the SFMTP1-04 Pump.
Configuración e instalación
The SEAFLO SFMTP1-04 pump is designed for straightforward installation as a replacement unit. Follow these general guidelines for proper setup:
- Seguridad ante todo: Ensure all power to the marine toilet system is disconnected before beginning installation. Close all relevant seacocks.
- Retire la bomba vieja: Carefully disconnect the wiring and plumbing from the existing flush pump. Be prepared for residual water in the lines.
- Montaje: Position the new SEAFLO SFMTP1-04 pump in the desired location. The pump features a compact design and a plug-and-replace footprint for easy integration into tight marine head compartments. Use the provided mounting hardware to secure the pump firmly.
- Conexiones de fontanería: Connect the inlet and outlet hoses to the pump's 0.78-inch ports. Ensure all connections are watertight using appropriate marine-grade clamps and sealants.
- Cableado eléctrico: Connect the pump's wiring to the vessel's 12V DC power supply. The pump draws 16A, so ensure the circuit is protected by a 25A fuse. The red wire is typically positive (+), and the black wire is negative (-). Consult your vessel's electrical diagram if unsure.
- Instalar cubierta: Place the flush pump cover over the pump unit for protection.
- Sistema de prueba: Once all connections are secure, open seacocks and restore power. Test the flush system for proper operation and check for any leaks.
Figura 4: Example Installation of the SFMTP1-04 Pump on a Marine Toilet.
Figura 5: detallada View of the SFMTP1-04 Pump Unit.
Instrucciones de funcionamiento
The SEAFLO SFMTP1-04 pump is designed for efficient waste discharge in marine electric toilet systems. Its operation is typically integrated with the toilet's flush control mechanism.
- Enrojecimiento: Activate the toilet's flush button or lever. The pump will engage to macerate and discharge waste.
- Funcionamiento silencioso: This upgraded pump is engineered for reduced noise during operation, enhancing comfort onboard.
- Efficient Discharge: The pump provides a high flow rate of 25 GPM (95 LPM) for effective and clog-free waste removal.
- Suministro de agua: Ensure an adequate water supply to the toilet for proper flushing.
- Run Dry Protection: The pump is thermally protected. Avoid prolonged dry running, which can cause damage.
Mantenimiento
Regular maintenance ensures the longevity and optimal performance of your SEAFLO SFMTP1-04 flush pump.
- Inspección regular: Inspeccione periódicamente todas las conexiones de plomería para detectar fugas y asegúrese de que las conexiones eléctricas sean seguras y libres de corrosión.
- Limpieza: Keep the pump area clean and free from debris.
- Joker Valve Check: The joker valve is crucial for preventing backflow. Inspect it periodically for wear or blockages and replace if necessary.
- Winterización: In freezing climates, ensure the pump and associated plumbing are properly winterized to prevent damage from ice expansion. Follow standard marine winterization procedures, typically involving flushing with non-toxic antifreeze.
- Comprobación del impulsor: While the impeller is stainless steel, inspect it during routine maintenance for any signs of wear or damage, especially if performance degrades.
Solución de problemas
If you encounter issues with your SEAFLO SFMTP1-04 pump, refer to the following common troubleshooting steps:
| Problema | Posible causa | Solución |
|---|---|---|
| La bomba no funciona | No power; Blown fuse; Loose wiring connection; Motor fault. | Check power supply; Inspect and replace fuse (25A); Secure all electrical connections; If motor fault, contact support. |
| Low flow or poor discharge | Clogged intake/discharge line; Worn impeller; Blocked joker valve; Insufficient water supply. | Clear any blockages in plumbing; Inspect and replace impeller if worn; Clean or replace joker valve; Ensure adequate water supply to the toilet. |
| Pump runs continuously or cycles | Leak in discharge line; Faulty joker valve; Air leak in intake. | Inspect all plumbing for leaks and tighten connections; Replace joker valve; Check intake lines for air leaks. |
| Ruido o vibración excesivos | Loose mounting; Debris in pump; Worn bearings. | Tighten mounting hardware; Inspect pump for foreign objects; If bearings are worn, contact support. |
If these steps do not resolve the issue, please contact SEAFLO customer support.
Información de garantía
The SEAFLO SFMTP1-04 Quiet-Flush Marine Toilet Flush Pump is backed by SEAFLO's Garantía limitada de 4 año. This warranty covers defects in materials and workmanship under normal use and service. For full details regarding warranty terms, conditions, and claim procedures, please refer to the official SEAFLO warranty documentation or contact SEAFLO customer support.
Atención al cliente
For technical assistance, warranty claims, or to purchase replacement parts, please contact SEAFLO customer support. Have your product model number (SFMTP1-04) and purchase date available when contacting support.
You can find contact information on the official SEAFLO websitio o a través de su minorista de productos.
