LEKATO FP-10 88-Key Foldable Digital Piano Instruction Manual

1. Introducción

Gracias por la compraasing the LEKATO FP-10 88-Key Foldable Digital Piano. This portable digital piano is designed for musicians of all levels, offering a full 88-key experience in a compact, travel-friendly design. This manual provides essential information for setting up, operating, and maintaining your instrument to ensure optimal performance and longevity.

Lea este manual detenidamente antes de utilizar el producto y consérvelo para futuras consultas.

Figure 1: LEKATO FP-10 88-Key Foldable Digital Piano Overview

2. Contenido del paquete

Asegúrese de que todos los artículos estén presentes en el paquete:

• LEKATO FP-10 88-Key Foldable Digital Piano
• Atril
• Bolsa de transporte protectora
• Adaptador de corriente
• Cable USB
• Pedal de sustain
• Manual de usuario (este documento)
• Pegatinas

Figura 2: Accesorios incluidos

3. Características del producto

• 88-Key Foldable Design: Lightweight (2.9kg / 6.3 lbs) and easily folds for portability. Extended length: 125.5cm (49.4 inches), folded length: 62.5cm (24.6 inches).
• Conectividad versátil: Integrated Bluetooth for music applications and USB-MIDI for Digital Audio Workstations (DAW). Supports audio input and external headphones.
• Rich Sound and Functions: Features 128 rhythms, 128 tones, 21 demo songs, automatic chord, transpose, recording, metronome, and dual keyboard mode.
• Teclas responsivas: Wood grain design with high-speed rebound keys for an authentic playing feel.
• Interfaz fácil de usar: Quick function buttons for convenient mode adjustment and function switching.
• Batería de larga duración: Approximately 10 hours of operation on a full charge.

Figura 3: Características claveview

4. Configuración

4.1 Despliegue del piano

1. Coloque el piano plegado sobre una superficie plana y estable.
2. Gently unfold the two halves of the keyboard until they are fully extended and locked into place. Ensure the locking mechanism is secure.

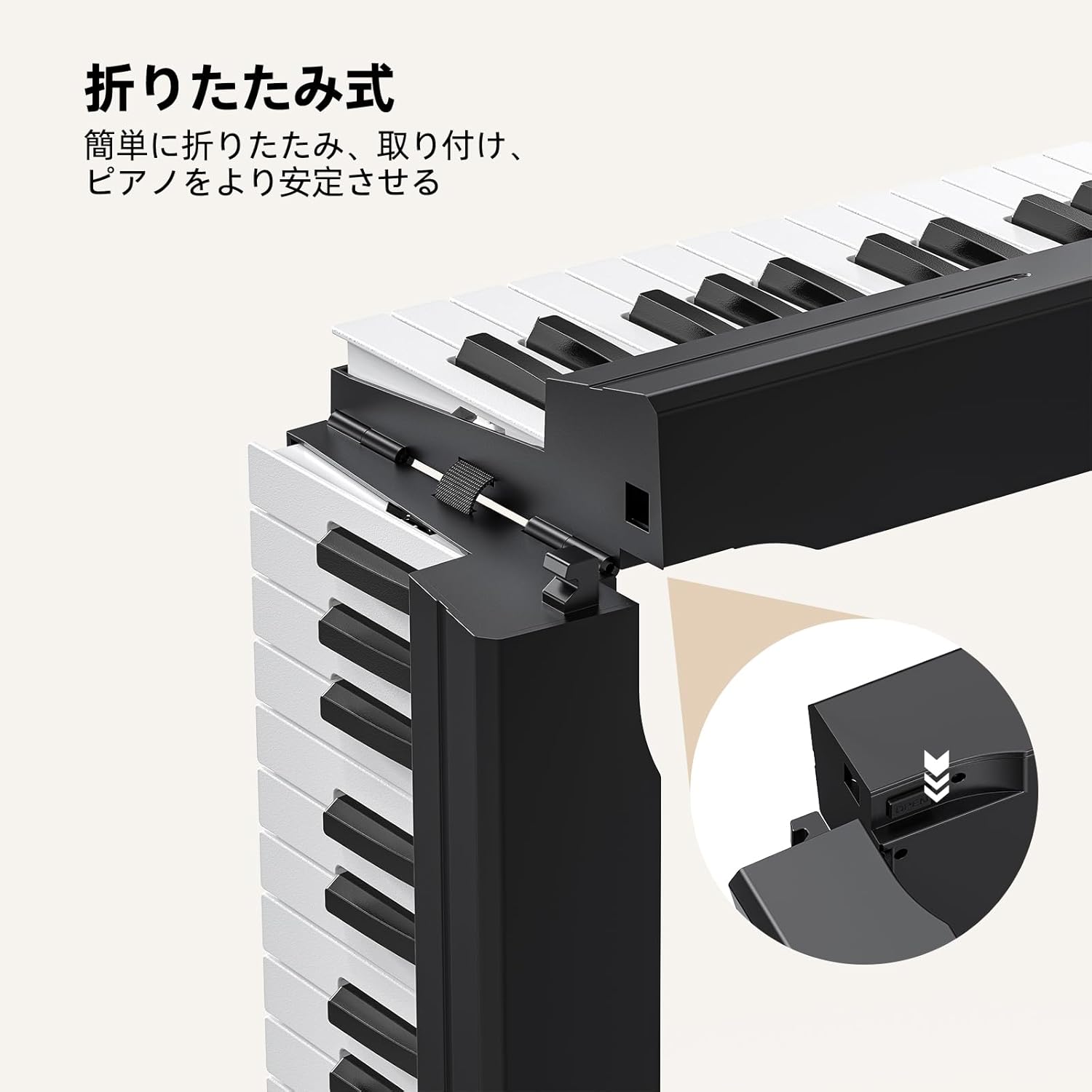

Figure 4: Unfolding Mechanism

4.2 Power Connection and Initial Charge

Connect the power adapter to the DC IN port on the piano and plug it into a wall outlet. For the first use, charge the piano for at least 6 hours. Subsequent full charges typically take about 4 hours.

Figure 5: Power and Connectivity Ports

4.3 Conexión del pedal de sustain

Plug the included sustain pedal into the dedicated sustain pedal input port on the piano.

5. Instrucciones de funcionamiento

5.1 Encendido y apagado

Locate the power switch on the piano. Slide it to the "ON" position to power on the instrument. Slide it to "OFF" to power off.

5.2 Panel de control terminadoview

The control panel features various buttons for selecting tones, rhythms, demo songs, and adjusting other functions. Refer to the detailed diagram below for button identification.

Figura 6: Panel de control

5.3 Ajuste del volumen

Use the dedicated volume buttons (usually labeled "Vol+" and "Vol-") on the control panel to adjust the master volume of the piano.

5.4 Key Touch Sensitivity

The keys are designed with touch sensitivity, meaning the volume and timbre change based on how hard you press them. This allows for expressive playing. The piano features a wood grain design and high-speed rebound keys for an authentic feel.

Figure 7: Key Touch Sensitivity

6. Conectividad

6.1 Conexión Bluetooth

The FP-10 features integrated Bluetooth for wireless connection to music applications on your smartphone, tablet, or computer. This allows for interactive learning and practice.

1. Turn on the piano and activate Bluetooth on your device.
2. Buscar "GZUT-MUSIC" or "GZUT-MIDI" in your device's Bluetooth settings and connect. "GZUT-MUSIC" connects the piano as a Bluetooth speaker, while "GZUT-MIDI" connects it for MIDI data transfer with music apps.
3. Once connected, you can use compatible music applications for learning or playback.

Figura 8: Conectividad Bluetooth

6.2 USB-MIDI Port

The USB-MIDI port allows you to connect the piano to a computer for use with Digital Audio Workstations (DAW) or other music software. Use the provided USB cable for connection.

6.3 salida de auriculares

For silent practice, connect standard headphones to the headphone jack. The piano's internal speakers will be muted automatically.

Figure 9: Headphone Use

7. Funciones

The FP-10 offers a variety of functions to enhance your playing and learning experience.

• Tones (128 options): Select from a wide range of instrument sounds. Use the "Tone+" and "Tone-" buttons to cycle through available tones.
• Rhythms (128 options): Choose from various rhythmic accompaniments. Use the "Rhythm+" and "Rhythm-" buttons to select a rhythm.
• Demo Songs (21 options): Play pre-recorded demo songs for enjoyment or learning. Use the "Demo" button to start/stop and cycle through songs.
• Automatic Chord: Engages automatic chord accompaniment based on your playing.
• Transponer: Adjust the pitch of the entire keyboard up or down.
• Grabación: Record your performances. Consult the control panel for specific record/playback buttons.
• Metrónomo: Provides a steady beat for practice. Adjust tempo using dedicated buttons.
• Modo de teclado dual: Splits the keyboard into two identical sections, allowing two players to play simultaneously or for a teacher and student to play together.

Figure 10: Dual Keyboard Mode

Figure 11: Rich Tones and Rhythms

8. Carga y batería

The LEKATO FP-10 is equipped with a rechargeable battery for portable use. A full charge provides approximately 10 hours of playing time.

• Primer cargo: For optimal battery health, charge the piano for at least 6 hours before its first use.
• Carga estándar: Subsequent full charges typically take about 4 hours.
• Indicador de carga: The display or an indicator light will show the charging status.

Figura 12: Duración de la batería de 10 horas

9. Mantenimiento

• Limpieza: Use a soft, dry cloth to clean the surface of the piano. Do not use abrasive cleaners or solvents.
• Almacenamiento: When not in use, fold the piano and store it in the protective carry bag in a cool, dry place away from direct sunlight and extreme temperatures.
• Manejo: Evite dejar caer el piano o someterlo a impactos fuertes.

10. Solución de problemas

11. Especificaciones

• Modelo: FP-10 (BC3359)
• Llaves: 88, semi-weighted with wood grain texture
• Tonos: 128
• Ritmos: 128
• Canciones de demostración: 21
• Conectividad: Bluetooth, USB-MIDI, Audio Input, Headphone Output
• Duración de la batería: Aproximadamente 10 horas
• Peso: 2.9 kg (6.3 libras)
• Longitud extendida: 125.5 cm (49.4 pulgadas)
• Longitud plegada: 62.5 cm (24.6 pulgadas)

12. Garantía y soporte

The LEKATO FP-10 Digital Piano comes with a 1-year warranty from the date of purchase. If you encounter any quality issues with the product, exchanges are possible within the warranty period.

For any questions, concerns, or support needs, please contact our customer service. Refer to your purchase documentation for contact details.

13. Vídeo de demostración del producto

Watch this video for a demonstration of the LEKATO FP-10's features and sound capabilities.
