Manual del usuario de la multiherramienta con llave de trinquete ajustable NexTool W4

1. Introducción y másview

The NexTool W4 Adjustable Ratchet Wrench Multitool is a versatile 11-in-1 foldable EDC (Everyday Carry) tool designed for a wide range of tasks, from outdoor activities like camping and hiking to home DIY projects and emergency repairs. Crafted with durable materials, it integrates essential tools including pliers, a knife, a saw, and a screwdriver, with a unique adjustable ratchet wrench mechanism for enhanced functionality.

Figure 1: The NexTool W4 Multitool and its included nylon carrying pouch.

2. Características principales

• Funcionalidad 11 en 1: Integrates an adjustable ratchet wrench, pliers (needle nose, regular, wire cutters), knife, saw, dual-head screwdriver (Phillips and flat-head), and metal file.
• Adjustable Ratchet Wrench: Features a unique ratcheting mechanism that allows for continuous tightening or loosening without needing to remove and reposition the wrench. Includes a lock/unlock feature for the wrench head.
• Construcción duradera: Made from 30Cr13 stainless steel for the main body and 8Cr14Mov steel for the knife blade, ensuring strength, corrosion resistance, and longevity.
• Spring-Loaded Pliers: Provides powerful grip and cutting capabilities with replaceable wire cutter blades.
• Compacto y portátil: Foldable design with an ergonomic grip, weighing approximately 11 ounces (313 grams), making it easy to carry in its durable nylon pouch.
• Mecanismo de bloqueo de seguridad: Ensures tools, especially the knife blade, are securely locked in place during use and require unlocking before folding.

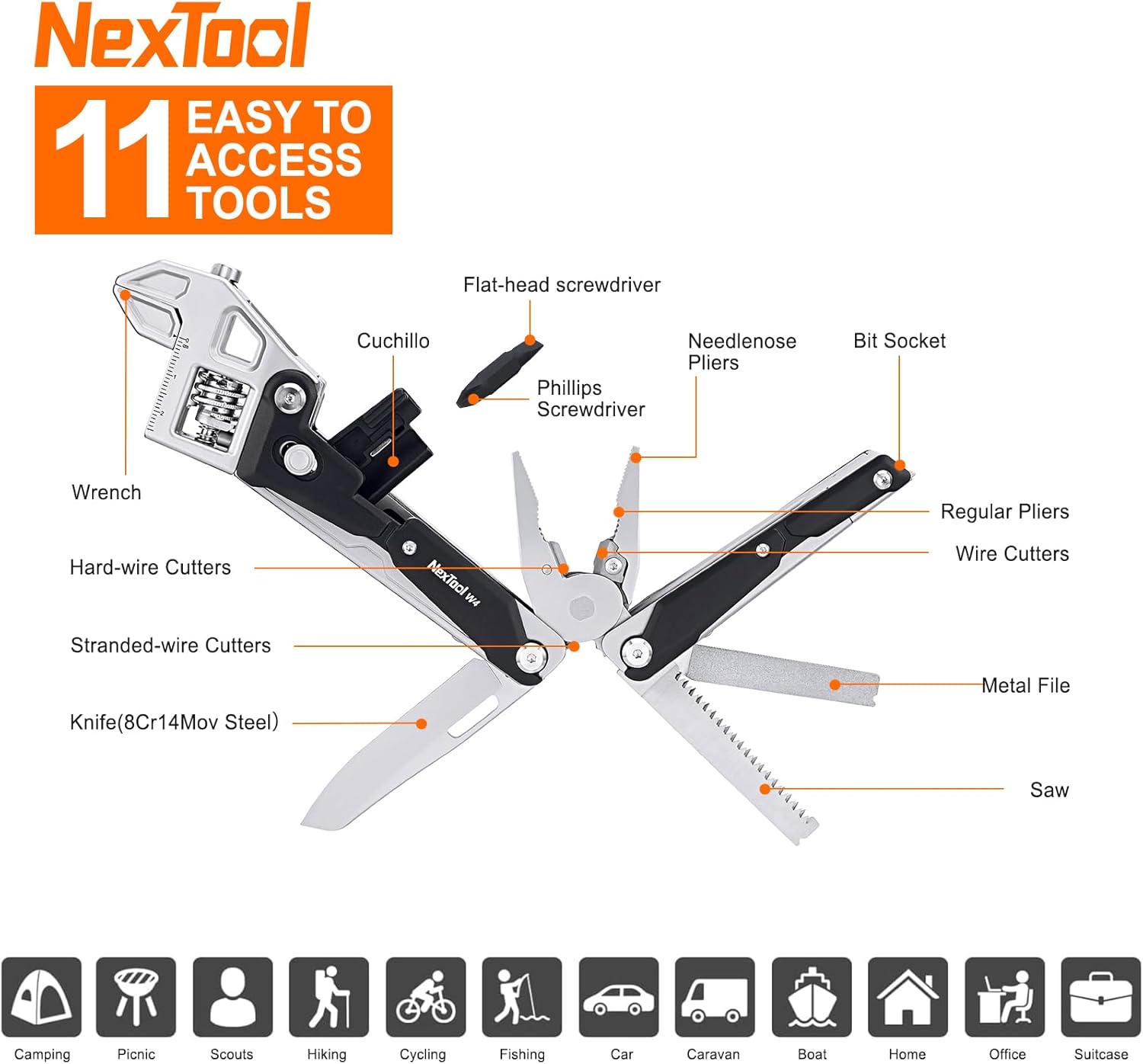

Figura 2: Sobreview of the 11 accessible tools integrated into the NexTool W4 Multitool.

3. Configuración

The NexTool W4 Multitool comes pre-assembled and ready for use. Before first use, and periodically thereafter, perform the following checks:

1. Desembalaje: Carefully remove the multitool from its packaging. A nylon storage case is included for convenient carrying and protection.
2. Inspección inicial: Examine all components for any signs of damage or loose parts. Ensure all tools fold and unfold smoothly.
3. Familiarización: Practice opening and closing each tool to understand its deployment and locking mechanism. Pay particular attention to the safety lock for the knife blade.
4. Seguridad ante todo: Always handle sharp tools like the knife and saw with extreme care. Keep fingers clear of moving parts when opening or closing tools.

4. Instrucciones de funcionamiento

4.1. Adjustable Ratchet Wrench

The adjustable wrench features a unique ratcheting function for efficient tightening and loosening of bolts and nuts.

1. Deploying the Wrench: Unfold the multitool to access the wrench component.
2. Ajuste de la apertura de la mandíbula: Use the flexible adjusting knob (worm gear) to set the desired jaw opening size to fit the bolt or nut.
3. Engaging Ratchet Mode: Locate the lock/unlock switch on the wrench head. Slide it to the "unlock" position to enable the ratcheting function. This allows the wrench head to tilt slightly, enabling the ratcheting action.
4. Apretar/Aflojar:
   • For tightening, apply force in the tightening direction. When returning the handle, the ratchet mechanism will allow the wrench to slip back without disengaging from the fastener.
   • For loosening, apply force in the loosening direction. The same ratcheting action applies.
5. Locking the Wrench: After use, slide the lock/unlock switch to the "lock" position to secure the wrench head and prevent accidental movement.

Figure 3: Step-by-step guide for operating the adjustable ratchet wrench, highlighting its unique ratcheting feature.

4.2. Pliers (Needle Nose, Regular, Wire Cutters)

The spring-loaded pliers are accessed by unfolding the main body of the multitool.

• Despliegue: Hold the multitool firmly and unfold the two halves to reveal the pliers. The spring-loaded design will keep them open for easy use.
• Pinzas de punta de aguja: Ideal for precision work, gripping small objects, or bending wires in tight spaces.
• Alicates regulares: Suitable for general gripping, holding, and turning tasks.
• Cortadores de alambre: Located at the base of the pliers' jaws. Use the inner cutters for standard wires and the outer, more robust section for hard wires. The blades are replaceable for extended tool life.

Figura 4: detallada view of the pliers' various functions, including replaceable wire cutters.

4.3. Knife and Saw

Both the knife and saw blades are made from durable steel and feature a safety locking mechanism.

• Deploying Blades: Carefully slide out the desired blade (knife or saw) from its housing. Ensure it clicks into place, indicating the safety lock is engaged.
• Knife Blade (8Cr14Mov Steel): Suitable for cutting, slicing, and general utility tasks.
• Hoja de sierra: Designed for cutting wood, plastic, or other soft materials.
• Mecanismo de bloqueo de seguridad: Before closing the blades, locate the liner lock (typically a metal tab at the base of the blade) and push it aside to disengage the lock. Carefully fold the blade back into the handle.

Figure 5: The knife blade can be deployed with one hand and features a crucial safety locking mechanism.

4.4. Screwdriver (Dual-Head)

The multitool includes a hidden dual-head screwdriver bit holder for Phillips and flat-head screws.

1. Accessing the Bit Holder: Locate the small bit holder compartment, usually near the base of one of the handles. Open the cover to reveal the screwdriver bit.
2. Usando el destornillador: The bit is reversible, offering both Phillips and flat-head tips. Insert the desired tip into the bit socket.
3. Solicitud: Use for tightening or loosening screws. The compact design allows access to tight spaces and different orientations.

Figure 6: Guide to utilizing the concealed dual-head screwdriver for various fastening needs.

4.5. Otras herramientas

• Metal File: Useful for smoothing rough edges or light filing tasks.

5. Mantenimiento

Proper maintenance will ensure the longevity and optimal performance of your NexTool W4 Multitool.

• Limpieza: After each use, especially if exposed to dirt, dust, or moisture, clean the multitool with a damp cloth. For stubborn grime, use a small brush (like a toothbrush) and mild soap. Ensure all parts are thoroughly dried to prevent rust.
• Lubricación: Periodically apply a small amount of light machine oil to the pivot points of the pliers, knife, saw, and wrench mechanism. This will ensure smooth operation and prevent stiffness. Wipe off any excess oil.
• Afilado: The knife and saw blades may become dull with regular use. Sharpen them using appropriate sharpening tools and techniques. If unsure, seek professional sharpening services.
• Almacenamiento: Store the multitool in its provided nylon pouch when not in use. Keep it in a dry environment to prevent corrosion.

6. Solución de problemas

Most issues with the NexTool W4 Multitool can be resolved with simple steps.

7. Especificaciones

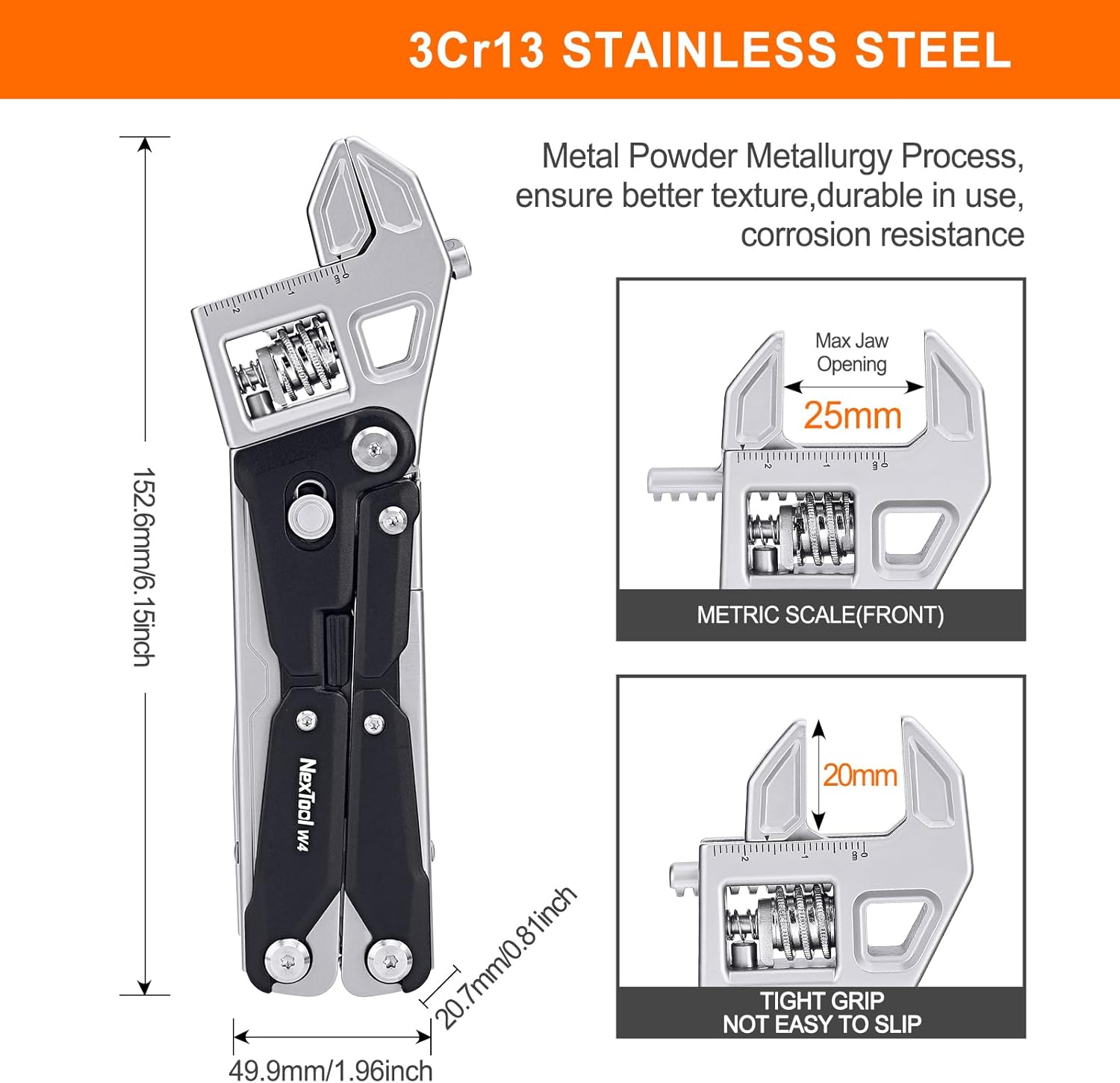

Figure 7: Key dimensions and material composition of the NexTool W4 Multitool.

8. Garantía y soporte

NexTool stands behind the quality of the W4 Multitool with lifetime support and a 30-day hassle-free return policy. For any questions, concerns, or support needs, please refer to the contact information provided with your purchase or visit the official NexTool websitio.

Your satisfaction is our priority, and we are committed to providing excellent customer care for your multipurpose tool.
