1. Introducción
This manual provides comprehensive instructions for the STEREN 10-inch Wi-Fi Digital Photo Frame, model DFR-101. This device allows you to display photos and videos, share memories with family and friends via Wi-Fi, and enjoy a dynamic visual experience. Please read this manual thoroughly before operating the device to ensure proper use and optimal performance.
Imagen 1.1: Frente view of the STEREN 10-inch Wi-Fi Digital Photo Frame displaying a family photo.
2. Contenido del paquete
Verifique que todos los artículos estén presentes en el paquete:
- STEREN 10-inch Wi-Fi Digital Photo Frame (DFR-101)
- Power Adapter (5 Vcc 2 A)
- Manual de usuario (este documento)
3. Características del producto
The STEREN DFR-101 Digital Photo Frame offers a range of features designed for ease of use and enhanced media sharing:
- Pantalla táctil de 10 pulgadas: Enjoy a clear and vibrant visual experience with intuitive navigation.
- Conectividad Wi-Fi: Connect to your home network for seamless photo and video sharing.
- Integración de la aplicación Frameo: Easily send photos and videos directly from your smartphone to the frame using the Frameo app (available on Play Store and App Store).
- Uso compartido entre múltiples usuarios: Share control of the photo frame with friends and family, allowing multiple users to send media.
- Notificaciones instantáneas: Receive real-time notifications when new content is shared to the frame.
- Versatile Media Transfer: Import and export photos and videos via microSD card (up to 128 GB) or by connecting to a computer via the micro USB port.
- Giroscopio integrado: Automatic image orientation adjustment for both vertical and horizontal display.
- Altavoces incorporados: Enjoy video playback with accompanying audio.
- Additional Display Information: View date, time, and current weather on screen.
- Ranura de seguridad: Compatible with a security lock for added protection in public or office environments.
- Montaje flexible: Can be placed on a desk or mounted on a wall.
Image 3.1: Visual representation of the digital photo frame's main features.
4. Configuración
4.1 Conexión de alimentación
- Conecte el adaptador de corriente al puerto DC IN en la parte posterior del marco de fotos.
- Conecte el adaptador de corriente a una toma de corriente estándar.
- The frame will automatically power on.
4.2 Configuración inicial y conexión Wi-Fi
- Upon first power-on, follow the on-screen prompts to select your language and time zone.
- The frame will then guide you through connecting to a Wi-Fi network. Select your network from the list and enter the password.
- Ensure a stable Wi-Fi connection for optimal performance and content sharing.
4.3 Instalación y emparejamiento de la aplicación Frameo
- Download the 'Frameo' app from the Google Play Store (for Android) or Apple App Store (for iOS) on your smartphone or tablet.
- Abra la aplicación Frameo y cree una cuenta si no tiene una.
- On your digital photo frame, navigate to the 'Add Friend' or 'Connect' section to generate a unique code.
- In the Frameo app on your smartphone, enter this code to pair your device with the photo frame.
Image 4.1: Sharing photos and videos to the frame using the Frameo app.
5. Instrucciones de funcionamiento
5.1 Uso de la pantalla táctil
The frame features a responsive touchscreen for easy navigation. Tap icons to select options, swipe to browse photos, and pinch to zoom (if supported by the software).
Image 5.1: The 10-inch touchscreen display with high-definition resolution.
5.2 Sending Photos and Videos via Frameo App
- Abra la aplicación Frameo en su teléfono inteligente emparejado.
- Selecciona las fotos o vídeos que deseas enviar.
- Choose your digital photo frame as the recipient.
- The selected media will be transferred to the frame via Wi-Fi and displayed.
5.3 Sharing Control with Family and Friends
You can invite others to send photos and videos to your frame:
- On the photo frame, go to the 'Settings' menu and find the 'Manage Friends' or 'Add User' option.
- Generate a unique sharing code.
- Share this code with family or friends. They can enter it into their Frameo app to connect to your frame and send content.
Image 5.2: Multiple users can share content to the digital photo frame.
5.4 Transferring Media via microSD Card or Micro USB
For offline transfer or larger media collections:
- tarjeta micro SD: Insert a formatted microSD card (up to 128 GB, Fat32 / exFAT) into the designated slot on the back of the frame. You can then import or export media using the frame's menu.
- Micro USB: Connect the frame to a computer using a micro USB cable. The frame will appear as a removable storage device, allowing you to drag and drop files.

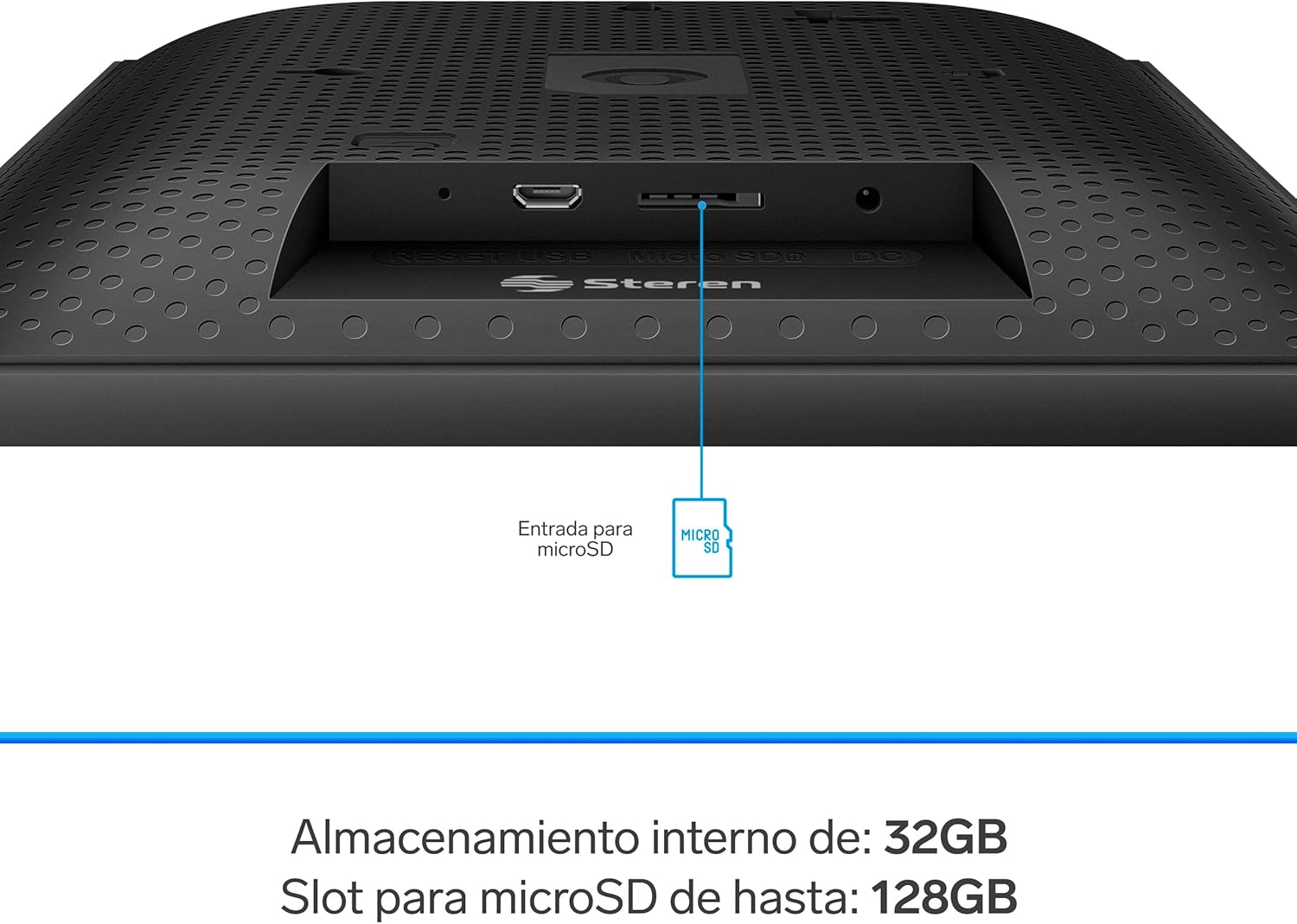

Image 5.3: Rear ports including microSD slot, micro USB, and DC IN.
5.5 Automatic Orientation
The integrated gyroscope automatically adjusts the display orientation of your photos and videos, ensuring they are always shown correctly whether the frame is positioned vertically or horizontally.
Image 5.4: Automatic image rotation for vertical or horizontal display.
5.6 Reproducción de audio
The built-in speakers allow for audio playback when displaying videos, providing a complete multimedia experience.
5.7 Date, Time, and Weather Display
The frame can display the current date, time, and local weather information. This feature can be enabled or disabled in the settings menu.
5.8 opciones de montaje
The digital photo frame offers versatile placement options:
- Colocación del escritorio: Use the integrated stand to place the frame on any flat surface.
- Montaje en pared: The frame includes mounting points on the back for secure wall installation.
Image 5.5: The frame can be placed on a table or mounted on a wall.
6. Mantenimiento
- Limpieza: Utilice un paño suave y seco para limpiar la pantalla y el marco. No utilice limpiadores líquidos ni productos abrasivos.
- Actualizaciones de software: Compruebe periódicamente si hay actualizaciones de software a través del menú de configuración del marco para garantizar un rendimiento óptimo y acceso a nuevas funciones.
- Almacenamiento: Cuando no utilice el marco durante períodos prolongados, guárdelo en un lugar fresco y seco, alejado de la luz solar directa.
7. Solución de problemas
Si tiene problemas con su marco de fotos digital, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| El marco no se enciende. | Adaptador de corriente no conectado o defectuoso. | Asegúrese de que el adaptador de corriente esté bien conectado al marco y a una toma de corriente que funcione. Pruebe con otra toma de corriente. |
| No se puede conectar al wifi. | Contraseña incorrecta, señal débil o problema con el enrutador. | Verifique la contraseña del Wi-Fi. Acerque el marco al router. Reinícielo. |
| Photos/videos not appearing from Frameo app. | Frame not paired, app not connected, or network issue. | Ensure the frame is correctly paired with the app. Check Wi-Fi connection on both devices. Restart the app. |
| Images are blurry or low quality. | Low resolution source images. | Ensure you are uploading high-resolution images to the frame. |
| El marco no responde. | Fallo temporal del software. | Desconecte el adaptador de corriente, espere 10 segundos y luego vuelva a conectarlo para reiniciar el marco. |
8. Especificaciones
Detailed technical specifications for the STEREN DFR-101 Digital Photo Frame:
- Entrada de energía: 5 Vcc 2 A
- Tamaño de pantalla: 254 mm (10 pulgadas)
- Resolución de pantalla: 1280 x 800 píxeles
- Almacenamiento interno: 32 GB
- microSD Slot: Supports up to 128 GB (Fat32 / exFAT)
- Formatos de imagen: PNG, JPG
- Formatos de vídeo: MP4
- Frecuencia Wi-Fi: 2.4 GHz
- Wi-Fi estándar: IEEE 802.11 b/g/n
- Entrada del adaptador de corriente: 100 – 240 Vca 50/60 Hz 0.35 A
- Salida del adaptador de corriente: 5 Vcc 2 A
- Dimensiones del producto: 26.5 x 0.9 x 2.51 cm
- Peso del producto: 800 gramos
Image 8.1: Physical dimensions of the digital photo frame.
9. Información de seguridad
- No exponga el dispositivo al agua ni a la humedad excesiva.
- Evite colocar el dispositivo cerca de fuentes de calor o bajo la luz solar directa.
- No intente desmontar ni reparar el dispositivo usted mismo. Consulte a personal de servicio técnico cualificado.
- Utilice únicamente el adaptador de corriente proporcionado.
- Mantener fuera del alcance de los niños.
10. Garantía y soporte
For warranty information, please refer to the warranty card included with your product or visit the official STEREN website. For technical support or further assistance, please contact STEREN customer service through their official channels.
