Retekess TA008 / TA005P Wireless TV Headphones Instruction Manual

1. Introducción

Thank you for choosing the Retekess TA008 / TA005P Wireless TV Headphones. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new headphones. Designed with seniors in mind, these headphones offer clear sound quality and an uninterrupted listening experience for television or surrounding sounds.

2. Producto terminadoview

2.1 Características principales

• Calidad de sonido estéreo: Delivers rich, layered audio with clear highs and impactful lows.
• Diseño cómodo: Features a retractable headband for adjustable fit, soft earmuffs, and soft silicone material for extended wear.
• Amplia compatibilidad: Supports optical, AUX (3.5mm), and RCA audio connections for most TVs.
• Función de silencio: Allows flexible control over audio output, enabling users to mute or restore sound as needed.
• Alcance inalámbrico extendido: Operates up to 100 feet (30 meters) from the transmitter.
• Batería de larga duración: Built-in 600mAh rechargeable battery provides up to 10 hours of continuous use.
• Voice Assistance Mode: One-touch button to easily switch to voice assistance mode, enhancing communication.

2.2 Componentes

The Retekess TA008 / TA005P system includes:

• Wireless Headphones (TA005P)
• Transmisor inalámbrico (TX)
• Adaptador de corriente para transmisor
• Audio Cables (Optical, 3.5mm AUX, RCA)
• Cable de carga USB para auriculares

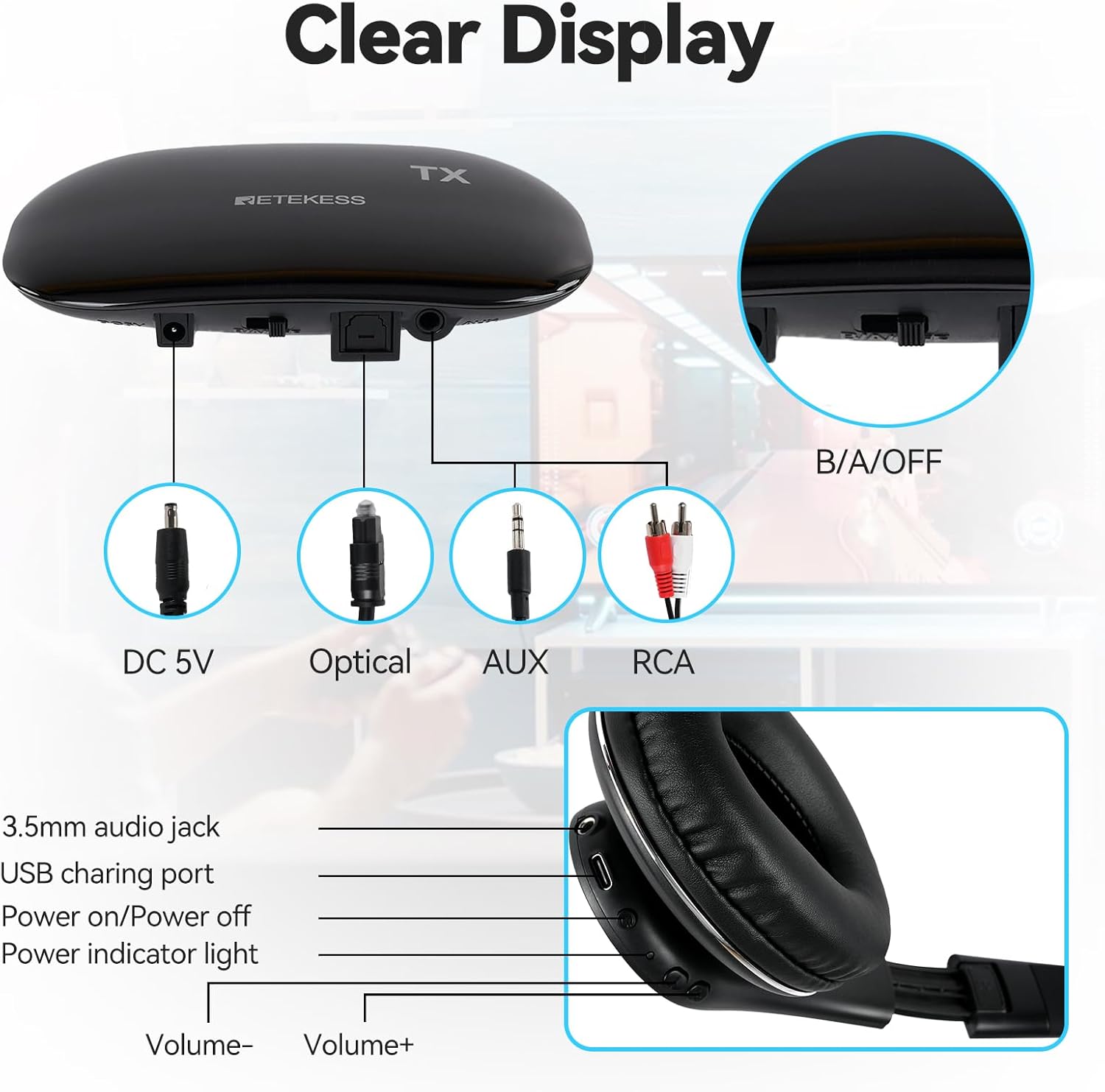

Imagen: Transmitter ports and headphone controls. The transmitter features DC 5V power input, Optical audio input, AUX (3.5mm) audio input, and RCA audio input. The headphones include a 3.5mm audio jack, USB charging port, Power on/off button, Power indicator light, Volume- button, and Volume+ button.

Imagen: Comfortable design features. This image illustrates the retractable head beam for adjustable fit, soft earmuffs for comfort, and the overall soft silicone material of the headphones.

Imagen: Good sound quality. This image visually represents the stereo sound quality and the presence of high and low bass, indicating a comprehensive audio experience.

3. Instrucciones de configuración

3.1 Conexión del transmisor a su televisor

The transmitter supports multiple audio input methods. Choose the one compatible with your TV.

1. Conexión de energía: Connect the power adapter to the DC 5V port on the transmitter and plug it into a power outlet.
2. Audio Connection (Choose ONE):
   • Audio digital óptico: Use the optical cable to connect the transmitter's OPTICAL IN port to your TV's optical audio output. This is recommended for modern TVs.
   • Audio auxiliar de 3.5 mm: Use the 3.5mm audio cable to connect the transmitter's AUX IN port to your TV's 3.5mm audio output (headphone jack).
   • Audio RCA: Use the RCA audio cable (red and white plugs) to connect the transmitter's RCA IN ports to your TV's RCA audio output ports. This is common for older TVs.

Imagen: Wide compatibility and connection options. This diagram illustrates the audio output options from a TV (3.5mm/AUX, RCA, Optical) and how they connect to the transmitter. It also notes that the TV headset automatically identifies the sound source and is plug-and-play. If multiple sound sources are connected, the 3.5mm sound source cable will be prioritized.

3.2 Carga de los auriculares

Antes del primer uso, cargue completamente los auriculares.

1. Conecte el cable de carga USB al puerto de carga de los auriculares.
2. Conecte el otro extremo del cable USB a una fuente de alimentación USB (por ejemplo, puerto USB de computadora, adaptador de pared USB).
3. The power indicator light on the headphones will show charging status (refer to the indicator light section in the manual for details).

3.3 Emparejamiento (automático)

The headphones and transmitter are designed for automatic pairing. Once both are powered on and the transmitter is receiving an audio signal, the headphones should connect automatically. No manual pairing steps are typically required.

4. Instrucciones de funcionamiento

4.1 Encendido / Apagado

• Auriculares: Press and hold the Power button on the headphones until the indicator light illuminates (for power on) or turns off (for power off).
• Transmisor: The transmitter powers on automatically when connected to power.

4.2 Ajuste del volumen

Use the Volume+ and Volume- buttons located on the headphones to adjust the listening volume to your preference.

4.3 Función de silencio

The headphones feature a mute function. Press the dedicated mute button to temporarily silence the audio. Press it again to restore the sound.

4.4 Voice Assistance Mode

To activate the voice assistance mode:

1. Short press the large gray button labeled 'AMBIENCE' on the wireless TV headset.
2. This mode helps amplify surrounding sounds, improving daily communication.

Imagen: One-touch voice assistance mode. This image highlights the 'AMBIENCE' button on the headset, which allows users to easily switch to voice assistance mode to hear surrounding sounds clearly and improve communication.

5. Mantenimiento

• Limpie los auriculares y el transmisor con un paño suave y seco. No utilice limpiadores abrasivos ni disolventes.
• Evite exponer los dispositivos a temperaturas extremas, humedad o luz solar directa.
• Store the headphones and transmitter in a cool, dry place when not in use.
• No intente desmontar ni reparar los dispositivos usted mismo. Esto anulará la garantía.

6. Solución de problemas

• No Sound or Buzzing in the Headset:
  • Ensure the transmitter is properly connected to a power source and your TV's audio output.
  • Verify that the correct audio input is selected on your TV.
  • Verifique todas las conexiones de los cables para asegurarse de que estén seguras.
  • Ajuste el volumen tanto de los auriculares como del televisor.
  • If multiple sound sources are connected to the transmitter, the 3.5mm input takes priority. Ensure the desired source is active.
  • In some cases, the sound source may not broadcast when using the 3.5mm sound source cable, and the sound source can only be listened to through the headset; this is normal.
• Headphones Not Connecting:
  • Ensure both the headphones and transmitter are powered on.
  • Move the headphones closer to the transmitter to rule out range issues.
  • Power cycle both devices (turn off, then turn on again).
• Duración corta de la batería:
  • Asegúrese de que los auriculares estén completamente cargados antes de usarlos.
  • El rendimiento de la batería puede disminuir con el tiempo con el uso prolongado.

7. Especificaciones

• Modelo: TA005P
• Alcance inalámbrico: Hasta 100 pies (30 metros)
• Capacidad de la batería: 600mAh (Headphones)
• Duración de la batería: Hasta 10 horas de uso continuo
• Audio Inputs (Transmitter): Óptico, AUX de 3.5 mm, RCA
• Power Input (Transmitter): 5 V CC

Imagen: Working distance. This image shows the wireless range of the headphones and transmitter, indicating a wireless range of 100 feet (30.48 meters) for the headphones and a transmitter operating range of 98 feet (30 meters).

8. Garantía y soporte

Retekess products are designed for reliability and performance. For warranty information and technical support, please refer to the warranty card included with your purchase or visit the official Retekess webSitio web. Conserve su comprobante de compra para reclamaciones de garantía.

For further assistance, please contact Retekess customer service through the contact information provided on their official websitio o los canales de soporte de su minorista.
