Introducción
Thank you for choosing the Zanussi 86cm 5-Burner Built-in Gas Cooktop. This manual provides important information regarding the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before using the cooktop and keep them for future reference.
Información de seguridad
Your safety and the safety of others are paramount. This appliance is designed for domestic use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read all instructions thoroughly before using this appliance.
- Seguridad del gas: This cooktop features an integrated gas safety system. If a flame accidentally extinguishes during cooking, the gas supply to that burner will automatically shut off.
- Ventilación: Ensure adequate ventilation in the kitchen when the gas cooktop is in use.
- Instalación: La instalación debe ser realizada por un técnico calificado de acuerdo con las normas y regulaciones locales.
- Niños y mascotas: Mantenga a los niños y las mascotas alejados del aparato durante su funcionamiento.
- Materiales inflamables: No almacene ni utilice materiales inflamables cerca de la estufa.
Configuración e instalación
The Zanussi Built-in Gas Cooktop is designed for drop-in installation into a countertop. Due to the nature of gas appliances, professional installation is highly recommended to ensure safety and proper functioning.
- Desembalaje: Carefully remove the cooktop from its packaging. Inspect for any damage.
- Preparación de la encimera: Ensure the countertop opening dimensions match the cooktop's requirements. Refer to the detailed installation diagram provided with your appliance.
- Conexión de gas: Connect the cooktop to the natural gas supply using appropriate fittings and flexible hoses, ensuring all connections are leak-free.
- Conexión eléctrica: Connect the cooktop to a grounded electrical outlet for the integrated ignition system.
- Ventilación: Ensure proper ventilation is installed above the cooktop, such as a range hood.

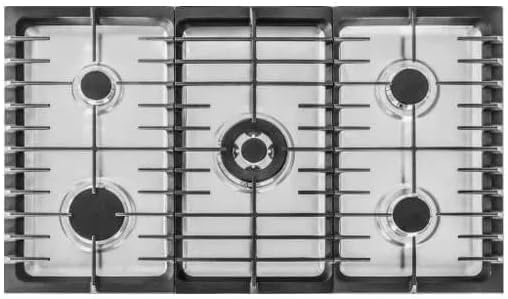

Image: The Zanussi 86cm 5-Burner Built-in Gas Cooktop, Model ZGG96624XA, showcasing its stainless steel surface and five burners with cast iron grates, ready for use in a modern kitchen setting.
Instrucciones de funcionamiento
This cooktop features five burners, including a powerful wok burner, and responsive control knobs for precise flame regulation.
- Encendiendo un quemador: To light a burner, press the corresponding control knob down firmly and turn it counter-clockwise to the maximum flame setting. Hold the knob down for a few seconds until the flame ignites and stabilizes.
- Ajuste de la llama: Once the burner is lit, you can adjust the flame intensity by turning the control knob between the maximum and minimum settings. The responsive knobs allow for precise temperature control.
- Quemador Wok: The powerful wok burner is designed for high-heat cooking, ideal for stir-frying or quickly boiling water. Use appropriate cookware for this burner.
- Cómo apagar un quemador: To turn off a burner, turn the control knob clockwise until it clicks into the 'off' position. Ensure the flame is completely extinguished.
- Función de temporizador: If equipped with a timer, refer to the specific instructions for setting and using the timer for cooking durations.
Mantenimiento y limpieza
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Zanussi cooktop.
- Limpieza diaria: After each use, allow the cooktop to cool completely. Wipe the stainless steel surface with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface.
- Rejillas de hierro fundido: The durable cast iron grates can be removed for cleaning. Wash them with warm soapy water and dry thoroughly to prevent rust.
- Tapas y anillos de quemador: Periodically remove and clean the burner caps and rings. Ensure they are dry and correctly positioned before re-igniting the burners.
- Derrames: Clean up spills immediately to prevent staining and residue buildup.
- Inspección: Regularly inspect the gas connections and hoses for any signs of wear or damage. If any issues are found, contact a qualified technician.
Solución de problemas
Antes de contactar con el servicio técnico, verifique los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| El quemador no se enciende | Sin suministro de gas, corte de electricidadtage, dirty burner cap/ring, ignition electrode fault. | Check gas valve, check power supply, clean burner components, contact service if problem persists. |
| La llama es débil o desigual | Clogged burner ports, incorrect burner cap placement. | Clean burner ports with a fine wire, ensure burner cap is seated correctly. |
| Se detectó olor a gas | Fuga de gas. | Immediately turn off gas supply, open windows, do not operate electrical switches, evacuate and contact gas company/qualified technician. |
| Cooktop makes clicking sound continuously | Moisture on ignition electrode, faulty ignition module. | Ensure burner components are dry, contact service if clicking continues. |
Presupuesto
Technical details for the Zanussi 86cm 5-Burner Built-in Gas Cooktop, Model ZGG96624XA.
| Característica | Detalle |
|---|---|
| Marca | Zanussi |
| Número de modelo | ZGG96624XA (Internal Model: 949750940) |
| Dimensiones del producto (Pr. x An. x Al.) | 10 cm x 86 cm x 9 cm (aproximado) |
| Tipo de instalación | Entrada sin cita previa |
| Características especiales | Auto Ignition, Flame Protection, Timer |
| Tipo de placa | Gas |
| Número de elementos calefactores | 5 |
| Color | Plata |
| Tipo de combustible | Gas natural |
| Material | Stainless Steel (Surface), Cast Iron (Grates) |
| Peso del artículo | 222 g (aproximadamente) |
Garantía y soporte
For warranty information, technical support, or service requests, please refer to the warranty card included with your product or visit the official Zanussi webSitio. Conserve su recibo de compra como comprobante de compra.
Información del contacto: Please refer to your local Zanussi service center details or the contact information provided in your product documentation.
