AM ARROWMAX Smart Mini Electric Engraving Pen & Carving Bits User Manual

1. Introducción

This manual provides essential instructions for the safe and effective use of your AM ARROWMAX Smart Mini Electric Engraving Pen and its accompanying carving bits. Please read this manual thoroughly before operating the device to ensure proper function and to prevent damage or injury. Keep this manual for future reference.

2. Producto terminadoview

2.1 Contenido del paquete

• AM ARROWMAX Smart Mini Electric Engraving Pen (SGS PRO)
• Cable de carga magnética
• 30 brocas para grabado
• 12 brocas para pulir
• Estuche de almacenamiento
• Manual de usuario

This image displays the complete AM ARROWMAX Smart Mini Electric Engraving Pen kit, including the pen, its protective case, a USB charging cable, a variety of engraving and polishing bits, and an illustration of its smart app connectivity.

2.2 componentes clave

Esta imagen proporciona una visión detallada view of the SGS MAX engraving pen, labeling its key components: the Magnetic Charging Port for easy charging, the Status Display showing battery, mode, and rotation direction, the Power Button for control, the durable Aluminium Alloy Body, and the Chuck for bit changes.

• Puerto de carga magnético: For convenient and secure charging of the device.
• Indicación de estado: Shows battery level, selected speed mode, and rotation direction.
• Botón de encendido: Controls power on/off and mode selection.
• Cuerpo de aleación de aluminio: Provides durability and a comfortable grip.
• Chuck: Securely holds engraving and polishing bits.

2.3 brocas para grabar y pulir

The kit includes a comprehensive set of 30 engraving bits and 12 polishing bits, designed for various materials and applications. These bits feature a 2.35mm shank for compatibility.

This image showcases the comprehensive set of 30 engraving bits and 12 polishing bits that come with the ARROWMAX engraving pen, designed for various crafting tasks.

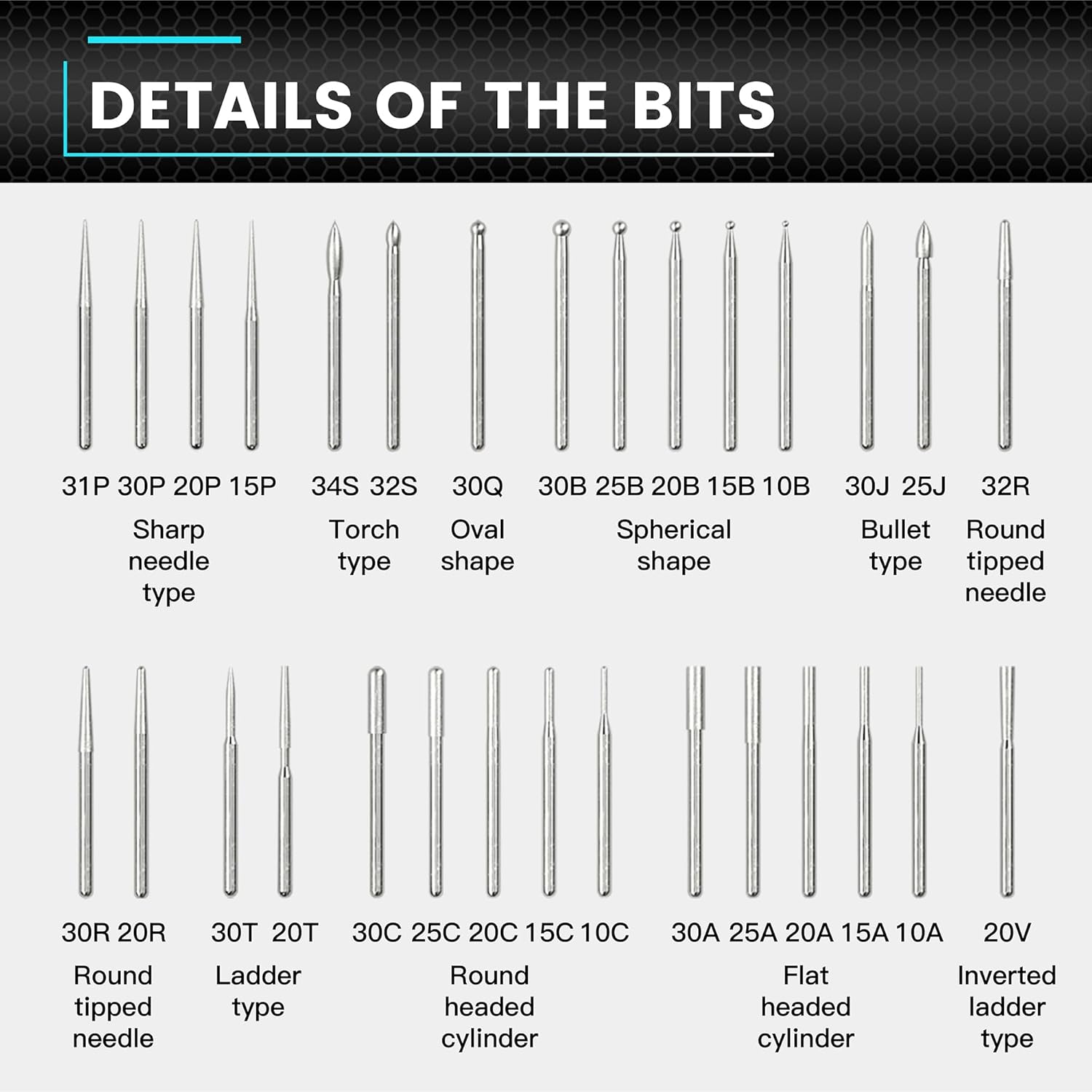

This detailed diagram categorizes and names various engraving bit types, including sharp needle, torch, oval, spherical, bullet, round tipped needle, ladder, round headed cylinder, flat headed cylinder, and inverted ladder types, providing clarity on their specific uses.

This image focuses on the construction of an engraving bit, emphasizing its Diamond Steel material for long life and precise cuts, and its 2.35mm shank with surface blasting for compatibility with most rotary tools.

3. Configuración

3.1 Carga del dispositivo

1. Connect the magnetic charging cable to the charging port on the engraving pen.
2. Connect the other end of the USB cable to a compatible 5V USB power adapter (not included).
3. The status display will indicate the charging progress. Ensure the device is fully charged before first use.

3.2 Attaching/Changing Bits

1. Ensure the engraving pen is powered off.
2. Gently insert the desired engraving or polishing bit into the chuck until it is seated firmly.
3. To remove a bit, pull it straight out from the chuck. No additional tools are required.

4. Instrucciones de funcionamiento

4.1 Encendido y apagado

Press and hold the Power Button for a few seconds to turn the device on or off.

4.2 Ajuste de los modos de velocidad

The engraving pen features 5 RPM modes for precise control:

This diagram illustrates the five adjustable speed modes of the engraving pen: 'A' for Auto Sensing (10000-30000 RPM), '1' for Low (15000 RPM), '2' for Medium (20000 RPM), '3' for High (25000 RPM), and '4' for Maximum (30000 RPM).

• Modo A (detección automática): Automatically adjusts speed between 10,000-30,000 RPM based on your twist angle.
• Modo 1 (Bajo): 15,000 RPM
• Modo 2 (Medio): 20,000 RPM
• Modo 3 (Alto): 25,000 RPM
• Mode 4 (Maximum): 30,000 RPM

To change the speed mode, short press the Power Button while the device is on. The status display will show the current mode.

4.3 Cambio de dirección de rotación

The device supports both forward and reverse rotation. To toggle the direction, press the dedicated direction button (if available, otherwise refer to the specific model's controls) or follow the instructions on the status display. This allows for greater flexibility in engraving and polishing tasks.

4.4 Engraving and Polishing Tips

• Utilice siempre protección ocular adecuada durante el trabajo.
• Select the correct bit for your material and desired effect.
• Start with a lower speed setting and gradually increase as needed.
• Apply light, consistent pressure. Excessive force can damage the bit or the workpiece.
• Practice on scrap material before working on your final project.
• Ensure your workpiece is securely held to prevent movement during operation.

5. Mantenimiento

5.1 Limpieza del dispositivo

• Asegúrese de que el dispositivo esté apagado y desconectado del cargador antes de limpiarlo.
• Wipe the body of the engraving pen with a soft, dry cloth.
• Use a small brush or compressed air to remove dust and debris from the chuck area.
• No utilice productos químicos agresivos ni limpiadores abrasivos.

5.2 Cuidado de bits

• Clean bits after each use to remove material residue.
• Store bits in their designated case to prevent damage and loss.
• Replace worn or damaged bits to maintain optimal performance and safety.

5.3 Cuidado de la batería

• Evite descargar completamente la batería con frecuencia.
• Guarde el dispositivo en un lugar fresco y seco cuando no esté en uso.
• Si va a almacenarla durante un período prolongado, cargue la batería aproximadamente al 50 % cada pocos meses.

6. Solución de problemas

6.1 El dispositivo no se enciende

• Ensure the battery is charged. Connect the device to the charger and check the status display.
• Press and hold the Power Button firmly for a few seconds.

6.2 Bit Not Holding Securely

• Asegúrese de que la broca esté completamente insertada en el mandril.
• Check if the bit shank is damaged or bent. Use only bits with a 2.35mm shank.

6.3 Poor Engraving/Polishing Performance

• Verify that the correct speed mode is selected for the material.
• Check if the bit is worn or dull. Replace if necessary.
• Ensure you are applying appropriate pressure; too much or too little can affect results.

7. Especificaciones

8. Información de seguridad

Always adhere to the following safety guidelines when using the engraving pen:

• Protección ocular: Utilice siempre gafas de seguridad o antiparras para proteger sus ojos de los residuos que salen volando.
• Área de trabajo: Ensure your work area is well-lit and well-ventilated. Keep it clean and free of clutter.
• Pieza de trabajo segura: Always secure the material you are working on to prevent it from moving unexpectedly.
• Proper Bits: Use only bits designed for the specific task and material.
• Evite el agua: Do not operate the device near water or in damp condiciones.
• Niños y mascotas: Mantenga el dispositivo y todos los accesorios fuera del alcance de los niños y las mascotas.
• Unplug Before Changing: Always ensure the device is powered off and disconnected from the charger before changing bits or performing maintenance.
• Evite el sobrecalentamiento: If the device feels excessively hot, stop use and allow it to cool down.

9. Garantía y soporte

For warranty information, technical support, or service inquiries, please refer to the product packaging or contact ARROWMAX customer service directly. Keep your purchase receipt as proof of purchase.
