Linterna y cabezal OLIGHT Oclip Ultra EDCamp Manual de usuario de la correa

1. Introducción

This manual provides detailed instructions for the safe and effective use of your OLIGHT Oclip Ultra EDC Flashlight and the compatible Oclip Series Headlamp Strap. Please read this manual thoroughly before operating the product and retain it for future reference.

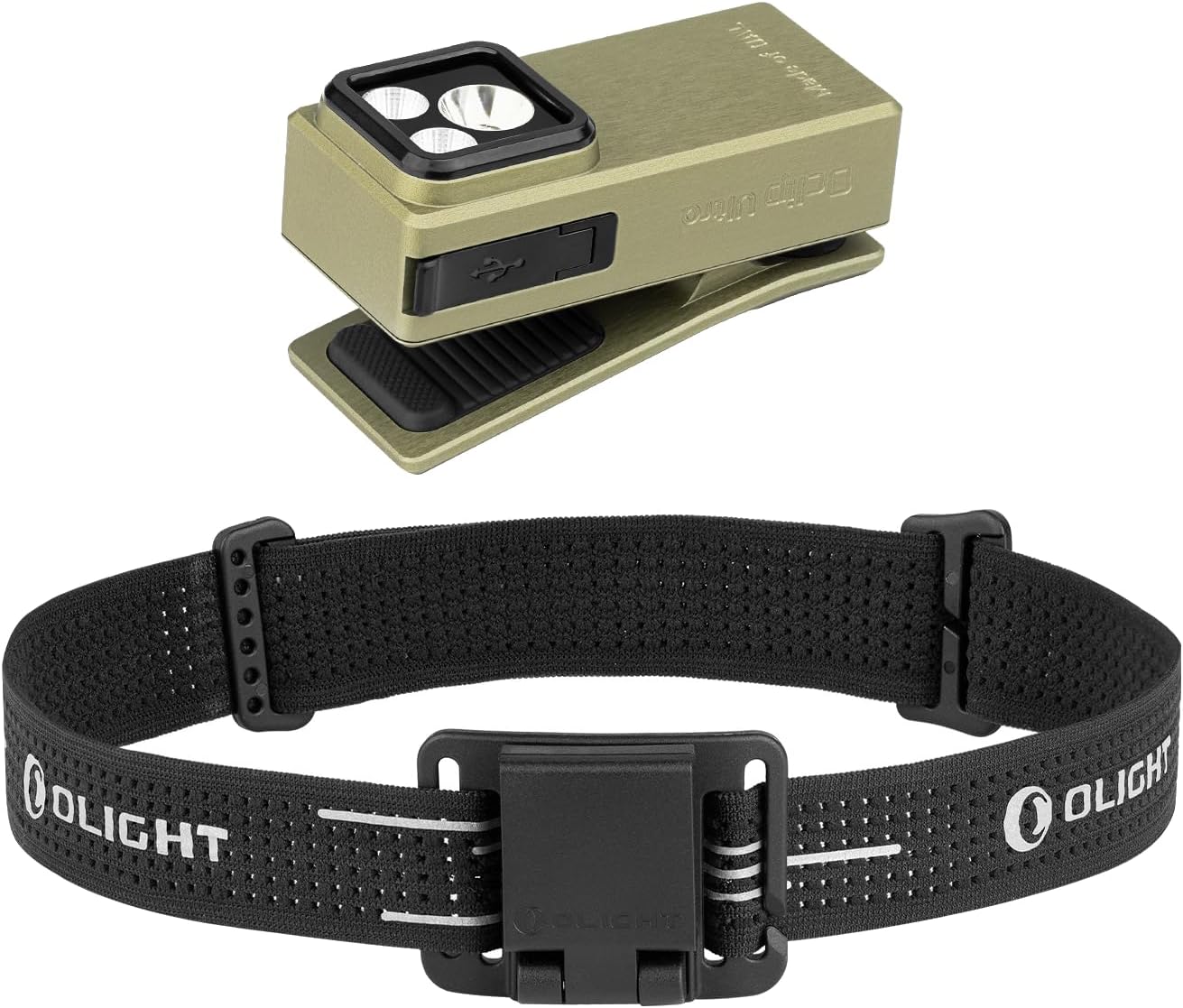

Image 1.1: The OLIGHT Oclip Ultra EDC Flashlight and the Oclip Series Headlamp Strap. This bundle provides versatile lighting solutions for various activities.

2. Contenido del paquete

• OLIGHT Oclip Ultra EDC Flashlight
• Cabezal OLIGHT serie Oclipamp Correa
• Manual de usuario (este documento)

3. Características del producto

3.1. Oclip Ultra EDC Flashlight

• Funcionalidad tres en uno: Combines a 530 lumens floodlight for wide-area illumination, a 130 meters range spotlight for focused distance lighting, and an 800 mW pure 365nm UV light for specialized inspections.
• Construcción duradera: Manufactured from O-aluminum, a material nearly twice as hard as standard 6061 aluminum, offering exceptional hardness and wear resistance for long-term durability.
• Versatile UV Light: The high-purity 365nm UV beam is ideal for detecting counterfeit currency, identifying minerals, and performing cleanliness checks.

Imagen 3.1: Varios views of the OLIGHT Oclip Ultra, highlighting its compact design and integrated clip mechanism.

Image 3.2: Illustration detailing the superior material properties of O-aluminum used in the Oclip Ultra, including its hardness and strength compared to other materials.

Image 3.3: The Oclip Ultra flashlight clipped to clothing, demonstrating its hands-free utility and compact size, along with key performance metrics.

Imagen 3.4: Examples of the Oclip Ultra's floodlight, spotlight, and UV light functions in practical scenarios, showcasing its versatile illumination capabilities.

3.2. Oclip Series Headlamp Correa

• Compatibilidad: Exclusively designed for the Oclip series flashlights, including Oclip, Oclip Pro, and Oclip Ultra.
• Flexible Rotating Light Holder: Features an adjustable bracket that allows the flashlight to be rotated 160 degrees, ensuring optimal lighting direction. The mechanism is tested for over 5,000 flip cycles.

Image 3.5: The OLIGHT Oclip Series Headlamp Strap, designed for comfortable and secure wear.

Image 3.6: The Headlamp Strap shown with various Oclip series flashlights (Oclip Ultra, Oclip Pro, Oclip), demonstrating its universal compatibility within the series.

Image 3.7: A person utilizing the Oclip Ultra with the headlamp strap to illuminate a path, illustrating hands-free operation in low-light conditions.

4. Configuración

4.1. Attaching the Oclip Ultra to the Headlamp Correa

1. Locate the mounting bracket on the Oclip Series Headlamp Correa.
2. Align the clip of the Oclip Ultra flashlight with the slot on the headlamp strap's mounting bracket.
3. Gently push the flashlight into the bracket until it securely clicks into place. Ensure there is no play and the flashlight is firmly seated.
4. Adjust the angle of the flashlight as needed using the flexible rotating holder.

5. Instrucciones de funcionamiento

5.1. Encendido/Apagado y Selección de Modo

• Encendido/apagado: Press the power button once to turn the flashlight on or off.
• Ajuste de brillo: When the flashlight is on, press and hold the power button to cycle through brightness levels (Moonlight, Low, Medium, High). Release the button at your desired brightness.
• Modo Turbo: A quick double-press of the power button will activate Turbo mode.
• UV Light Activation: Refer to the specific instructions provided with your Oclip Ultra for activating the UV light mode, typically involving a specific button sequence or long press.

Image 5.1: Diagram illustrating how to change the brightness level of the Oclip Ultra by long-pressing the button, cycling through Moonlight, Low, Medium, and High modes.

6. Mantenimiento

• Limpieza: Wipe the flashlight and headlamp strap with a soft, damp Paño. Evite limpiadores abrasivos o disolventes.
• Almacenamiento: Guarde el producto en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Cuidado de la batería: For optimal performance, ensure the flashlight is charged regularly. Avoid fully depleting the battery for extended periods.

7. Solución de problemas

• La linterna no enciende: Ensure the battery is charged. Check for any debris obstructing the power button.
• La salida de luz es tenue: La batería puede estar baja. Recargue la linterna.
• Flashlight not securely attaching to strap: Ensure the clip is properly aligned with the bracket and pushed firmly until it clicks. Inspect the clip and bracket for any damage.

8. Especificaciones

9. Garantía y soporte

For warranty information, product support, or service inquiries, please refer to the official OLIGHT webSitio web o contacte directamente con el servicio de atención al cliente. Conserve su recibo de compra como comprobante para reclamaciones de garantía.
