ATsafepro 1/4" Digital Torque Wrench Instruction Manual

1. Introducción

This manual provides detailed instructions for the proper use and maintenance of your ATsafepro 1/4" Digital Torque Wrench. Please read this manual thoroughly before operation to ensure safe and effective use of the tool. This digital torque wrench is designed for precise torque application in various tasks, including bicycle, automotive, and general home repair projects.

Figure 1: ATsafepro 1/4" Digital Torque Wrench with included extension and adapter in its storage case.

2. Configuración

2.1. Instalación de la batería

The digital torque wrench requires two AAA alkaline batteries (included). To install or replace batteries:

1. Desenrosque la tapa de la batería en la parte inferior del mango de la llave.
2. Insert the two AAA batteries, ensuring correct polarity (+/-) as indicated inside the battery compartment.
3. Enrosque nuevamente la tapa de la batería de forma segura.

2.2. Colocación de accesorios

The wrench set includes a 1/4-inch extension bar and a 1/4" to 3/8" drive adapter for increased versatility.

• To attach the extension bar or adapter, align the square drive of the accessory with the square drive on the wrench head and push firmly until it clicks into place.
• To remove, press the quick-release button on the wrench head and pull the accessory off.

Figure 2: The digital torque wrench includes a 1/4" extension bar and a 1/4" to 3/8" adapter for various applications.

3. Instrucciones de funcionamiento

3.1. Encendido y apagado

Press the 'C' button once to power on the device. The screen will illuminate, displaying the current settings. The device will automatically switch off after 120 seconds of inactivity to conserve battery life. To manually turn off, press and hold the 'C' button for 3 seconds.

3.2. Setting Torque Values

The wrench features 9 preset torque values (P1-P9) and allows for custom value setting.

1. Press the Up or Down arrow buttons to enter the profile modo.
2. Use the Up/Down arrows to select the desired profile (P1-P9).
3. Press the 'M' button to enter the value adjustment mode for the selected profile.
4. Use the Up/Down arrows to adjust the torque value. Press and hold for faster adjustment.
5. Press the 'C' button to confirm and save the new torque value to the selected profile.

3.3. Cambio de unidades

The wrench supports 5 measuring units: in.lbs, ft.lbs, Nm, kgf.cm, and kg.m. Briefly press the 'U' button to cycle through the available units. The display will update to show the current torque value in the newly selected unit.

Figure 3: The clear color screen displays precise readings and allows seamless switching between 5 torque units.

3.4. Operating Modes (Peak & Track)

Press the 'P/T' button to switch between Track Mode (T) and Peak Mode (P).

• Modo de seguimiento (T): Displays the real-time torque value as force is applied. The numerical value varies with force, and torque resets to zero after force removal.
• Modo Pico (P): Captures and displays the maximum torque value reached during tightening. The maximum screen retention occurs after unloading.

Figure 4: Illustration of the two operating modes: Peak Mode (P) for maximum value retention and Track Mode (T) for real-time readings.

3.5. Triple Alert System

The wrench provides a triple alert system to indicate when the target torque is reached:

• Vibración: The wrench vibrates when approaching and reaching the target torque.
• Zumbador: A loud buzzer sounds with increasing frequency as the target torque is approached, becoming continuous upon reaching 100%.
• Indicadores LED: Bright LED lights illuminate in sequence, changing from yellow to red as the target torque is approached and reached.

Figure 5: The wrench features a buzzer, clear LCD screen, and LED indicators for precise torque application.

3.6. Data Storage and Memory

The digital torque wrench can store up to 500 sets of torque readings for review.

• To save the current data, press the 'M' key.
• To query stored data, hold down the 'M' key to enter the memory menu. Use the Up/Down arrows to navigate through the stored torque values.
• To exit the memory menu, press the 'C' key.

Figure 6: The wrench offers torque memory, peak mode, and track mode for comprehensive data management.

4. Mantenimiento

4.1. Calibración

The ATsafepro digital torque wrench is factory calibrated to ±2% accuracy. Regular calibration is recommended to maintain accuracy, especially after prolonged use or significant impacts. Refer to a certified calibration service for professional recalibration.

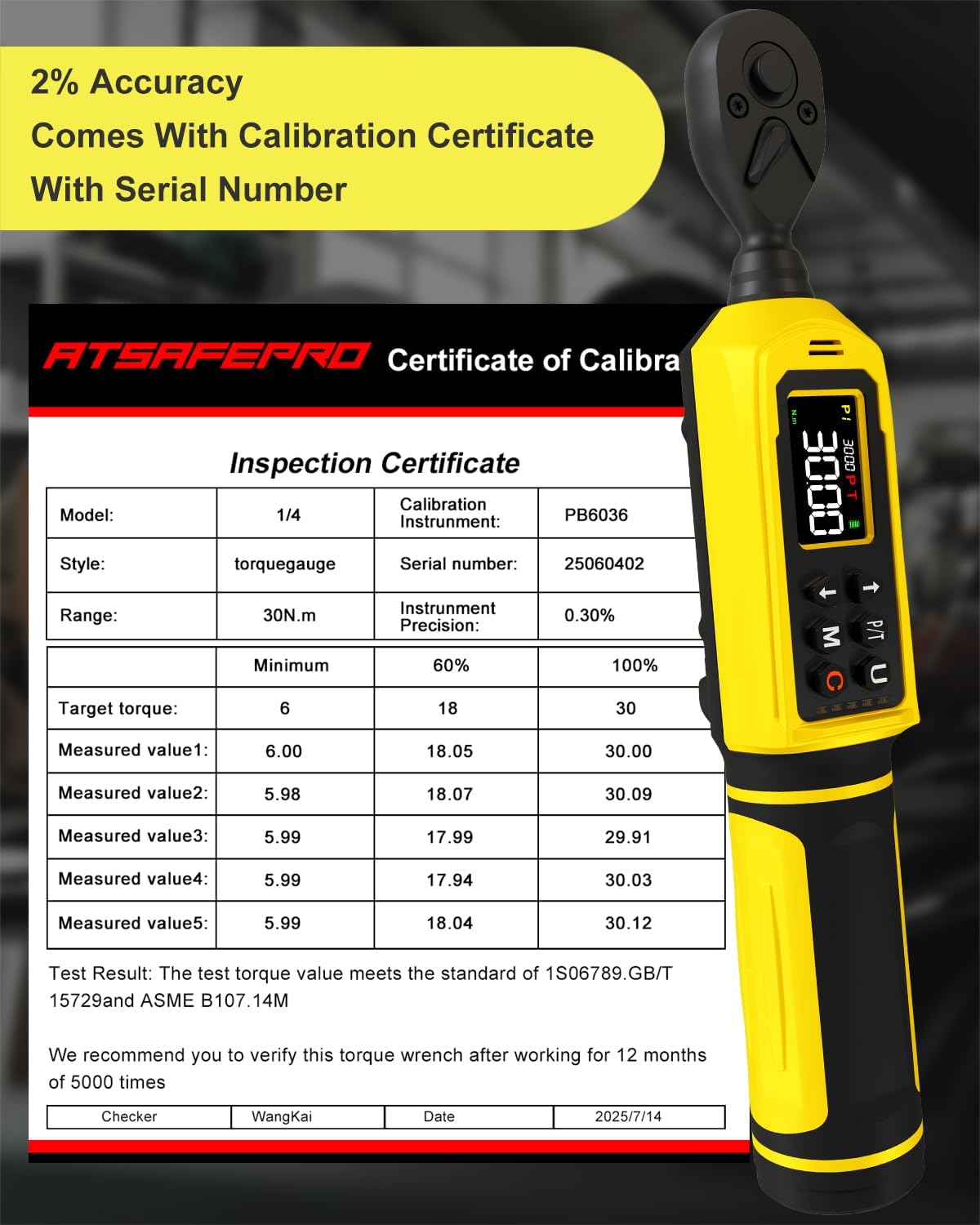

Figure 7: The wrench comes with a calibration certificate, ensuring ±2% accuracy.

4.2. Almacenamiento

Store the torque wrench in its protective case in a dry, clean environment when not in use. Remove batteries if the wrench will not be used for an extended period to prevent leakage and damage.

5. Solución de problemas

If you encounter any issues with your ATsafepro Digital Torque Wrench, please consider the following:

• Sin energía: Check battery orientation and ensure batteries are not depleted. Replace with fresh AAA batteries if necessary.
• Lecturas inexactas: Ensure the wrench is properly calibrated. Avoid dropping or subjecting the tool to harsh impacts.
• Problemas de visualización: Si la pantalla está oscura o parpadea, reemplace las baterías.

6. Especificaciones

7. Garantía y soporte

For warranty information or technical support regarding your ATsafepro Digital Torque Wrench, please refer to the documentation included with your product or contact ATsafepro customer service directly. Protection plans are available for purchase separately.
