1. Producto terminadoview
The NUTOMO Smart Lock is a keyless entry door lock system designed for enhanced home security and convenience. It integrates multiple access methods including fingerprint recognition, digital keypad passcodes, and IC cards, alongside traditional physical keys. This lock is engineered for durability and ease of use, providing a reliable security solution without requiring an app or Wi-Fi connection.
Características principales:
- Opciones de entrada múltiples: Supports up to 100 fingerprints, 150 passcodes, and includes 2 IC cards and 2 physical keys for versatile access.
- Mayor durabilidad: Constructed with high-quality aluminum alloy, designed to resist common issues such as motor failures and handle breakage.
- Advanced Security Cylinder: Features an upgraded lock cylinder with anti-violent unlocking, foreign object prevention, and anti-picking mechanisms.
- Rapid Fingerprint Recognition: Unlocks in approximately 1 second with a recognition speed of 0.3 seconds.
- Batería de larga duración: Powered by 4 AA batteries (not included) providing up to 8 months of operation, with a low battery warning system.
- Teclado táctil retroiluminado: Ensures clear visibility and accurate entry in low-light conditions, featuring anti-peeping and password protection settings.
- Fácil instalación: Designed for quick installation, typically within 15 minutes, fitting most US standard doors with adjustable design for existing holes.
Image 1.1: Complete set of NUTOMO Smart Lock components, including the exterior handle, interior deadbolt, keypad, and accompanying keys and IC cards.
Imagen 1.2: Detallada view of the upgraded anti-pick lock cylinder, illustrating its internal mechanisms designed for enhanced security against forced entry and lock picking.
2. Componentes del producto
Antes de comenzar la instalación, verifique que todos los componentes enumerados a continuación estén presentes en su paquete:
- Exterior Lock Assembly (Keypad with Handle)
- Interior Lock Assembly (Battery Cover and Thumb Turn)
- Latch/Deadbolt Mechanism
- Placa de montaje
- Strike Plate and Dust Box
- Tornillos (varios tamaños para diferentes componentes)
- 2 x Llaves físicas
- 2 tarjetas IC
- Manual de usuario
- Plantilla de instalación
3. Guía de instalación
Follow these steps carefully to install your NUTOMO Smart Lock. A Phillips head screwdriver is typically the only tool required.
3.1. Comprobaciones previas a la instalación
Ensure your door dimensions are compatible with the lock. The lock fits doors between 1-3/8" (35mm) and 2.17" (55mm) thick. Verify the backset (distance from door edge to center of bore hole) is either 2-3/8" (60mm) or 2-3/4" (70mm).

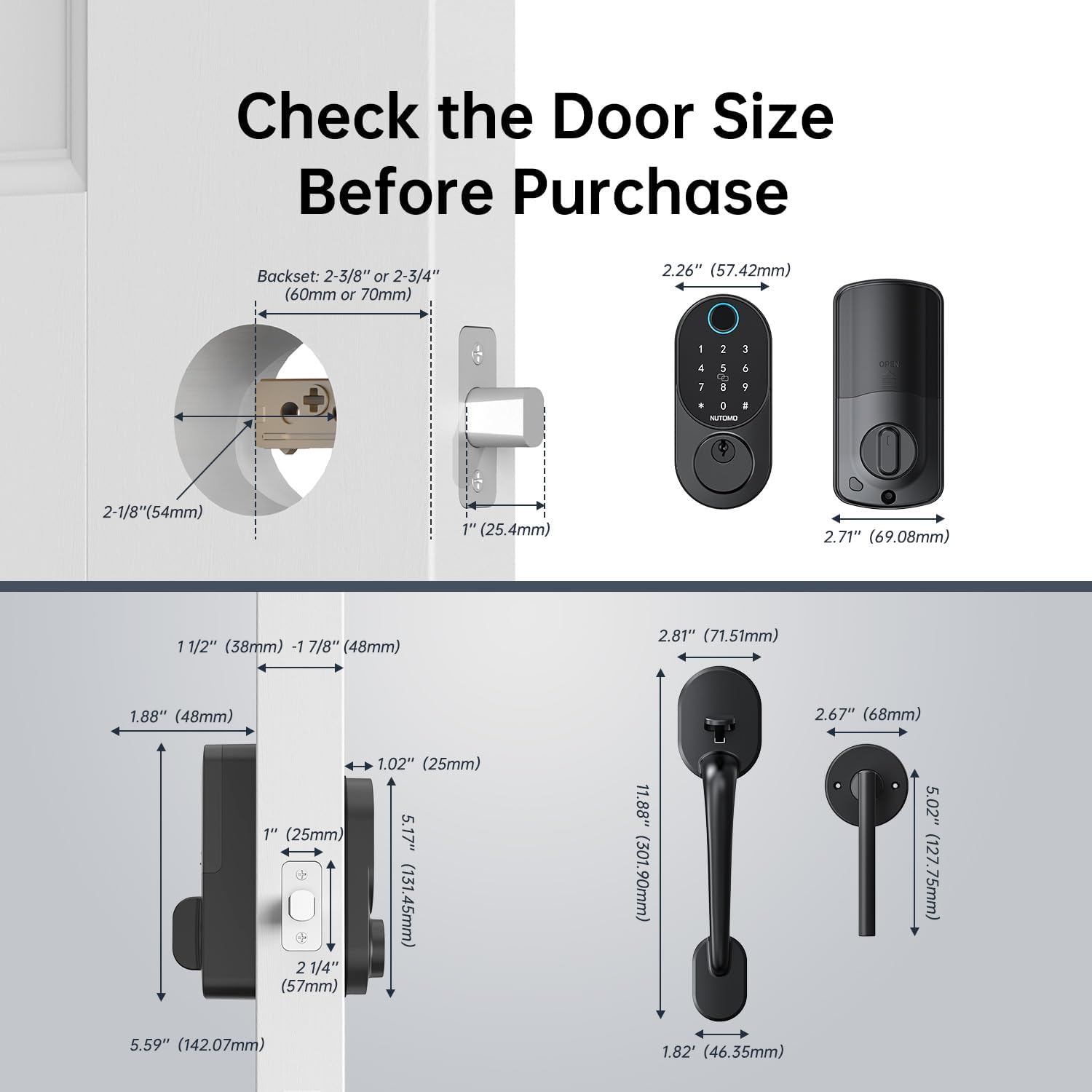

Image 3.1: Diagram illustrating critical door measurements (thickness, backset, bore hole diameter) and corresponding lock dimensions to ensure compatibility before installation.
3.2. Instalación paso a paso
Refer to the provided installation template for accurate drilling if necessary. For existing doors, align components with pre-drilled holes.
- Step 1: Install the Bolt. Insert the deadbolt latch into the door edge. Ensure the latch bolt is oriented correctly for your door's swing.
- Step 2: Install the Keypad. Feed the cable from the exterior keypad through the bore hole. Position the keypad assembly on the exterior side of the door.
- Step 3: Install the Mounting Plate. Secure the interior mounting plate to the exterior keypad assembly using the provided screws, ensuring the cable passes through the plate.
- Step 4: Connect the Cable. Conecte el cable del teclado exterior al conjunto de cerradura interior.
- Step 5: Install the Back Lock. Attach the interior lock assembly to the mounting plate, aligning it properly with the deadbolt mechanism.
- Step 6: Install Batteries and Cover. Insert 4 AA batteries (not included) into the battery compartment of the interior assembly. Secure the battery cover.
Image 3.2: A visual guide detailing the six primary steps for installing the NUTOMO Smart Lock, from bolt insertion to battery installation.
Video 3.1: Official installation video for the NUTOMO Smart Lock, demonstrating the complete setup process from start to finish.
4. Operación
The NUTOMO Smart Lock offers multiple convenient ways to secure and access your property.
4.1. Adding/Managing Fingerprints
The lock supports up to 100 unique fingerprints. Follow the instructions in the quick start guide (usually included with the lock) to enroll new fingerprints. Ensure your finger covers the entire sensor for accurate recognition.
Image 4.1: A user interacting with the smart lock's fingerprint sensor, demonstrating the biometric recognition feature for quick access.
4.2. Adding/Managing Passcodes
You can store up to 150 passcodes. When entering a passcode, the anti-peeping feature allows you to input random digits before or after your actual code to prevent others from guessing it. For example, if your code is 123456, you can enter ****123456****.
Image 4.2: Visual representation of the anti-peeping passcode function, demonstrating how to embed the correct passcode within a sequence of random digits for enhanced security.
4.3. Using IC Cards
The lock comes with 2 IC cards for convenient tap-to-unlock access. Simply present the IC card to the designated area on the lock to unlock the door.
4.4. Función de bloqueo automático
The smart lock features an auto-lock function that automatically locks the door after a set period (typically 5-900 seconds) once it has been unlocked. This prevents accidental unlocking or forgetting to lock the door.
Image 4.3: Illustration of the auto-lock feature, highlighting its ability to automatically secure the door after a user-defined delay, preventing accidental unlocks.
4.5. Manual Key Override
In case of battery depletion or electronic malfunction, the lock can always be opened using the provided physical keys. The keyhole is located discreetly on the exterior keypad assembly.
Image 4.4: The smart lock featuring a Type-C USB port for emergency charging and the inclusion of physical keys for manual override, ensuring access even if batteries are depleted.
5. Mantenimiento
Proper maintenance ensures the longevity and optimal performance of your NUTOMO Smart Lock.
5.1. Reemplazo de la batería
The lock is powered by 4 AA batteries (not included). It features a low battery warning system that will alert you when the batteries need replacement. Replace all four batteries simultaneously with new, high-quality alkaline AA batteries for best performance. Do not mix old and new batteries or different battery types.

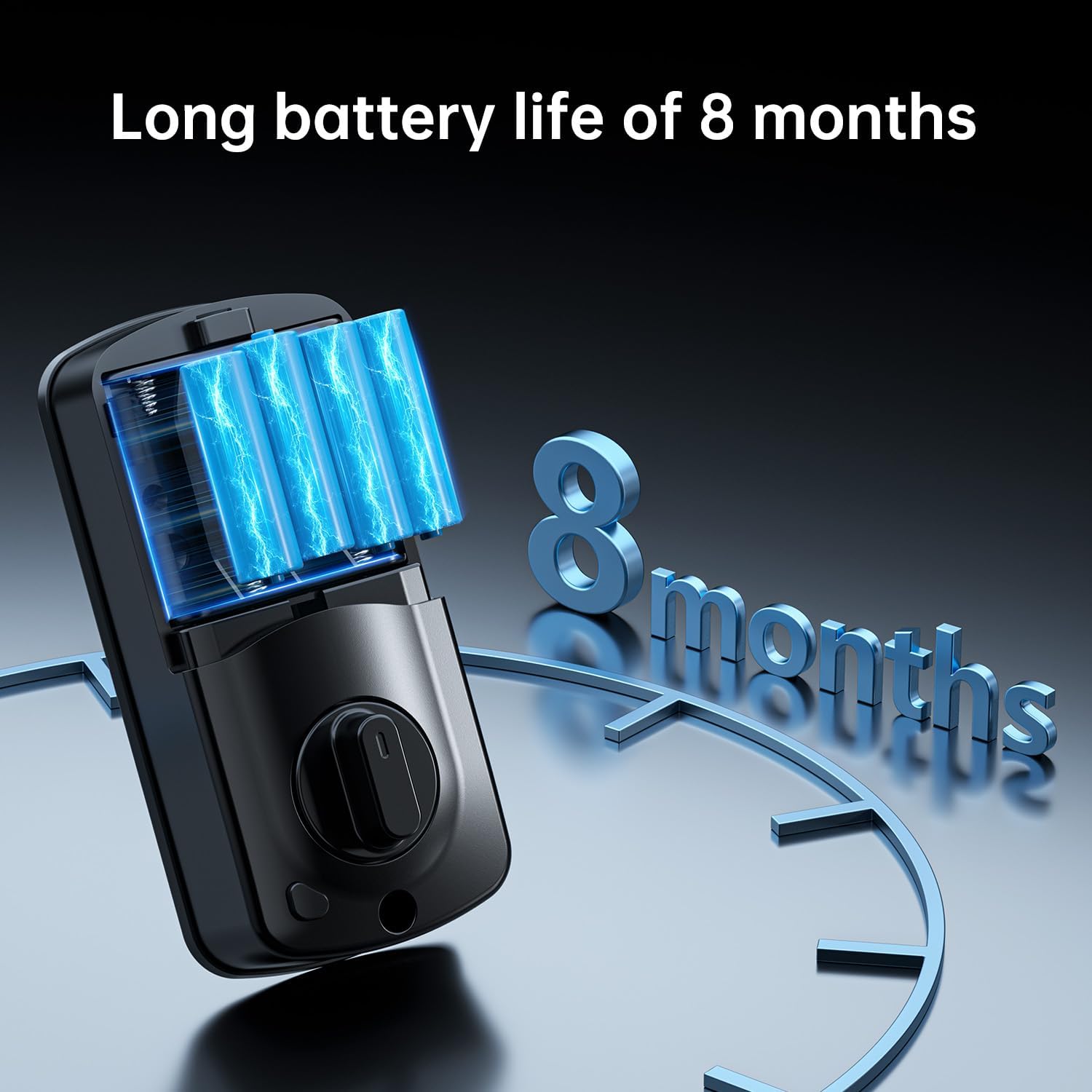

Image 5.1: Illustration of the smart lock's battery compartment, emphasizing its long battery life of up to 8 months with 4 AA batteries.
5.2. Limpieza
Limpie las superficies exteriores de la cerradura con un paño suave.amp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and electronic components. Regularly wipe the fingerprint sensor to ensure accurate readings.
6. Solución de problemas
If you encounter issues with your NUTOMO Smart Lock, refer to the common problems and solutions below.
6.1. Huella dactilar no reconocida
- Asegúrese de que su dedo esté limpio y seco.
- Cover the entire fingerprint sensor area.
- Try re-enrolling your fingerprint if the issue persists.
6.2. Keypad Unresponsive
- Verifique los niveles de la batería y reemplácela si es necesario.
- Asegúrese de que el teclado esté limpio y libre de residuos.
- If completely unresponsive, use the physical key or emergency Type-C power.
6.3. Lock Not Engaging/Disengaging
- Verify that the door frame and strike plate are properly aligned.
- Check for any obstructions preventing the deadbolt from extending fully.
- Ensure the interior thumb turn operates smoothly.
6.4. Anti-Theft Lockout
If incorrect passcodes, fingerprints, or IC cards are used consecutively for 5 times, the system will lock down for 2 minutes. To reset, power off the lock for more than 3 seconds and then power it back on.
Image 6.1: Depiction of the anti-theft locking mechanism, which activates after multiple failed entry attempts, temporarily disabling the lock to deter unauthorized access.
7. Especificaciones
| Característica | Detalle |
|---|---|
| Marca | NUTOMO |
| Nombre del modelo | Smart door lock |
| Número de modelo del artículo | US-Y2-BSHS-NUT |
| Tipo de bloqueo | Cerrojo, teclado |
| Características especiales | Anti-Peeping Password, Auto-Lock, Electronic Keypad Deadbolt, Fingerprint, One-Touch Lock |
| Color | Negro mate |
| Material | Aleación de aluminio de alta calidad |
| Dimensiones del artículo (largo x ancho x alto) | 14 x 10 x 3 pulgadas |
| Peso del artículo | 4.5 libras |
| Fuente de poder | 4 pilas AA (no incluidas) |
| Duración de la batería | Hasta 8 meses |
| Capacidad de huellas dactilares | Hasta 100 |
| Capacidad de contraseña | Hasta 150 |
| Compatibilidad del espesor de la puerta | 1-3/8" (35 mm) a 2.17" (55 mm) |
| Temperatura de funcionamiento | -4 °F a +158 °F (-20 °C a +70 °C) |
| Clasificación de impermeabilidad | IP54 |
Image 7.1: The NUTOMO Smart Lock demonstrating its IP54 waterproof rating and ability to withstand extreme temperatures, from -4°F to +158°F.
8. Garantía y soporte
NUTOMO is committed to providing reliable products and excellent customer service.
8.1. Información de garantía
Your NUTOMO Smart Lock comes with a Garantía de reemplazo gratuita de 1 años Desde la fecha de compra. Esta garantía cubre defectos de fabricación y asegura el correcto funcionamiento del producto en condiciones normales de uso.
8.2. Atención al cliente
For any questions, technical assistance, or warranty claims, please contact NUTOMO customer service:
- Online Email Support: Available for detailed inquiries and troubleshooting.
- Phone Call Assistance: For immediate support.
- Lifetime Troubleshooting Support: NUTOMO provides ongoing technical support for the lifetime of the product.
Además, una 30-day Free Return & Exchange policy is available for your convenience.
