Bellemave Full Over Full Metal Bunk Bed with Storage Drawers and Ladder

Introducción

Thank you for choosing the Bellemave Full Over Full Metal Bunk Bed. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Información importante de seguridad

El incumplimiento de estas advertencias podría resultar en lesiones graves.

• ADVERTENCIA: Bunk beds should not be used by children under 6 years of age on the upper bunk.
• ADVERTENCIA: Ensure the mattress on the upper bunk does not exceed 6 inches in thickness.
• ADVERTENCIA: Always use the provided guardrails on both sides of the upper bunk.
• ADVERTENCIA: No permita que más de una persona se siente en la litera superior.
• ADVERTENCIA: No sujete ni cuelgue artículos en ninguna parte de la litera que no estén diseñados para usarse con la cama; para example, pero no limitado a, ganchos, cinturones y cuerdas para saltar.
• ADVERTENCIA: Revise periódicamente y asegúrese de que todos los conectores estén bien apretados.
• ADVERTENCIA: No utilice piezas de repuesto. Contacte con Bellemave para obtener piezas de repuesto.
• ADVERTENCIA: Utilice siempre la escalera para subir y bajar de la litera superior. No salte sobre la cama.
• ADVERTENCIA: Conserve estas instrucciones para futuras consultas.
• ADVERTENCIA: STRANGULATION HAZARD - Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, pero no limitado a, ganchos, cinturones y cuerdas para saltar.

The maximum weight capacity for the upper bunk is 450 lbs, and for the lower bunk is 400 lbs.

Contenido del paquete

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

• Metal Bed Frame Components (Headboards, Footboards, Side Rails, Support Beams)
• Listones de metal (21 piezas)
• Escalera empotrada
• Barandillas
• 2 cajones de almacenamiento con ruedas
• Herrajes de montaje (tornillos, pernos, arandelas, llave Allen)
• Manual de instrucciones

Note: Some components may be pre-assembled.

Configuración y montaje

Assembly typically requires two adults. Please ensure you have ample space and all parts are accounted for before starting. An Allen wrench is usually included; a Phillips head screwdriver may also be required (not included).

Paso 1: Desembalaje e identificación de las piezas

Retire con cuidado todos los componentes del embalaje. Colóquelos sobre una superficie suave y limpia para evitar rayones. Consulte la lista de piezas para identificar cada una.

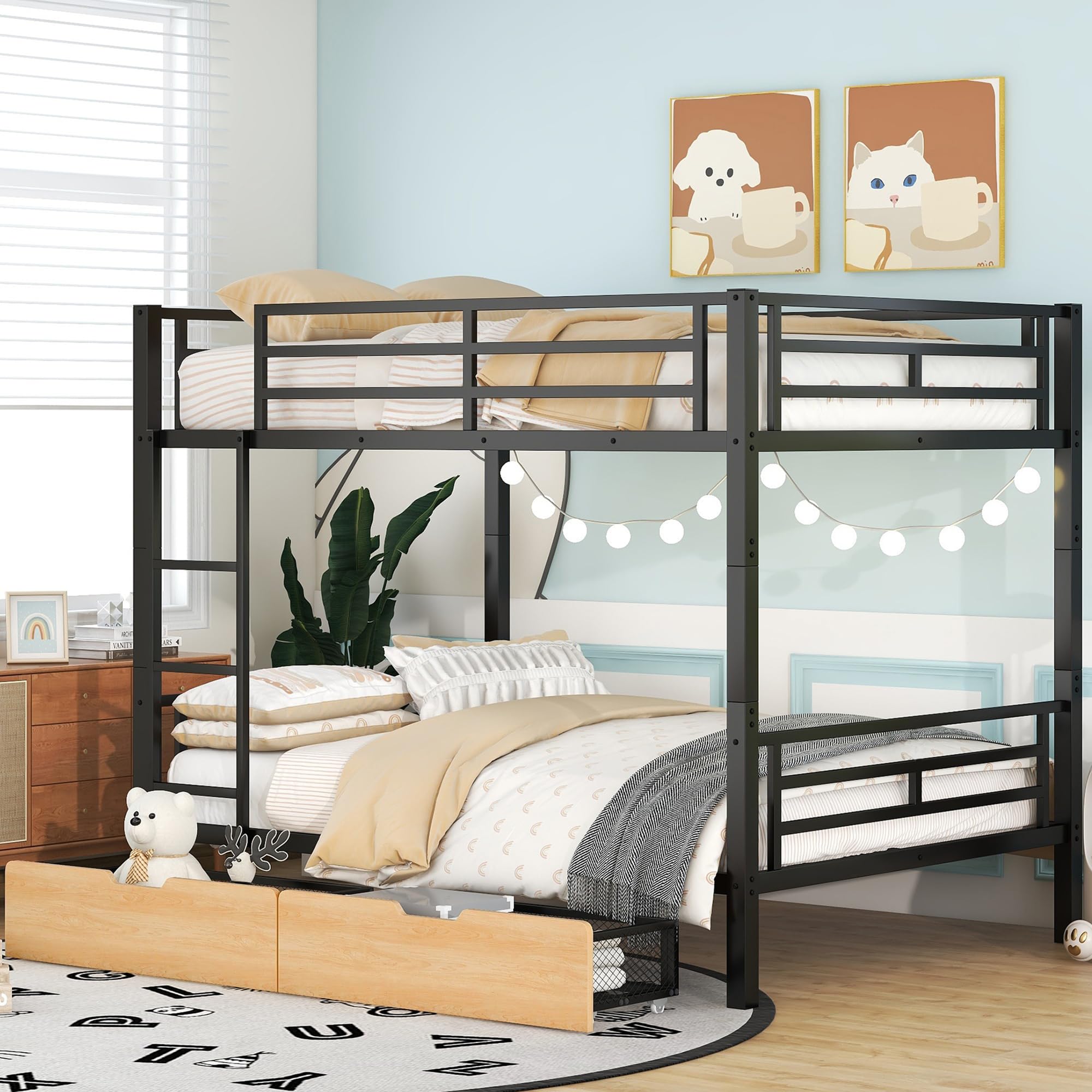

Imagen: General view of the Bellemave Full Over Full Metal Bunk Bed.

Step 2: Assemble the Bed Frames

Begin by assembling the headboards and footboards for both the upper and lower beds. Attach the side rails to form two complete bed frames. Do not fully tighten all bolts until the entire frame is assembled.

Image: Assembled bunk bed frame without mattresses.

Paso 3: Conecte los marcos superior e inferior

Carefully stack the upper bed frame onto the lower bed frame, aligning the connection points. Secure them using the designated hardware. Ensure the structure is stable before proceeding.

Step 4: Install Slats and Guardrails

Place the metal slats onto the support beams of both the upper and lower beds. Secure them according to the instructions to provide a sturdy mattress foundation. Attach the guardrails to the upper bunk.

Image: Detail of the metal slat foundation.

Step 5: Attach Ladder and Assemble Drawers

Securely attach the built-in ladder to the bunk bed frame. Assemble the two storage drawers by attaching the wooden fronts to the metal mesh baskets and installing the wheels. Slide the assembled drawers under the lower bunk.

Image: Detail of the storage drawer construction.

Image: Bunk bed with storage drawers extended.

Paso 6: Ajuste final e inspección

Once all components are in place, go back and fully tighten all bolts and screws. Ensure the bed is stable and all safety features, such as guardrails and the ladder, are securely attached. Place mattresses on both bunks.

Convertible Feature: Separating into Two Individual Beds

This bunk bed can be converted into two individual full-size beds. To do so, carefully reverse the assembly steps for connecting the upper and lower frames. Ensure all connecting hardware is removed, and then position the two beds separately. The guardrails are only for the upper bunk configuration and should be removed if used as a single bed.

Image: The bunk bed configured as two separate full-size beds.

Instrucciones de funcionamiento y uso

• Requisitos del colchón: No box spring is required for this bed. The sturdy metal slats provide adequate support. Ensure the mattress for the upper bunk does not exceed 6 inches in thickness to maintain proper guardrail height.
• Capacidad de peso: La litera superior soporta un peso máximo de 450 kg. La litera inferior, un peso máximo de 400 kg. No exceda estos límites.
• Cajones de almacenamiento: The integrated storage drawers are designed for lightweight items such as bedding, clothes, or toys. Avoid overloading the drawers to ensure smooth operation of the wheels.
• Uso de la escalera: Always use the built-in ladder for safe access to and from the upper bunk.

Mantenimiento

• Limpieza: For the metal frame and wooden drawer fronts, wipe clean with a damp cloth and mild detergent. Dry immediately. Avoid abrasive cleaners or harsh chemicals.
• Comprobación del hardware: Periodically (e.g., every 3 months) inspect all bolts, screws, and connections to ensure they remain tight. Tighten any loose hardware to maintain stability and safety.
• Mantenimiento de cajones: Keep the drawer wheels free of debris to ensure smooth gliding.

Solución de problemas

Problema: La cama se siente tambaleante o inestable.

Solución: Revise todos los herrajes de montaje. Asegúrese de que todos los pernos y tornillos estén bien apretados. Si el problema persiste, desmonte y vuelva a montar, prestando especial atención a cada conexión.

Problema: Ruidos chirriantes.

Solución: Squeaking often indicates loose connections. Retighten all bolts and screws. Applying a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points can also help.

Issue: Storage drawers do not slide smoothly.

Solución: Check for any obstructions under the bed or in the drawer tracks. Ensure the wheels are clean and free of debris. Verify that the drawers were assembled correctly and are not overloaded.

Problema: Piezas faltantes o dañadas.

Solución: Do not attempt to use the bed with missing or damaged parts. Contact Bellemave customer support for replacement parts.

Presupuesto

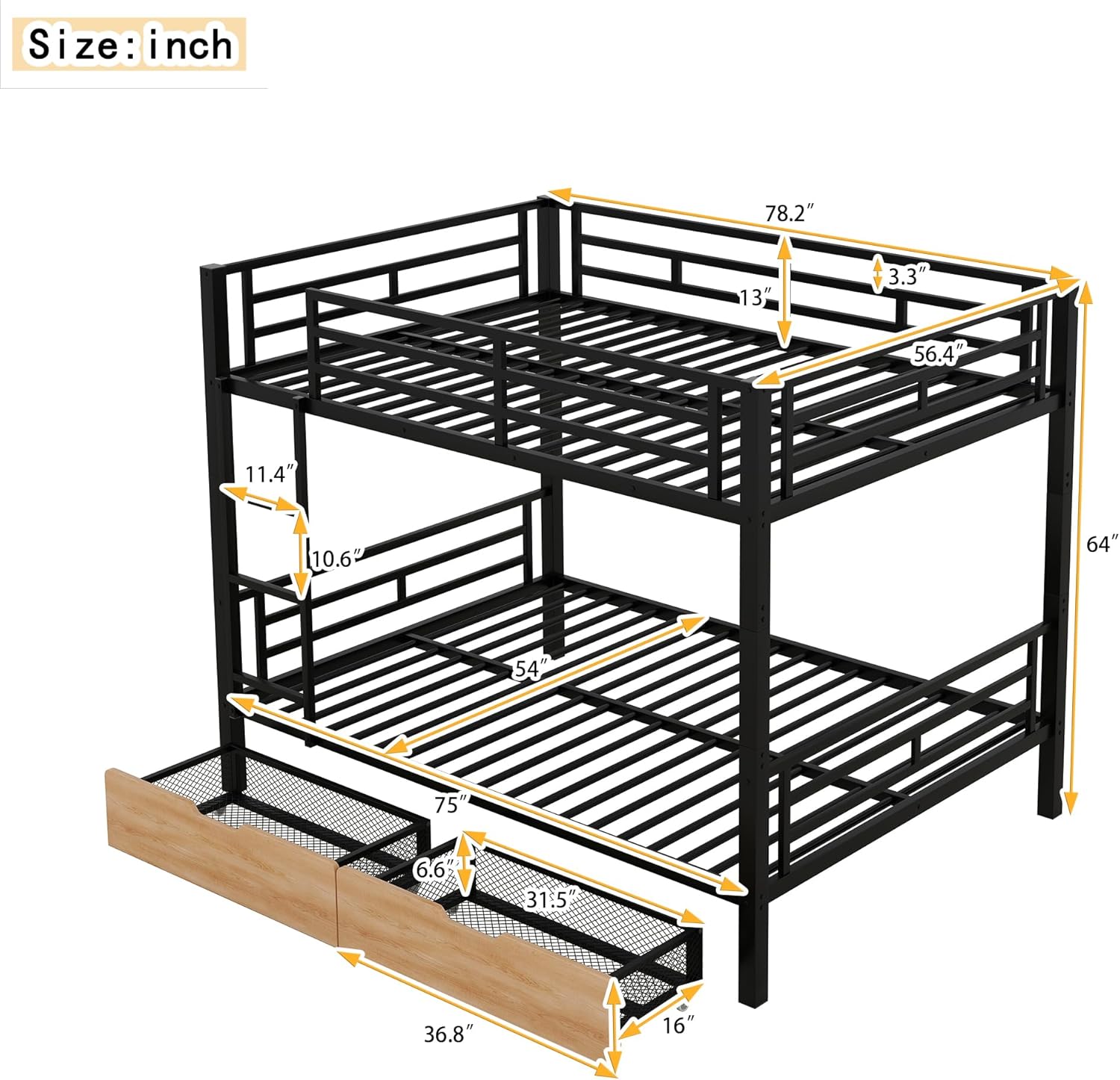

Image: Detailed dimensions of the Bellemave Full Over Full Bunk Bed.

Información de garantía

Bellemave products are manufactured to high-quality standards. For specific warranty details regarding your Full Over Full Metal Bunk Bed, please refer to the warranty card included with your purchase or contact Bellemave customer support directly. Keep your proof of purchase for any warranty claims.

Atención al cliente

If you have any questions, require assistance with assembly, or need replacement parts, please contact Bellemave customer service. Provide your model number (GZZ000038FF) and purchase date for faster service.

A menudo puede encontrar información de contacto en el sitio web oficial de Bellemave. websitio o a través de los canales de soporte de su minorista.
