COLAMY LumiDesk All-in-1 Electric Standing Desk

1. Introducción

Thank you for choosing the COLAMY LumiDesk All-in-1 Electric Standing Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read it thoroughly before use and retain it for future reference.

2. Información de seguridad

• Do not overload the desk. Distribute weight evenly to maintain stability. The maximum weight recommendation is 175 pounds.
• Ensure no obstacles are in the desk's path during height adjustment to prevent damage or injury.
• Mantenga a los niños y a las mascotas alejados del escritorio durante su funcionamiento.
• Utilice el escritorio únicamente para el fin previsto, como estación de trabajo.
• Revise periódicamente todos los tornillos y conexiones para asegurarse de que estén bien apretados y seguros.
• Desconecte la alimentación antes de limpiar o realizar cualquier mantenimiento.

3. Características del producto

3.1. Premium Desktop & Sturdy Frame

The desk features a whole-piece desktop crafted with FSC-certified MFC and natural veneer, offering a seamless surface with natural wood grain. The robust carbon steel frame ensures stability and durability.

Image: COLAMY LumiDesk in a modern office setting.

3.2. Smooth & Silent Dual Motor Lift System

Equipped with a dual-motor system, the desk provides smooth and stable sit-stand transitions with a whisper-quiet operation (below 50dB). It supports up to 175 lbs with a lifting speed of 1.4 inches per second.

Image: Graphic illustrating the quiet operation of the dual-motor lift system.

3.3. Integrated Cable Management & Power Outlet

Maintain a clutter-free workspace with the built-in power outlet, magnetic rear cable tray, and desktop grommet. These features help keep wires organized and out of sight.

Image: Close-up of the integrated cable management tray and power outlet.

3.4. Spacious Pull-Out Drawer for Storage

A large 25x12 inch pull-out drawer is integrated for convenient storage of office supplies, documents, and personal items, helping to maintain a minimalist desktop.

Imagen: View of the spacious pull-out drawer.

3.5. Ergonomic Footrest for Flexible Posture

The built-in footrest supports your legs in various positions, whether sitting, standing, lounging, or cross-legged, reducing pressure and enhancing comfort.

Image: Close-up of the ergonomic footrest.

4. Instrucciones de montaje

The COLAMY LumiDesk is designed for simplified assembly, often taking less than 10 minutes for a solo installation. All necessary assembly tools are included.

1. Desembale todos los componentes y verifíquelos con la lista de piezas en el manual incluido.
2. Fije las patas del escritorio al escritorio utilizando los tornillos y herramientas proporcionados.
3. Connect the motor cables to the control box as indicated.
4. Secure any covers or cable management components.
5. Conecte el escritorio a una toma de corriente.

5. Instrucciones de funcionamiento

5.1. Ajuste de altura

Use the manual controller located on the front right of the desk to adjust the height. Pull up to raise the desk and push down to lower it. The display screen will show the current height.

Image: Close-up of the manual controller for height adjustment.

5.2. Ajustes preestablecidos de memoria

The controller allows you to save up to two height presets (e.g., one for sitting, one for standing). To set a preset:

1. Ajusta el escritorio a la altura deseada.
2. Double-click the settings button (Button 2) on the right side of the controller.
3. Navigate to the cloud icon and select either Preset 1 or Preset 2 to save the current height.

To activate a preset, double-press the controller up or down to move to your saved standing or sitting position.

5.3. Sit-Stand Reminder

The desk features a customizable timer to remind you to switch between sitting and standing. Access this feature through the controller settings. When active, the screen displays a progress bar, and the controller vibrates when the timer ends.

5.4. Bloqueo de seguridad

To prevent accidental adjustments, the controller includes a lock feature. This requires a specific input to unlock, ensuring the desk height remains unchanged, especially useful in households with children.

5.5. Función anticolisión

The LumiDesk is equipped with a gyroscope sensor that automatically stops the desk from lowering further and slightly raises it if it detects any external force or obstruction during adjustment, preventing damage or injury.

6. Mantenimiento

• Limpieza: Limpie el escritorio y el marco con un paño suave.amp paño. Evite productos químicos agresivos o limpiadores abrasivos.
• Inspección: Periodically check all fasteners and connections for tightness. Tighten if necessary.
• Sistema de organización de cables: Ensure cables are neatly organized within the cable tray and grommet to prevent snagging during height adjustments.

7. Solución de problemas

If you encounter issues not listed here or if solutions do not resolve the problem, please contact COLAMY customer support.

8. Especificaciones

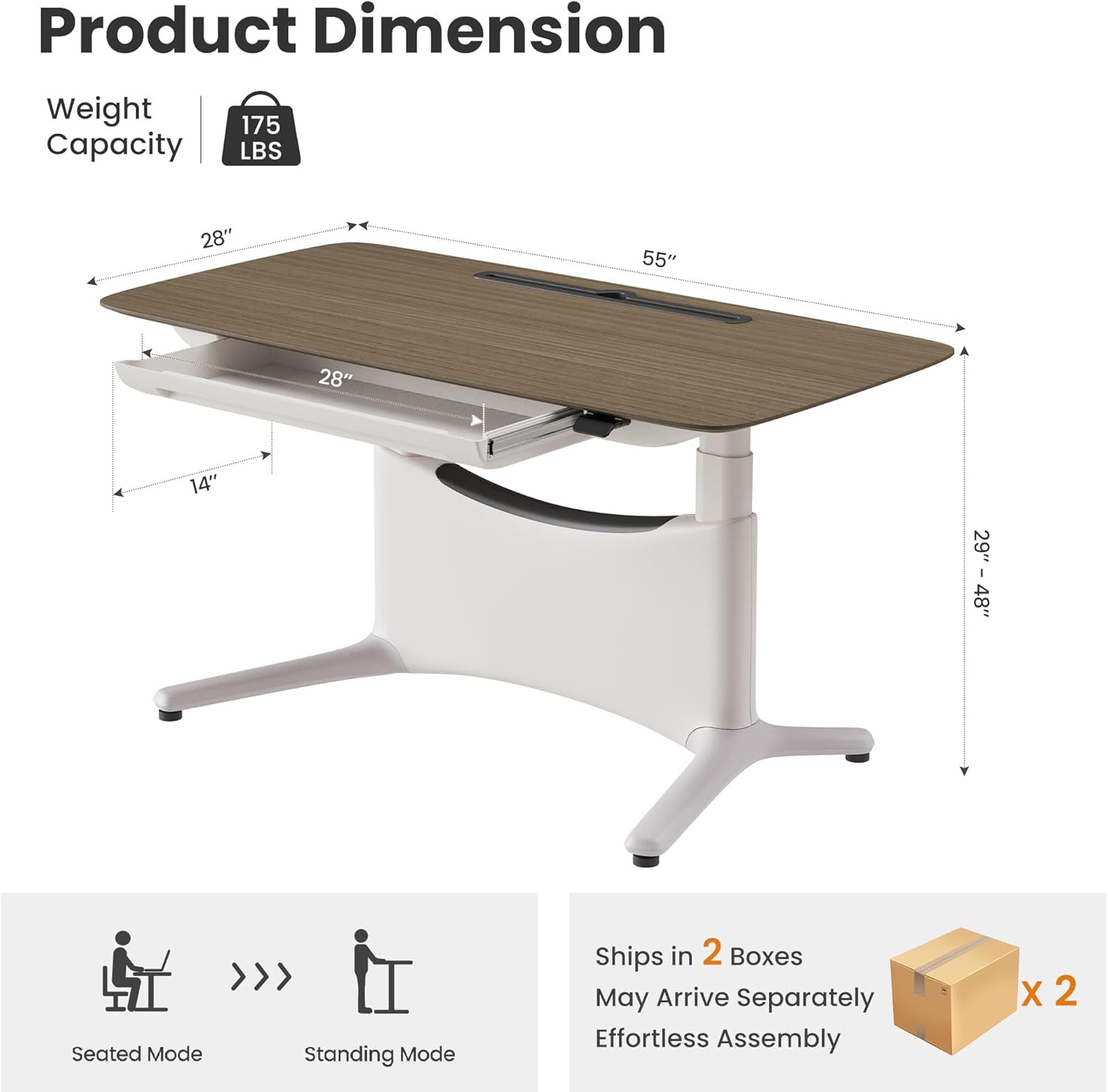

Imagen: Dimensiones del producto y capacidad de peso.

9. Garantía y soporte

The COLAMY LumiDesk comes with a 5-year limited warranty for the frame and structure, and a 1-year limited warranty for the motor and electronics. For any assistance, please contact COLAMY customer support.

Para obtener más ayuda o realizar consultas, visite el sitio web COLAMY Store on Amazon.
