Introducción
This manual provides detailed instructions for the installation, operation, and maintenance of your MONDAWE 10 Inch Matte Black Shower System with Tub Spout. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your shower system.
Información de seguridad
- Cierre siempre el suministro principal de agua antes de comenzar cualquier trabajo de plomería.
- Utilice equipo de protección personal adecuado, como gafas de seguridad y guantes, durante la instalación.
- Si no está seguro acerca de alguna parte del proceso de instalación, consulte a un plomero calificado.
- Asegúrese de que todas las conexiones estén seguras para evitar fugas.
- No apriete demasiado las conexiones, ya que esto puede dañar los componentes.

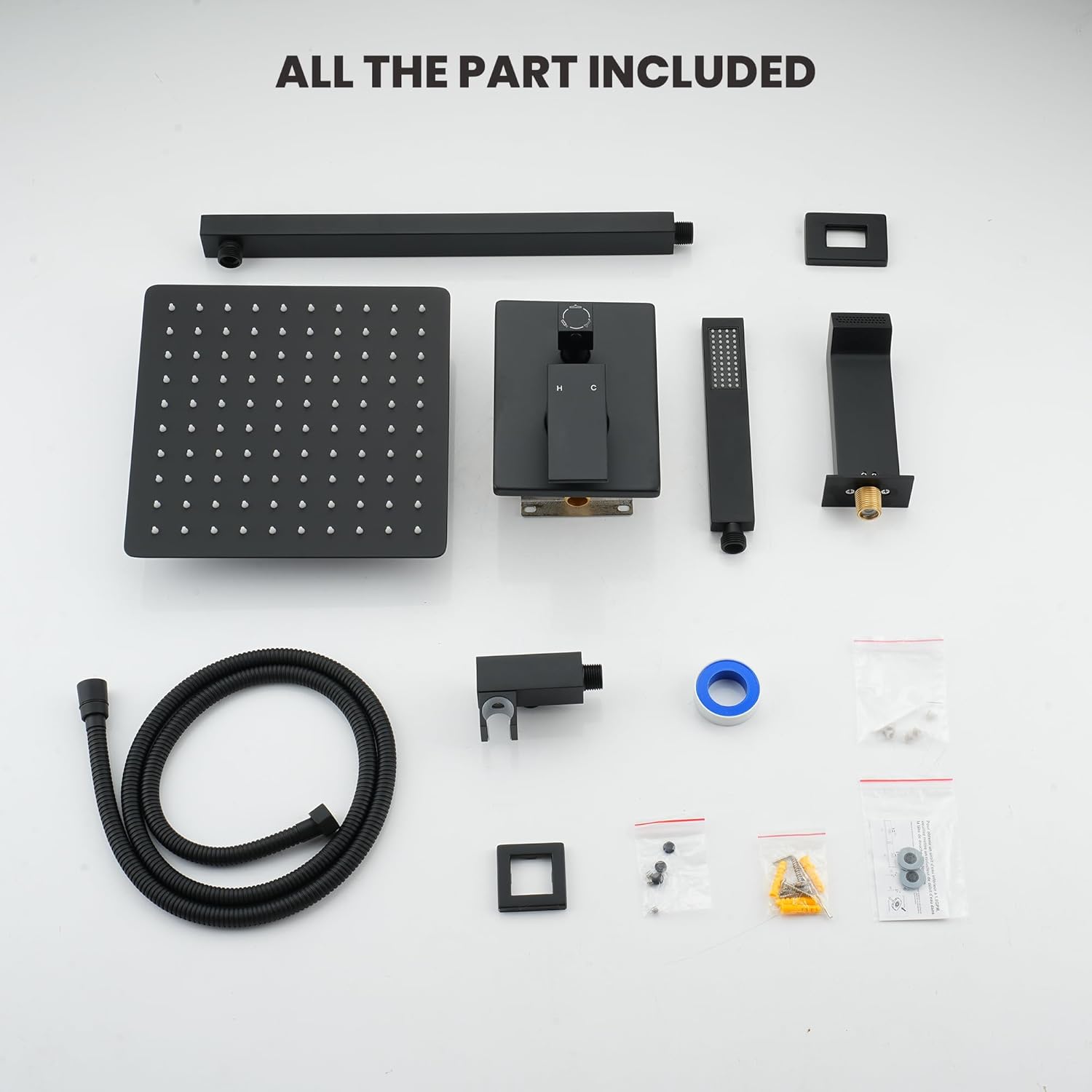

Contenido del paquete
Verifique que todos los componentes estén presentes y sin daños antes de continuar con la instalación.
- 10 inch Square Shower Head (304 Stainless Steel)
- 15.75 inch Shower Arm (304 Stainless Steel)
- Handheld Shower (304 Stainless Steel)
- 59 inch Shower Hose (304 Stainless Steel)
- Bathtub Spout (304 Stainless Steel)
- Handheld Shower Holder (Brass)
- Water Control Mixing Valve (Brass)
- Herrajes de montaje
Presupuesto
| Tipo de instalación | Montado en la pared |
| Finalizar | Negro mate |
| Material del cuerpo de la válvula | Latón |
| Shower Head Material | Acero inoxidable 304 |
| Material para ducha de mano | Acero inoxidable 304 |
| Handheld Holder Material | 304 Stainless Steel & Brass |
| Material de la manguera de ducha | Acero inoxidable 304 |
| Material del mango | Aleación de zinc |
| Longitud del brazo de ducha | 15.75 pulgadas |
| Diámetro del cabezal de ducha | 10 pulgadas |
| Hand Shower Hose Length | 59 pulgadas |
| Hose Connection Size | 1/2 inch NPT (American Standard) |
| Número de modelo del artículo | AM-S008AC-10MB |
Configuración (Instalación)
The MONDAWE shower set is designed for wall-mounted installation and uses American standard 1/2 inch NPT threads, compatible with most standard U.S. plumbing connections. Professional installation is recommended.
- Prepara la pared: Ensure the wall is properly prepared for plumbing and mounting the mixing valve.
- Install the Mixing Valve: Carefully install the brass water control mixing valve into the wall. Pay close attention to the depth of the valve to ensure it aligns correctly with the finished wall surface. The protective install plate may not always indicate the precise finished surface depth; independent verification is advised.
- Conectar líneas de agua: Connect the hot and cold water supply lines to the appropriate inlets on the mixing valve.
- Instalar el brazo y el cabezal de la ducha: Secure the 15.75-inch shower arm to the wall outlet and then attach the 10-inch square rainfall shower head.
- Instalar el caño de la bañera: Mount the bathtub spout to its designated wall connection.
- Install Handheld Shower Components: Attach the handheld shower holder to the wall. Connect the 59-inch shower hose to the mixing valve outlet and the handheld shower.
- Prueba de fugas: Once all components are installed, slowly turn on the main water supply and check all connections for leaks. Address any leaks immediately.
Instrucciones de funcionamiento
Your MONDAWE shower system features a multi-function mixer valve for easy control of water flow and output.
- Control de flujo de agua: The main handle on the mixing valve controls the water flow. Lift the handle up to turn on the water and increase flow, and push it down to decrease flow and turn off the water.
- Control de temperatura: Rotate the main handle left for hot water and right for cold water to adjust the desired temperature.
- Function Diverter: The knob above the main handle is the diverter. Rotate this knob to select your desired water outlet: rainfall shower head, high-pressure handheld shower, or tub spout.
Mantenimiento
Regular cleaning and maintenance will help preserve the finish and functionality of your shower system.
- Limpieza del acabado: To maintain the matte black finish, clean regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Boquillas de limpieza: The rainfall shower head and handheld shower are equipped with self-cleaning silicone jet nozzles. To remove calcium and lime build-up, simply wipe the nozzles with your finger or a soft cloth. This is particularly effective in areas with hard water.
- Mantenimiento de mangueras: Periodically check the shower hose for kinks or damage. Ensure it is free from twists to maintain proper water flow.
Solución de problemas
Si tiene problemas con su sistema de ducha, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| Baja presión de agua | Clogged nozzles; partially closed shut-off valve; debris in the system. | Clean the silicone nozzles by wiping them. Ensure shut-off valves are fully open. Flush the system if debris is suspected. |
| Fugas de conexiones | Loose connections; damaged O-rings or seals; incorrect thread sealant. | Tighten connections carefully. Inspect and replace any damaged O-rings or seals. Ensure proper use of plumber's tape or thread sealant. |
| Diverter Not Switching Functions | Internal debris; worn diverter cartridge. | Flush the system to remove debris. If the issue persists, the diverter cartridge may need inspection or replacement by a professional. |
Si estos pasos no resuelven el problema, comuníquese con el servicio de atención al cliente.
Información de garantía
Specific warranty details for the MONDAWE 10 Inch Matte Black Shower System are not provided in this document. Please refer to the product packaging or contact MONDAWE customer support for comprehensive warranty information.
Apoyo
For further assistance, technical support, or inquiries regarding your MONDAWE shower system, please refer to the contact information provided on the product packaging or the official MONDAWE websitio.
