VINGLI Criss Cross Office Chair

Información importante de seguridad

Lea atentamente todas las instrucciones antes de ensamblar y usar. Conserve este manual para futuras consultas.

• Siga siempre las instrucciones de montaje proporcionadas.
• Be cautious when adjusting and folding the armrests to avoid injury.
• No exceda la capacidad máxima de peso de 330 libras (150 kg).
• Keep the chair away from heat sources to prevent damage to the fabric.
• Asegúrese de que todos los tornillos y pernos estén bien apretados antes de usar. Revíselos periódicamente y apriételos según sea necesario.

Contenido del paquete

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact VINGLI customer support.

• Respaldo de la silla
• Cojín de asiento
• Apoyabrazos (2)
• Cilindro elevador de gas
• Base de estrella
• Ruedas (5)
• Placa de mecanismo
• Paquete de hardware (tornillos, arandelas, llave Allen)

Configuración y montaje

Assembly is required. It is recommended to have a clear, flat workspace. Sorting screws by size before starting can simplify the process.

1. Fije las ruedas a la base: Inserte cada una de las cinco ruedas en los orificios del extremo de la base de estrella hasta que encajen firmemente en su lugar.
2. Insertar elevador de gas: Coloque el cilindro de elevación de gas en el orificio central de la base de estrella.
3. Fije el mecanismo al asiento: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Secure it using the appropriate screws and the provided Allen wrench. Ensure the front of the mechanism faces the front of the seat.
4. Fije los apoyabrazos al asiento: Fije los reposabrazos a los lados del cojín del asiento con los tornillos correspondientes. Asegúrese de que estén correctamente orientados.
5. Fije el respaldo al asiento: Align the backrest with the mounting points on the seat cushion and armrests. Secure it using the remaining screws.
6. Conecte el asiento al elevador de gas: Coloque con cuidado el asiento ensamblado sobre el cilindro de elevación de gas, asegurándose de que esté centrado y estable.
7. Comprobación final: Verify all connections are tight and the chair is stable before use.

Image: Detailed diagram illustrating the dimensions of the VINGLI Criss Cross Office Chair, including seat width, backrest height, and overall chair height.

Instrucciones de funcionamiento

Ajuste de la altura del asiento

To adjust the seat height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up and pull the lever up. Release the lever at the desired height to lock it in place.

Apoyabrazos ajustables

The armrests can be adjusted in height and can also be flipped up 90 degrees. To adjust the height, press the button on the side of the armrest and move it up or down. To flip the armrests up, simply rotate them upwards until they lock into a vertical position. This allows the chair to be stored under a desk, saving space.

Imagen: Primer plano view demonstrating the multi-functional adjustable armrests, showing how to adjust their height and rotation angle.

Función de inclinación y control de tensión

The chair features a tilt function allowing the backrest to recline between 90 and 120 degrees. To activate the tilt, pull the lever on the left side of the chair outwards. Push the lever inwards to lock the chair in an upright position. The tilt tension knob, located under the seat, can be rotated to adjust the resistance of the reclining motion. Turn clockwise to increase tension (firmer tilt) and counter-clockwise to decrease tension (easier tilt).

Image: Illustration of the chair's tilting feature, showing the 90-120 degree tilt range and the tilt tension and lock/unlock controls.

Giro de 360° y movilidad

The chair is equipped with a 360-degree swivel function and smooth-rolling casters, allowing for effortless movement and rotation across various floor surfaces without noise or resistance.

Image: Depiction of the chair's 360-degree swivel capability and flexible casters for smooth mobility.

Mantenimiento

• Limpieza: Para la limpieza general, utilice un paño suave y seco.amp cloth with mild soap. Avoid harsh chemicals or abrasive cleaners, as they may damage the Chenille fabric. Spot clean spills immediately.
• Cuidado de la tela: The starry Chenille fabric is skin-friendly. To maintain its appearance, vacuum regularly with an upholstery attachment to remove dust and debris.
• Comprobación del hardware: Inspeccione periódicamente todos los tornillos y pernos para asegurarse de que estén bien apretados. Vuelva a apretar los sujetadores sueltos para mantener la estabilidad y la seguridad.
• Cuidado de las ruedas: Keep casters free of hair and debris to ensure smooth rolling. If casters become stiff, clean them and apply a silicone-based lubricant if necessary.

Solución de problemas

Presupuesto

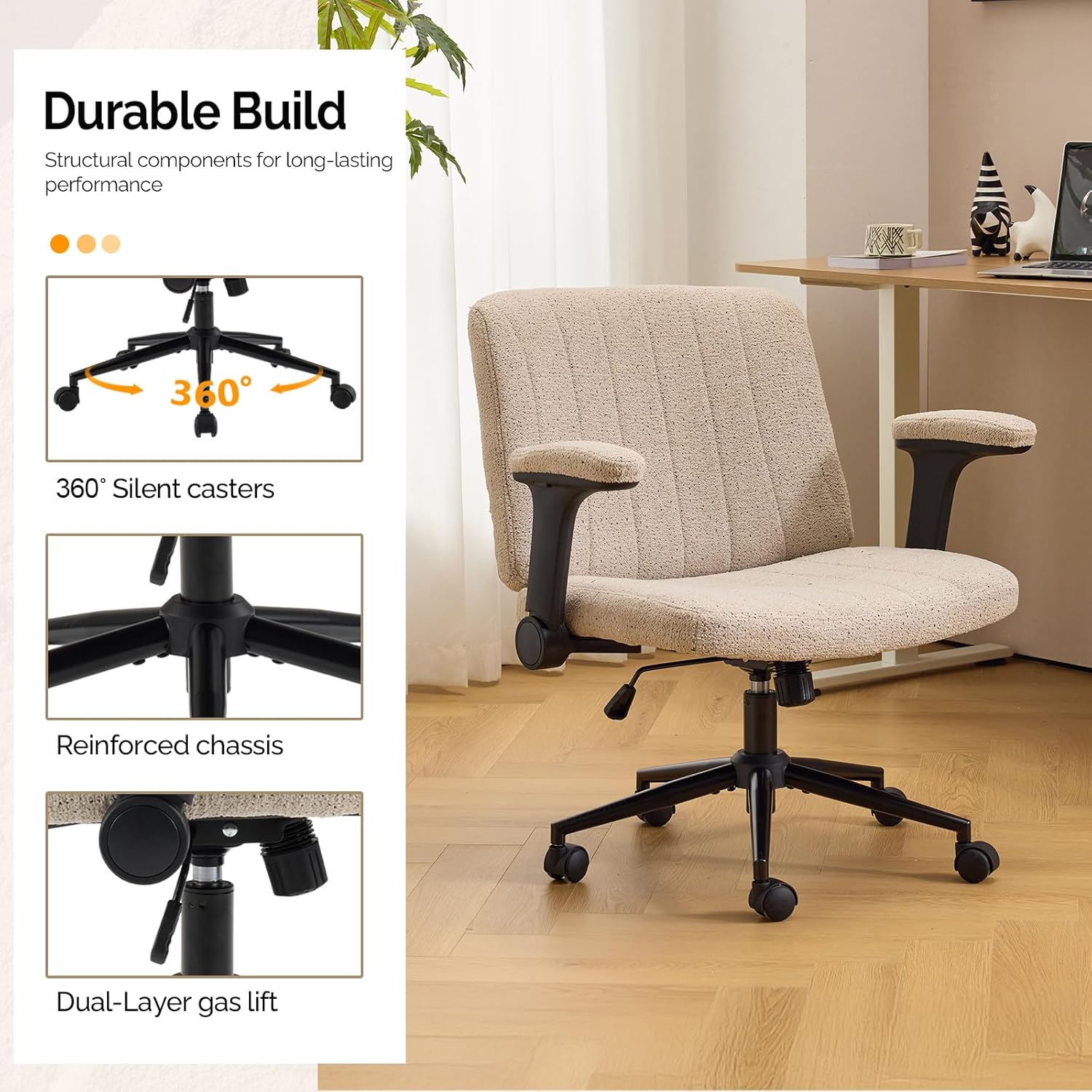

Image: Visual representation of the chair's durable construction, including 360-degree silent casters, reinforced chassis, and dual-layer gas lift.

Imagen: Sección transversal view detailing the cushion structure, composed of starry Chenille fabric, high-density foam, and a sturdy plank base.

Garantía y soporte

For warranty information, product support, or to order replacement parts, please contact VINGLI customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support information on the VINGLI official websitio o a través del minorista donde se compró el producto.
