EXknight Mini Keyboard M4 User Manual

Introducción

This manual provides detailed instructions for the setup, operation, and maintenance of your EXknight Mini Keyboard M4. This compact wireless Bluetooth keyboard is designed for compatibility with various devices, including smartphones, tablets, and PCs running iOS, Android, and Windows operating systems. Its portable design and responsive keys aim to enhance your typing experience across different environments.

Producto terminadoview

The EXknight Mini Keyboard M4 is a compact and lightweight input device. Below are visual representations of the product and its key features.

Figura 1: The EXknight Mini Keyboard M4, demonstrating its small form factor when held in an average adult hand.

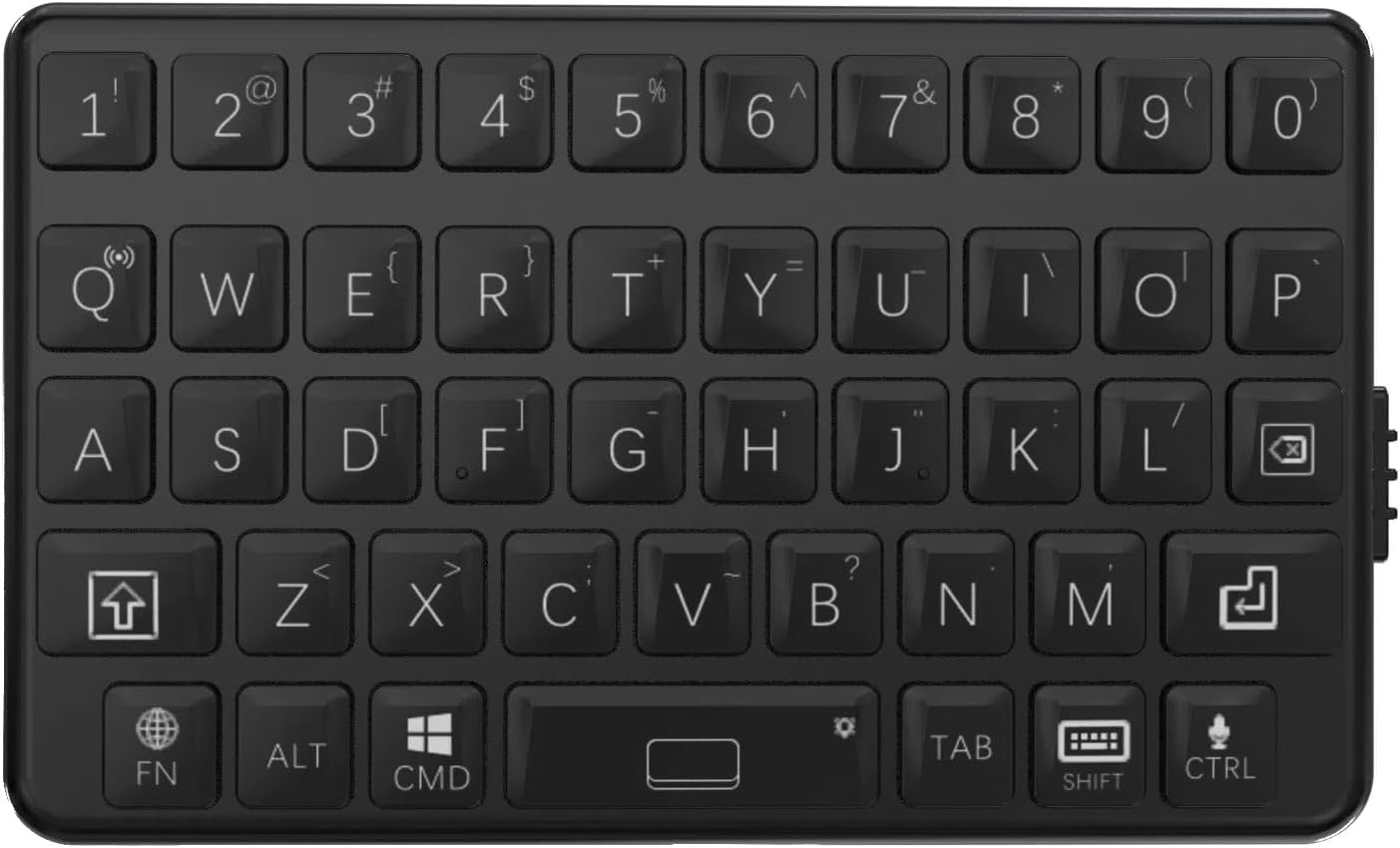

Figura 2: Un detallado view of the keyboard's QWERTY layout, including function keys and special characters.

Figura 3: The physical dimensions of the keyboard, measuring 7.5 cm in length and 4.5 cm in width.

Figura 4: Key design principles of the M4 Mini Keyboard: Compact Design, Portable, and Classic Tactile Keys. It emphasizes efficient space utilization, ease of transport, and a comfortable typing experience.

Figura 5: Lado view of the EXknight Mini Keyboard M4, illustrating the location of the charging port.

Presupuesto

Configuración

1. Carga del teclado

Before initial use, fully charge the EXknight Mini Keyboard M4. Connect the provided charging cable to the keyboard's charging port (refer to Figure 5 for port location) and to a standard USB power source. The charging indicator light will illuminate during charging and typically turn off or change color when fully charged. A full charge takes approximately 2 hours and provides up to 12 hours of continuous use.

2. Emparejamiento Bluetooth

1. Asegúrese de que el teclado esté suficientemente cargado.
2. Turn on the keyboard using the power switch (location typically on the side or back). A status indicator light may flash, indicating it's in pairing mode.
3. En su dispositivo (teléfono inteligente, tableta, PC), navegue hasta la configuración de Bluetooth.
4. Habilite Bluetooth y busque dispositivos disponibles.
5. Select "EXknight M4" or a similar name from the list of found devices.
6. If prompted, enter the pairing code displayed on your device into the EXknight Mini Keyboard M4 and press Ingresar.
7. Once paired, the keyboard's indicator light will typically stop flashing and remain solid, or turn off, indicating a successful connection.

The keyboard features automatic device recognition for iOS, Android, and Windows, eliminating the need for drivers.

Instrucciones de funcionamiento

Mecanografía básica

The EXknight Mini Keyboard M4 features a QWERTY layout with a tactile key feel for comfortable and accurate typing. Press keys firmly for optimal response.

Function Keys and Special Characters

• Tecla Fn: El Fn key is used in combination with other keys to access secondary functions or special characters. For example, to input symbols not directly printed on the main keycap, press and hold Fn and then press the corresponding key.
• Cambio de sistema operativo: The keyboard automatically recognizes the operating system (iOS/Android/Windows). However, if manual switching is needed, specific key combinations might be available (refer to the keyboard's keycap markings for OS-specific function keys, e.g., Fn + Q para iOS, Fn + W para Android, Fn + E para Windows).
• Control de luz de fondo: Some models may feature a backlight. To activate or adjust the backlight, press and hold the Espacio key. Note that backlight functionality may vary by product batch, with some units having full backlight and others only partial (e.g., top two rows).
• Capital Letters: To type capital letters, use the Cambio key as you would on a standard keyboard.
• Cambio de idioma: To switch between input languages (e.g., English and Japanese), press the Cambio tecla dos veces en rápida sucesión.

Note: Due to the compact design, some keys may have multiple functions. Refer to the keycap legends for all available functions. For Windows users, some CTRL key combinations might behave differently compared to a full-sized keyboard.

Mantenimiento

• Limpieza: Utilice un paño suave y seco para limpiar la superficie del teclado. Para la suciedad difícil, utilice un paño ligeramente seco.amp cloth with mild soap can be used, ensuring no liquid enters the keyboard. Do not use harsh chemicals or abrasive cleaners.
• Almacenamiento: Guarde el teclado en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Cuidado de la batería: Para prolongar la vida útil de la batería, evite descargar completamente el teclado con frecuencia. Cárguelo regularmente, incluso si no lo usa constantemente.

Solución de problemas

Keyboard does not turn on:

Ensure the keyboard is fully charged. Connect it to a power source and allow it to charge for at least 30 minutes before attempting to turn it on again.

No se puede emparejar a través de Bluetooth:

• Make sure Bluetooth is enabled on your device and the keyboard is in pairing mode.
• Asegúrese de que el teclado esté dentro del rango efectivo de Bluetooth (normalmente 10 metros).
• Olvide el dispositivo de la configuración de Bluetooth de su dispositivo e intente emparejarlo nuevamente.
• Reinicie tanto el teclado como su dispositivo.

Keys are not responding or typing incorrectly:

• Verifique el nivel de batería. Una batería baja puede afectar el rendimiento.
• Asegúrese de que el teclado esté correctamente emparejado y conectado a su dispositivo.
• Verify that the correct operating system mode is selected on the keyboard (if applicable).
• Limpie cualquier residuo alrededor de las teclas.

Backlight not working or only partially lit:

• Mantenga pulsado el Espacio key to activate or cycle through backlight modes.
• Ensure the keyboard has sufficient battery charge, as backlighting consumes power.
• Note that backlight functionality may vary by product batch; some units may have full backlight, while others may only illuminate specific sections (e.g., top two rows).

Garantía y soporte

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official EXknight website. Contact information for customer service is typically available on the product packaging or the brand's online presence.

Para obtener más ayuda, también puedes contactar directamente al vendedor a través de la plataforma donde compraste el producto.
