1. Introducción
Thank you for choosing the SEBSON Outdoor Motion Detector. This device is designed for reliable outdoor use, featuring an IP65 rating for weather resistance and a 240° infrared sensor. It is programmable for ignition duration, ambient brightness, and detection range, making it suitable for various lighting applications with both incandescent and LED bulbs. This manual provides essential information for safe installation, operation, and maintenance of your motion detector.

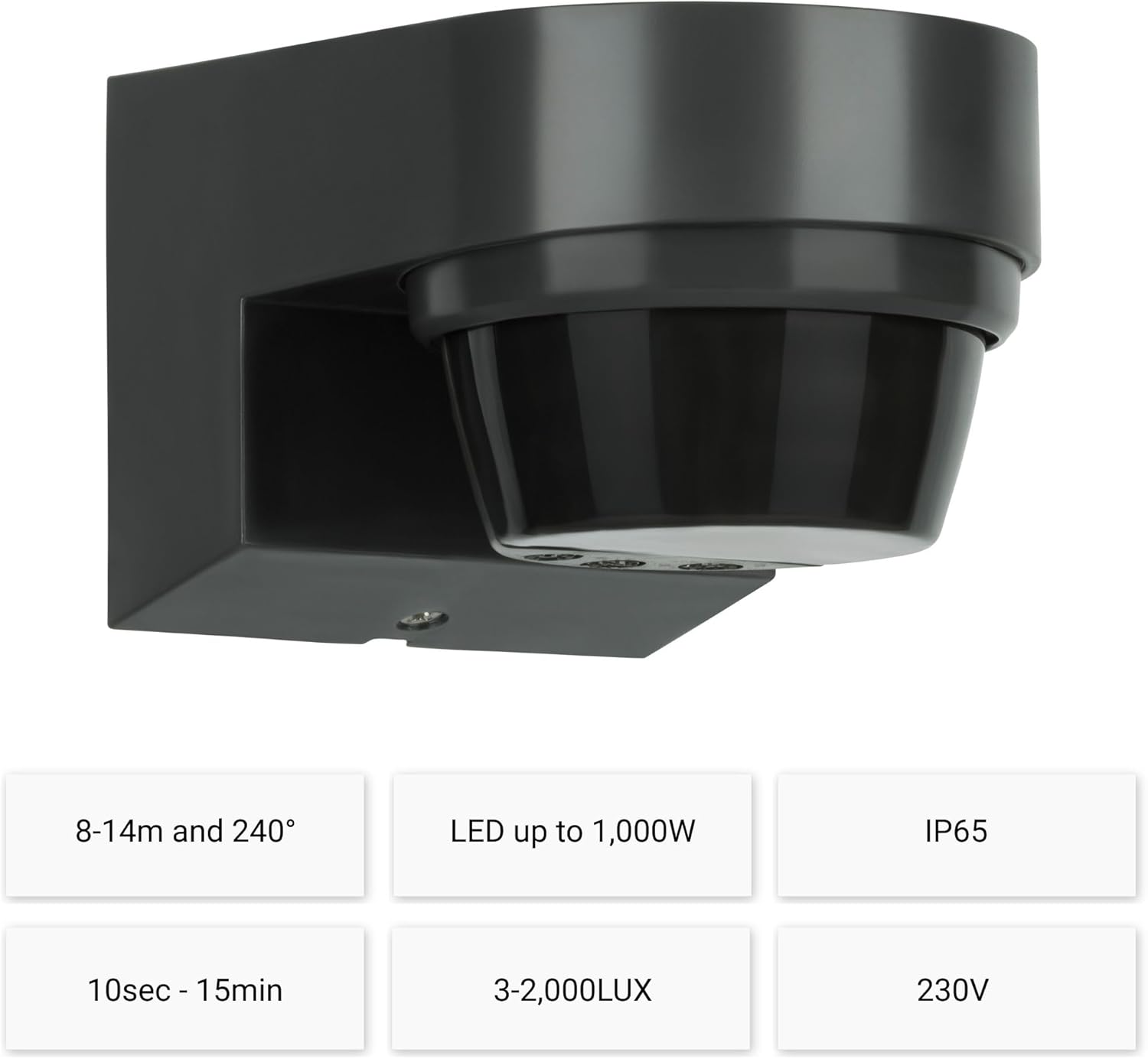

Imagen 1: Frente view of the SEBSON Outdoor Motion Detector, showcasing its compact design and sensor lens.
2. Instrucciones de seguridad
Lea atentamente estas instrucciones de seguridad antes de la instalación y el uso. El incumplimiento de estas instrucciones podría provocar descargas eléctricas, incendios u otros peligros.
- Instalacion electrica: La instalación debe ser realizada por un electricista calificado de acuerdo con las regulaciones de cableado locales.
- Desconexión de energía: Desconecte siempre la fuente de alimentación principal antes de realizar cualquier trabajo de instalación, mantenimiento o reparación.
- Volumentage: Asegúrese de que el volumen de suministrotage matches the detector's specified voltage (230 voltios).
- Uso en exteriores: The device is IP65 rated for outdoor use, protecting against dust and water jets. Ensure all connections are properly sealed.
- Montaje: Mount the detector securely on a stable wall surface.
- Niños: Mantenga los materiales de embalaje y las piezas pequeñas fuera del alcance de los niños.
3. Producto terminadoview
The SEBSON Outdoor Motion Detector features three adjustable dials for precise control over its operation:
- LUXURIO: Adjusts the ambient brightness threshold (3-2000 LUX) at which the detector activates.
- SENTIDO: Controls the detection range (8-14 meters).
- TIEMPO: Sets the duration (10 seconds to 15 minutes) for which the connected light remains on after motion is detected.
Imagen 2: Primer plano view of the three adjustment dials (LUX, SENS, TIME) located on the underside of the motion detector.
4. Configuración e instalación
4.1 Montaje del detector
The motion detector is designed for wall surface mounting. Choose a stable location that provides the desired detection coverage and is within the recommended mounting height.
- Disconnect the main power supply before starting installation.
- Separate the mounting base from the main unit.
- Marque los puntos de perforación en la pared utilizando la base de montaje como plantilla.
- Perfore agujeros e inserte los tacos de pared adecuados (si es necesario).
- Secure the mounting base to the wall using screws. Ensure the 'UP' arrow on the base points upwards.
Imagen 3: Trasera view of the mounting base, showing the 'UP' indicator and screw holes for wall attachment.
Image 4: Diagram illustrating the width of the mounting plate, which is 60 mm.
4.2 Cableado
This motion detector uses a 3-wire connection. Ensure all wiring is done with the power supply disconnected.
- Connect the Live (L) wire from the power supply to the 'L' terminal on the detector.
- Connect the Neutral (N) wire from the power supply to the 'N' terminal on the detector.
- Connect the Switched Live (L') wire from the detector to the Live terminal of your light fixture.
- Connect the Neutral wire from the power supply to the Neutral terminal of your light fixture.
- Asegúrese de que todas las conexiones estén bien ajustadas y aisladas adecuadamente.
4.3 Consideraciones de colocación
Optimal performance depends on correct placement:
- Altura de montaje: The recommended mounting height is between 1.80 meters and 2.50 meters for optimal detection.
- Área de detección: The sensor has a 240° detection angle and a range of 8-14 meters. Position it to cover the desired area without unnecessary triggers.
- Evite Obstrucciones: Do not mount the detector near large objects, trees, or walls that could obstruct the detection field.
- Factores ambientales: Avoid mounting near direct sunlight, heat sources (e.g., vents, outdoor units), or areas with constant movement (e.g., busy roads) to prevent false triggers.
Image 5: Detection area diagram, showing the 240° angle, maximum 14m range, and recommended mounting height of 1.80m to 2.50m.

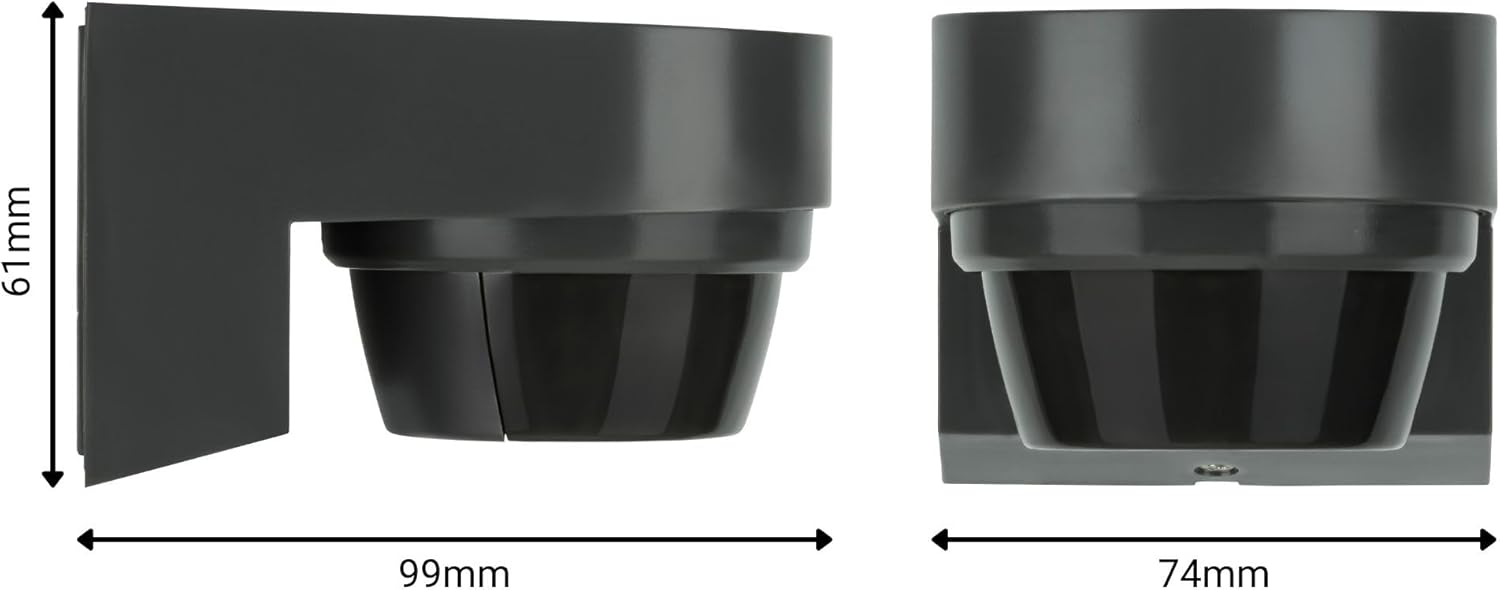

Imagen 6: Lateral view dimensions of the motion detector, indicating a length of 99mm and a height of 61mm.
5. Instrucciones de funcionamiento
After installation, restore power and adjust the settings using the three dials on the underside of the detector (refer to Image 2).
- LUX (Ambient Brightness): Turn the dial towards the 'sun' symbol for activation in brighter conditions (up to 2000 LUX) or towards the 'moon' symbol for activation only in darker conditions (down to 3 LUX).
- TIME (Ignition Duration): Rotate the dial to set how long the light remains on after motion is detected. Settings range from 10 seconds to 15 minutes.
- SENS (Rango de detección): Adjust this dial to control the sensitivity and effective detection distance, from 8 meters to 14 meters. Test different settings to find the optimal range for your environment.
Pruebas: It is recommended to test the detector's settings during both day and night to ensure it operates as desired. You can set the LUX to maximum (sun symbol) for daytime testing of range and time duration, then adjust it to the desired ambient light level for normal operation.
6. Mantenimiento
The SEBSON Outdoor Motion Detector requires minimal maintenance.
- Limpieza: Limpie periódicamente la lente y la carcasa del sensor con un paño suave.amp paño para quitar el polvo y la suciedad. No utilice limpiadores abrasivos ni disolventes.
- Inspección: Regularly check the detector for any signs of damage, loose connections, or wear.
- Obstrucciones: Ensure no new obstructions (e.g., growing plants, debris) are blocking the sensor's field of view.
7. Solución de problemas
If you experience issues with your motion detector, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| La luz no se enciende cuando se detecta movimiento. |
|
|
| La luz permanece encendida constantemente. |
|
|
| La luz se enciende sin movimiento aparente. |
|
|
| El rango de detección es demasiado corto/largo. |
|
|
Si el problema persiste después de probar estas soluciones, comuníquese con el servicio de atención al cliente o con un electricista calificado.
8. Especificaciones
Technical specifications for the SEBSON Outdoor Motion Detector IR_OUT_IA:
| Característica | Especificación |
|---|---|
| Marca | SEBSON |
| Número de modelo | IR_OUT_IA |
| Fuente de poder | Eléctrico con cable |
| Volumentage | 230 voltios |
| Peso del artículo | 164 gramos (aprox. 5.8 onzas) |
| Dimensiones del producto | 3.9 x 2.91 x 2.4 pulgadas (aprox. 99 x 74 x 61 mm) |
| Alcance máximo | 14 metros |
| Ángulo de detección | 240° |
| LUX Adjustment Range | 3 - 2000 LUX |
| Ajuste de retardo de tiempo | 10 segundos - 15 minutos |
| Clasificación IP | IP65 |
| Carga máxima (incandescente) | 2000 W |
| Carga máxima (LED) | 1000 W |
| Tipo de montaje | Montaje en pared |
| Dispositivos compatibles | Light, Security System, Smart Home Hub |
| Usos recomendados | Garden, Driveway, Garage |
9. Garantía y soporte
Para obtener información sobre la garantía y atención al cliente, consulte la documentación incluida con su compra o póngase en contacto con su vendedor. Conserve el comprobante de compra para cualquier reclamación de garantía.
