UGREEN 8K@60Hz DisplayPort to HDMI Adapter (Model DP134) Instruction Manual

1. Producto terminadoview

The UGREEN 8K@60Hz DisplayPort to HDMI Adapter (Model DP134) facilitates a unidirectional connection from a DisplayPort 1.4 source to an HDMI 2.1 display. This adapter supports high-resolution video up to 8K at 60Hz, including backward compatibility with 4K at 240Hz, 2K at 240Hz, and 1080P at 480Hz, ensuring clear visuals and synchronized audio. It is designed for connecting devices like PCs, laptops, or graphics cards to HDMI displays such as projectors, monitors, or HDTVs.

Image: UGREEN DisplayPort to HDMI Adapter illustrating its unidirectional nature from DP 1.4 to HDMI 2.1, compatible with desktops, graphics cards, laptops as sources, and projectors, monitors, HDTVs as displays.

Image: The adapter connected, demonstrating support for 8K@60Hz, 4K@240Hz, 2K@240Hz, and 1080P@480Hz resolutions with audio and video synchronization.

2. Características principales

• 8K@60Hz Ultra HD and Audio Synchronization: Supports resolutions up to 8K@60Hz, 4K@240Hz, 2K@240Hz, and 1080P@480Hz, providing realistic 3D video effects and high-quality audio.
• Uni-directional Transmission: Connects DisplayPort source devices (PC, laptop, graphics card) to HDMI display devices (projector, VR headset, HDTV). Does not support HDMI sources to DP displays.
• Tecnologías avanzadas: Supports DisplayPort 1.4, HDMI 2.1, HDCP 2.2, DSC1.2a, and HDR 10+ for vivid images and enhanced visual experiences.
• Conectar y usar: Requires no drivers for installation, allowing for quick synchronization of video and audio.
• Construcción duradera: Features a slim aluminum housing for heat dissipation, a braided sheath for flexibility, tinned copper conductors for conductivity, and aluminum foil + Al/Mg braided shielding for stable signal transmission.

Image: Demonstrating immersive audio and visual experience with Dolby Atmos, HDCP 2.3, and HDR+ support.

Image: Illustrating support for high refresh rates without lag, including G-SYNC, ALLM, QMS, and QFT.

3. Configuración e instalación

The UGREEN DisplayPort to HDMI Adapter is designed for simple plug-and-play operation. Follow these steps to connect your devices:

1. Connect to DisplayPort Source: Insert the DisplayPort male connector of the adapter into the DisplayPort output port of your source device (e.g., PC, laptop, graphics card).


   Image: Step 1 - Plug the adapter into the DisplayPort source.

2. Conecte el cable HDMI: Plug your HDMI cable into the HDMI female port of the adapter.


   Image: Step 2 - Plug an HDMI cable into the adapter.

3. Connect to HDMI Display: Connect the other end of your HDMI cable to the HDMI input port on your display device (e.g., monitor, projector, HDTV).


   Image: Step 3 - Connect the HDMI cable to your display.

Note: Both the DisplayPort source device and the HDMI monitor must support the desired resolution and refresh rate (e.g., 8K@60Hz) to achieve optimal performance.

4. Instrucciones de funcionamiento

Once connected, the adapter will automatically detect and transmit the video and audio signal from your DisplayPort source to your HDMI display. No additional drivers or software are required for basic operation.

Modos de visualización

Your operating system typically allows for different display configurations:

• Modo extendido: This mode allows you to extend your desktop across multiple screens, providing more workspace for multitasking.
• Modo espejo: This mode duplicates your primary display onto the secondary screen, which is ideal for presentations, sharing content, or watching videos with others.

Image: Demonstrating Extended and Mirror display modes for increased efficiency and enjoyment.

5. Compatibilidad

This adapter is designed for specific DisplayPort to HDMI connections. Please review the compatible and incompatible devices below:

Compatible Devices (DisplayPort Source)

• Computadoras de escritorio
• Graphics Cards (e.g., AMD, NVIDIA, RTX 50/30/40, RX 6000/7000 series)
• Laptops (e.g., ThinkPad T14 Gen 4)
• Any device with a DisplayPort output interface

Compatible Devices (HDMI Display)

• Proyectores
• Monitors (e.g., UltraSharp)
• Televisores de alta definición
• Cascos de realidad virtual

Incompatible Devices (HDMI Source or other port types)

• MacBook (if using HDMI as source)
• Gaming Consoles: PS5, PS4, Switch, Switch 2, Xbox (these are HDMI source devices)
• GoPro (HDMI source device)
• Docking stations (unless they specifically have a DisplayPort output)
• Mini DP, Micro HDMI, USB-A (different connector types)
• DP Monitors (this adapter converts DP to HDMI, not the other way around)

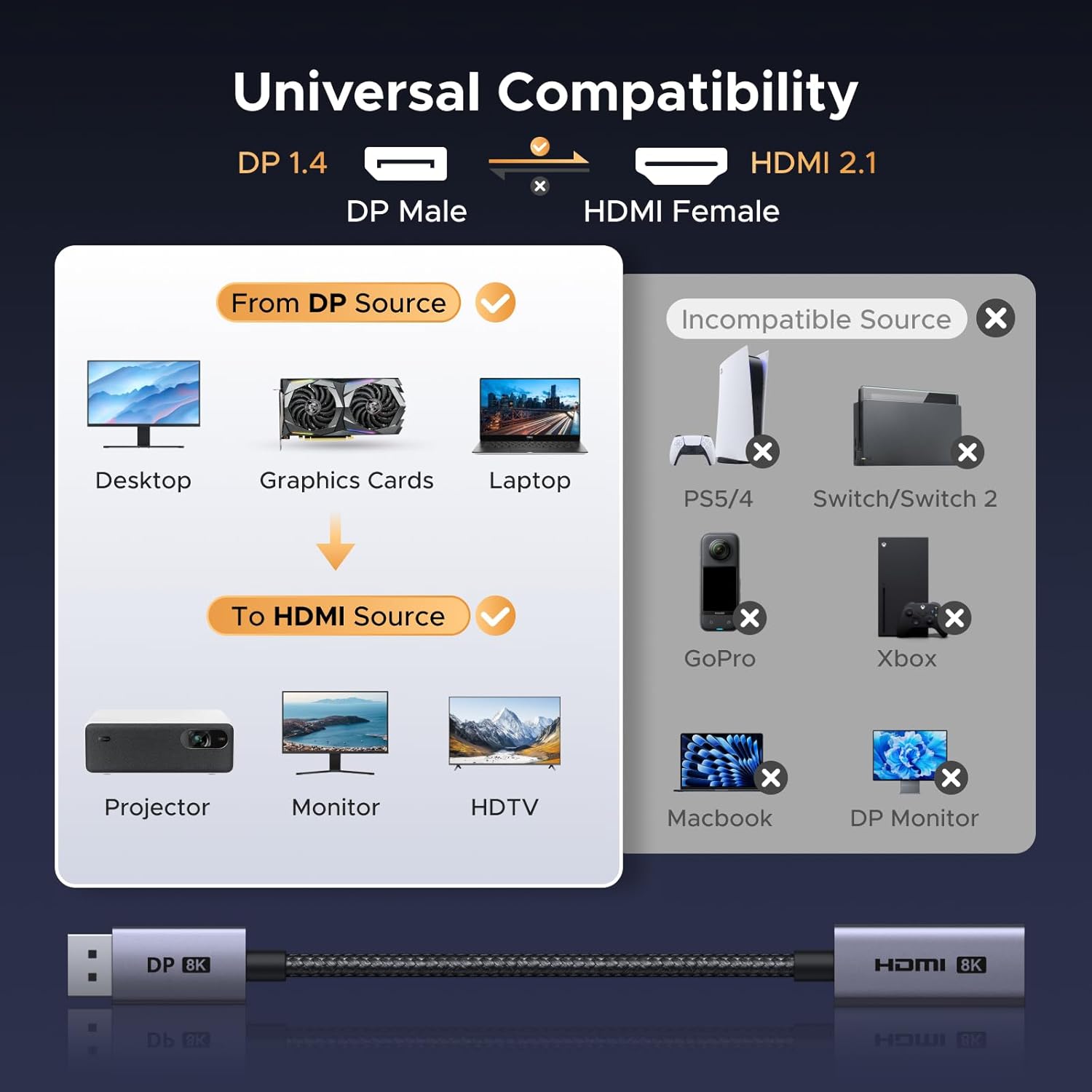

Image: Universal Compatibility diagram, detailing supported DisplayPort sources and HDMI displays, alongside incompatible HDMI source devices.

6. Solución de problemas

Si encuentra problemas, consulte las siguientes soluciones comunes:

No Signal or Incorrect Resolution

• Ensure both the DisplayPort source device and the HDMI display support the desired resolution and refresh rate. For example, to achieve 8K@60Hz, both devices must support it.
• Verify that the adapter is securely connected to both the DisplayPort output of your source and the HDMI cable leading to your display.
• Check your display settings on your computer to ensure the correct resolution and refresh rate are selected for the connected display.
• Confirm the adapter is unidirectional (DP to HDMI only). It will not work if connecting an HDMI source to a DP display.

Pantalla parpadeante o inestable

• Ensure all cables are securely connected. Loose connections can cause signal instability.
• Try a different HDMI cable, as cable quality can affect signal integrity, especially at higher resolutions and refresh rates.
• Reduce the resolution or refresh rate in your display settings to see if the issue persists. This can help determine if the problem is related to bandwidth limitations.
• Actualice los controladores de su tarjeta gráfica a la última versión.
• Note for Linux users: Some users have reported issues with VRR (Variable Refresh Rate) or achieving full refresh rates (e.g., 144Hz) on Linux with AMD GPUs, potentially due to kernel patch requirements. Check for the latest kernel updates or community forums for specific solutions.

7. Especificaciones del producto

Image: Resolution and cable length/AWG requirements for optimal performance.

8. Cuidado y mantenimiento

The UGREEN DisplayPort to HDMI Adapter is built with durable materials for long-lasting performance. Proper care will help maintain its functionality:

• Almacenamiento: Guarde el adaptador en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Limpieza: Use a soft, dry cloth to clean the adapter and connectors. Avoid using liquid cleaners or abrasive materials.
• Manejo: Avoid excessive bending or twisting of the cable to prevent internal damage. Always grasp the connector housing when plugging or unplugging the adapter.
• Protección: The aluminum housing and braided cable are designed for durability and heat dissipation, contributing to the product's longevity.

Image: Features demonstrating the adapter's durable construction, including bending test results, aluminum material, nickel-plated connectors, and nylon braided cable.

9. Garantía y soporte

Para obtener información sobre la garantía y soporte técnico, consulte el sitio web oficial de UGREEN. webSitio web o contacte directamente con el servicio de atención al cliente de UGREEN. Conserve su recibo de compra para cualquier reclamación de garantía.
