U-MAX 10' x 14' Outdoor Lean-to Gazebo Instruction Manual

1. Introducción

Thank you for choosing the U-MAX 10' x 14' Outdoor Lean-to Gazebo. This wall-mounted gazebo is designed to provide a durable and stylish outdoor living space, offering protection from various weather conditions. This manual provides detailed instructions for assembly, operation, maintenance, and safety to ensure optimal performance and longevity of your gazebo.

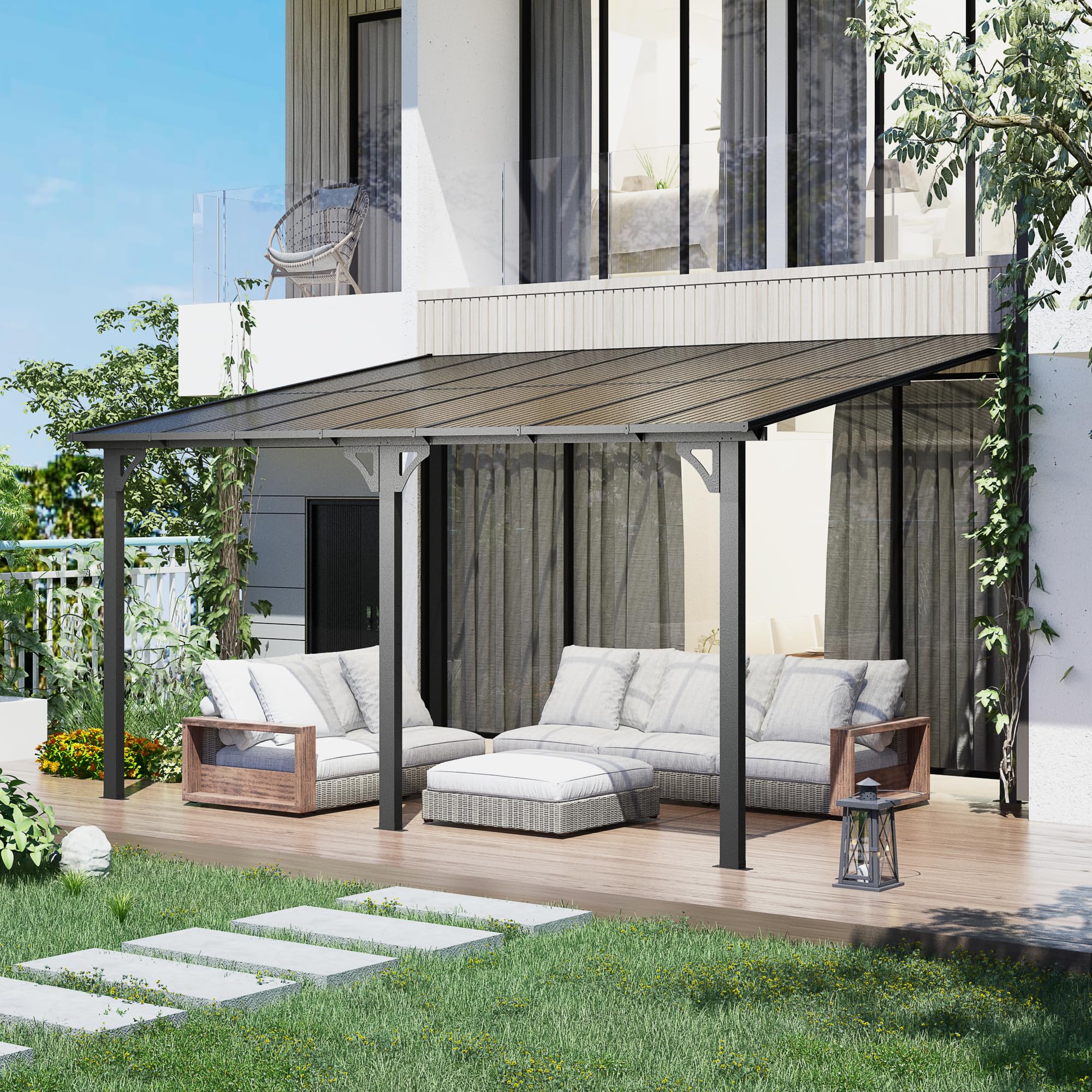

Image: The U-MAX 10' x 14' Outdoor Lean-to Gazebo providing a shaded outdoor living area.

2. Información importante de seguridad

• Always ensure the gazebo is securely attached to the wall and stabilized on the ground as instructed.
• Do not use during heavy winds or storms. Disassemble or secure the roof panels if extreme weather is anticipated.
• Mantenga a los niños y las mascotas alejados del área de ensamblaje durante la instalación.
• Inspeccione periódicamente todas las conexiones y sujetadores para asegurarse de que permanezcan firmes y seguros.
• No cuelgue objetos pesados ​​del marco del mirador.

3. Contenido del paquete

The U-MAX Lean-to Gazebo is shipped in multiple packages. Verify all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

Los componentes típicos incluyen:

• Metal Frame Components (posts, beams, crossbars)
• Paneles de techo de policarbonato
• Conectores y soportes
• Elementos de fijación (tornillos, pernos, arandelas, tuercas)
• Anchoring Hardware (for wall and ground)
• Tools (Allen key, wrench - may require additional tools like a drill)

4. Configuración y montaje

The U-MAX Lean-to Gazebo is designed for seamless installation. It is recommended to have at least two people for assembly. Follow the step-by-step instructions provided in the included manual and refer to the video guides for visual assistance.

Pasos clave para el montaje:

1. Prepare el área: Ensure the installation area is level and clear of obstructions. Identify the wall where the gazebo will be mounted.
2. Montar el marco: Connect the main support posts and beams using the provided fasteners. Do not fully tighten screws until all components are aligned.
3. Fijar a la pared: Securely attach the wall-mounted side of the gazebo frame to your house wall using the provided anchors. Ensure the wall structure can support the weight and forces.
4. Instalar paneles de techo: Carefully slide the polycarbonate roof panels into the designated channels on the frame. Pay attention to the orientation of the panels for proper water drainage.
5. Fijar a tierra: Anchor the freestanding posts to the ground (e.g., concrete patio) as instructed to ensure stability against wind.
6. Ajuste final: Una vez que todos los componentes estén en su lugar y alineados, apriete completamente todos los tornillos y pernos.

Image: The wall-mounted design allows for secure attachment to a building structure.

5. Instrucciones de funcionamiento

The U-MAX Lean-to Gazebo is designed for passive operation, providing continuous shade and weather protection. No active adjustments are typically required for the roof panels.

Características principales:

• Tilted Roof Design: The roof is designed with a tilt to ensure efficient rainwater runoff, preventing pooling and maintaining waterproof performance.
• Transmision de luz: The polycarbonate roof panels transmit light while blocking 99% of UV rays, offering all-around protection and indirect light for plants.

Image: The tilted roof design ensures efficient water drainage and waterproof performance.

6. Mantenimiento y cuidado

Proper maintenance will extend the life and appearance of your U-MAX Gazebo.

Mantenimiento general:

• Limpieza: Clean the roof panels and frame regularly with mild soap and water. Avoid abrasive cleaners or tools that could scratch the surfaces.
• Carga de nieve: The gazebo is designed to withstand up to 6 lbs/sq.ft of snow (approximately 7 inches of heavy snow). In areas with heavy snowfall, it is advisable to regularly clear accumulated snow from the roof to prevent excessive load.
• Inspección: Periodically check all bolts, screws, and connections for tightness. Re-tighten as necessary to maintain structural integrity.
• Prevención de óxido: The metal frame is designed for durability. However, regular cleaning and inspection for any signs of rust can help prolong its lifespan.

Image: The gazebo is built to withstand various weather conditions, including snow and rain.

7. Solución de problemas

If you encounter issues with your U-MAX Lean-to Gazebo, consider the following common solutions:

• Problemas de estabilidad: Ensure all anchoring points (wall and ground) are securely fastened. Verify that all frame connections are tightened.
• Fuga de agua: Check that all roof panels are correctly installed and seated in their channels. Inspect for any gaps or damage to the panels or sealing.
• Partes faltantes: Refer to the package contents list. If parts are missing, contact U-MAX customer support with your product model and purchase details.
• Dificultad durante el montaje: Review the instruction manual and assembly videos carefully. Ensure you are using the correct fasteners for each step and that components are oriented correctly.

8. Especificaciones

Image: Detailed dimensions of the U-MAX 10' x 14' Lean-to Gazebo.

9. Garantía y atención al cliente

U-MAX provides a one-year warranty on all products. For any product questions, technical assistance, or warranty claims, please contact U-MAX customer support. Our expert technical team offers remote assistance and is available 24/7 to help you.

Please have your model number (16304BK) and purchase information ready when contacting support.
