GOOLOO GT6000 Jump Starter & DS200 OBD2 Scanner User Manual

1. Introducción

This manual provides detailed instructions for the safe and effective use of your GOOLOO GT6000 6000A Jump Starter and GOOLOO DEEPSCAN DS200 OBD2 Diagnostic Scanner. Please read this manual thoroughly before operating the devices and retain it for future reference.

The GOOLOO GT6000 is a powerful portable jump starter designed to start vehicles with dead batteries, while also serving as a portable power bank. The GOOLOO DEEPSCAN DS200 is a compact OBD2 scanner that connects wirelessly to your smartphone, providing comprehensive vehicle diagnostics and maintenance functions.

Image 1.1: The GOOLOO GT6000 Jump Starter and GOOLOO DEEPSCAN DS200 OBD2 Scanner.

2. Información importante de seguridad

Always observe the following safety precautions when using the GOOLOO GT6000 Jump Starter and DS200 OBD2 Scanner to prevent injury or damage to the devices or your vehicle.

• Lea todas las instrucciones antes de usar.
• Mantener fuera del alcance de los niños.
• Do not expose the devices to rain or extreme temperatures.
• No desmonte ni modifique los dispositivos.
• Asegúrese de que haya una ventilación adecuada durante el uso y la carga.
• Wear eye protection when working with vehicle batteries.
• Evite provocar un cortocircuito en el arrancador auxiliar.amps.
• Use the jump starter only for 12V lead-acid batteries.

Image 2.1: The GT6000 Jump Starter features multiple safety protections including over-charge, short-circuit, and reverse-polarity protection.

3. GOOLOO GT6000 Jump Starter

3.1. Producto terminadoview

The GT6000 is a high-capacity jump starter with a 6000A peak current, capable of starting all gas engines and diesel engines up to 12L. It also functions as a portable power bank with 100W bi-directional fast charging.

Image 3.1: Diagram showing the ports and controls of the GT6000 Jump Starter, including the BOOST button, jump cable socket, DC port, USB output ports, and IN/OUT PD100W port.

Image 3.2: The 3.2-inch LED display on the GT6000 shows battery level, charging power, low current mode, 'Ready to Start' status, low temperature reminder, and battery clips reversed warning.

3.2. Carga del GT6000

Before first use, fully charge the GT6000. It supports 100W bi-directional fast charging. A full charge from 0-100% takes approximately 1.4 hours.

1. Connect the provided USB-C cable to the IN/OUT PD100W port on the GT6000.
2. Connect the other end of the cable to a compatible 100W USB-C power adapter (a 100W car charger is included).
3. La pantalla LED mostrará el estado de carga y el porcentaje de batería.tage.

Image 3.3: The GT6000 charging, indicating 100W super fast charging capabilities.

3.3. Funcionamiento del arrancador auxiliar

Follow these steps to jump-start a vehicle with a dead battery:

1. Insertar: Insert the smart jumper cable plug into the jump cable socket on the GT6000. Ensure a secure connection.
2. Conectar: Conecte el cable rojoamp al terminal positivo (+) de la batería del vehículo y al cable negroamp al terminal negativo (-). Asegúrese de que el clamps are firmly attached. If the LED display shows "Battery Clips Reversed", recheck the connections.
3. Comenzar: Once the GT6000 display shows "READY", start your car engine. If the engine does not start immediately, wait 20-30 seconds and try again. Do not attempt more than 3 consecutive jump starts.
4. Eliminar: Una vez que el vehículo arranque, desconecte el cable deamps from the car battery first, then remove the jumper cable from the GT6000.

Image 3.4: Visual guide for the three steps to jump start your vehicle using the GT6000.

3.4. Usar como banco de energía

The GT6000 can charge various electronic devices via its USB output ports and the bi-directional USB-C port.

• Connect your device's charging cable to one of the GT6000's output ports (5V/2.4A, 5V/9V/12V, or IN/OUT PD100W USB-C).
• The GT6000 will automatically begin charging your device.

Image 3.5: The GT6000 functioning as a portable power bank, charging a laptop and smartphone.

3.5. Funciones de la linterna LED

The GT6000 includes an integrated LED flashlight with multiple modes:

• Luz normal: Mantenga presionado el botón de encendido durante 3 segundos para encender la linterna.
• Luz estroboscópica: Presione brevemente el botón de encendido nuevamente para cambiar al modo estroboscópico.
• Señal SOS: Short press the power button a third time to activate the SOS signal mode.
• Apagar: Short press the power button a fourth time or press and hold for 3 seconds to turn off the flashlight.

3.6. GT6000 Specifications

4. GOOLOO DEEPSCAN DS200 OBD2 Scanner

4.1. Producto terminadoview

The DS200 is a wireless Bluetooth OBD2 scanner designed for comprehensive vehicle diagnostics. It connects to your smartphone via an app and supports full system diagnostics, bidirectional control, and various maintenance services.

4.2. Setup & App Installation

To begin using your DS200 scanner, you need to download and install the GOOLOO DEEPSCAN app on your smartphone.

1. Descargar aplicación: Buscar "GOOLOO DEEPSCAN" in the Apple App Store (for iOS devices) or Google Play Store (for Android devices).
2. Instalar aplicación: Descargue e instale la aplicación.
3. Registrarse/Iniciar sesión: Siga las instrucciones de la aplicación para registrar una cuenta o iniciar sesión si ya tiene una.

Image 4.1: The DS200 scanner and instructions for downloading the GOOLOO DEEPSCAN app from app stores.

4.3. Conexión a su vehículo

The DS200 connects to your vehicle's OBD2 port, typically located under the dashboard on the driver's side.

1. Locate your vehicle's 16-pin OBD2 port.
2. Plug the DS200 scanner firmly into the OBD2 port. The scanner will power on automatically.
3. Turn on your vehicle's ignition (engine off or running, depending on the diagnostic task).
4. Open the GOOLOO DEEPSCAN app on your smartphone and follow the prompts to connect to the DS200 via Bluetooth.

Image 4.2: The DS200 scanner connected to a vehicle's OBD2 port, displaying diagnostic information on a smartphone.

4.4. Funciones básicas de diagnóstico

Once connected, the DS200 app provides access to standard OBD2 functions:

• Leer códigos: Recupere códigos de diagnóstico de problemas (DTC) de la unidad de control del motor (ECU) del vehículo.
• Códigos claros: Erase DTCs and turn off the Check Engine Light (MIL) after repairs.
• Datos en tiempo real: View real-time sensor data, such as engine RPM, vehicle speed, coolant temperature, and fuel system status.
• Preparación I / M: Verifique el estado de los monitores relacionados con las emisiones para asegurarse de que el vehículo esté listo para una prueba de emisiones.
• Congelar datos de cuadro: View una instantánea de los datos del sensor registrados cuando ocurrió una falla relacionada con las emisiones.
• Información del vehículo: Recupere el número de identificación del vehículo (VIN), la identificación de calibración y los números de verificación de calibración (CVN).

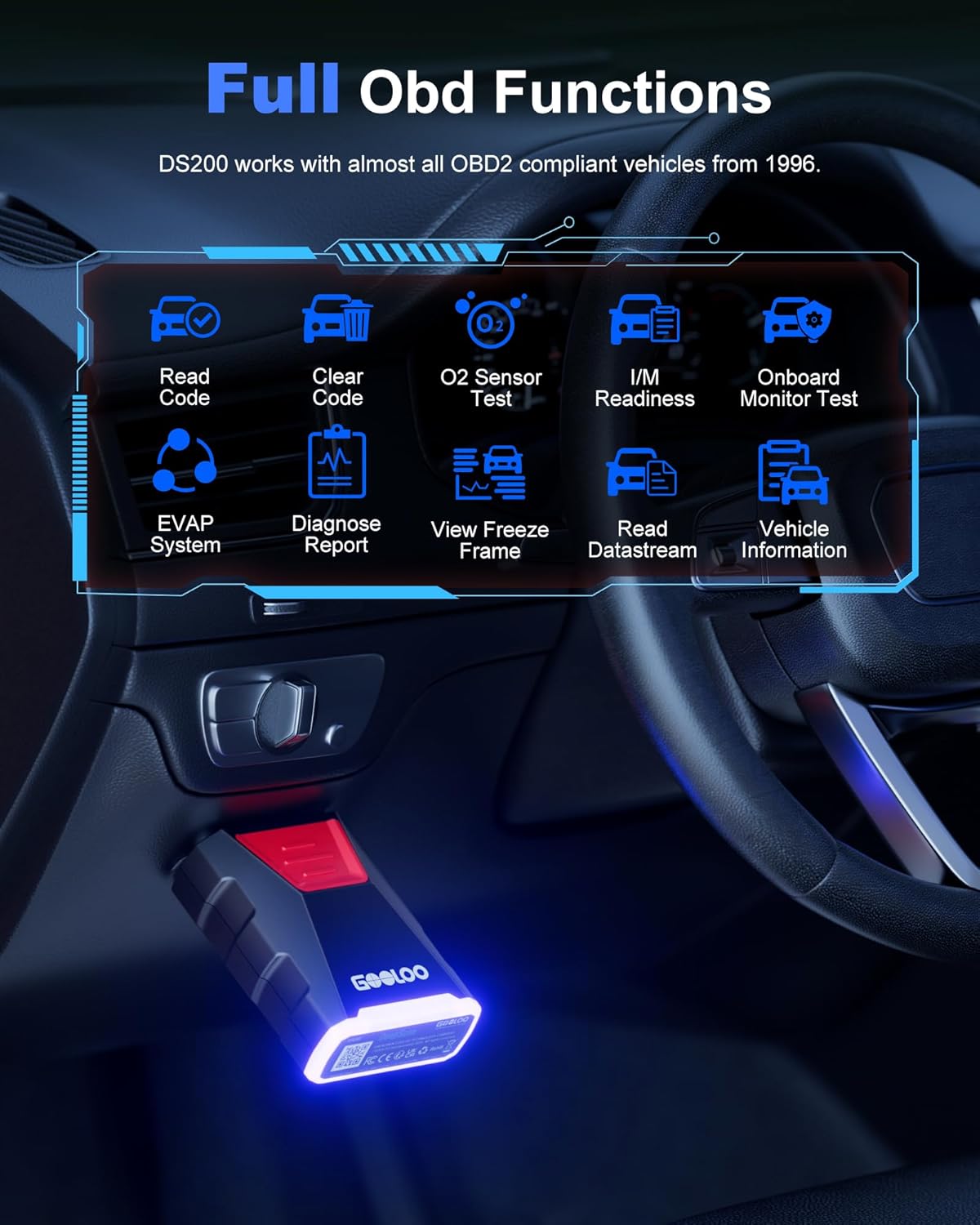

Image 4.3: The DS200 app interface displaying various full OBD functions like Read Code, Clear Code, O2 Sensor Test, and Live Data.

4.5. Funciones de diagnóstico avanzadas

The DS200 offers advanced features for in-depth vehicle analysis:

• Diagnóstico completo del sistema: Scan all available electronic control units (ECUs) in the vehicle, including Engine, Transmission, ABS, SRS, BCM, etc., to read and clear fault codes.
• Control bidireccional: Perform active tests to control various vehicle components (e.g., turn on/off wipers, headlights, fuel pump) to verify their functionality.
• Servicios de mantenimiento: Access common maintenance functions such as Oil Reset, Throttle Adaptation, EPB Reset, Steering Angle Resets, DPF Regeneration, ABS Bleeding, BMS Reset, and Airbag Reset.
• Prueba de rendimiento del vehículo: Conduct tests to evaluate vehicle performance metrics like acceleration time, top speed, and engine load.

Image 4.4: The DS200 app interface listing 8 common maintenance services available for various vehicle systems.

Image 4.5: The DS200 app demonstrating bidirectional control, allowing users to troubleshoot faults by controlling components like wipers, mirrors, and headlights.

4.6. DS200 Specifications

5. Cuidado y mantenimiento

Proper care ensures the longevity and optimal performance of your GOOLOO devices.

• Limpieza: Utilice un paño suave y seco para limpiar el exterior de ambos dispositivos. No utilice limpiadores abrasivos ni disolventes.
• Almacenamiento: Store the devices in a cool, dry place away from direct sunlight and extreme temperatures. For the GT6000, ensure it is charged to at least 50% before long-term storage and recharge every 3-6 months.
• Manejo: Evite dejar caer o someter los dispositivos a impactos fuertes.
• cables: Inspect jumper cables and OBD2 connector for any damage before each use. Replace if frayed or damaged.

6. Solución de problemas

6.1. GT6000 Jump Starter Issues

• El dispositivo no enciende: Asegúrese de que el dispositivo esté cargado. Mantenga pulsado el botón de encendido durante unos segundos.
• El vehículo no arranca:
  • Compruebe que el clamps están conectados de forma segura a los terminales correctos de la batería.
  • Ensure the GT6000 has sufficient charge.
  • If the battery is severely discharged, press the BOOST button on the GT6000 (if available and safe to do so, refer to specific product instructions for boost mode).
  • The vehicle battery might be completely dead or damaged and require replacement.
• "Battery Clips Reversed" error: Desconectar clamps y vuelva a conectarlos a los terminales positivos (+) y negativos (-) correctos.

6.2. DS200 OBD2 Scanner Issues

• El escáner no se enciende: Ensure the DS200 is fully plugged into the vehicle's OBD2 port and the vehicle's ignition is on.
• No se puede conectar a través de Bluetooth:
  • Asegúrese de que Bluetooth esté habilitado en su teléfono inteligente.
  • Restart the GOOLOO DEEPSCAN app.
  • Unplug and re-plug the DS200 from the OBD2 port.
  • Check if the app requires location permissions, as some Bluetooth functions do.
• No communication with ECU:
  • Verifique que el encendido del vehículo esté encendido.
  • Ensure the DS200 is securely connected to the OBD2 port.
  • Confirm your vehicle is OBD2 compliant (most vehicles from 1996 onwards).
  • Try scanning a different vehicle to rule out scanner malfunction.

7. Garantía y atención al cliente

GOOLOO products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your GT6000 Jump Starter or DS200 OBD2 Scanner, please refer to the official GOOLOO websitio o comuníquese directamente con su servicio de atención al cliente.

Please have your product model number (GT6000, DS200) and purchase information ready when contacting support.
