WORKPRO Multi-Tool Pliers Instruction Manual

Introducción

Thank you for choosing the WORKPRO Multi-Tool Pliers. This manual provides essential information for the safe and effective use of your 18-in-1 or 24-in-1 multi-tool. Please read these instructions carefully before operation and retain them for future reference.

Información general de seguridad

• Always handle the multi-tool with care. Blades and pointed tools are sharp.
• Keep fingers clear of moving parts and folding tools to prevent pinching.
• Ensure tools are fully locked into position before use.
• Mantener fuera del alcance de los niños.
• Do not use the multi-tool for purposes other than its intended design.

Producto terminadoview: 18-in-1 Multi Tool

The WORKPRO 18-in-1 Multi Tool is a compact and versatile tool designed for various tasks. Familiarize yourself with its components:

Figura 1: Encimaview of the 18-in-1 Multi Tool components, including pliers, wire cutters, saw, knife, screwdrivers, and more.

Components of the 18-in-1 Multi Tool:

• Alicates de punta larga
• Alicates regulares
• Soft & Hard Wire Cutter
• Crimpadora de cables
• Clip para cinturón
• Tijeras
• pelacables
• Abrelatas
• Madera/Metal File
• Cortador de cuerda
• Cuchillo serrado
• Destornillador de punta plana grande
• Destornillador plano pequeño
• Destornillador Phillips (PH0)
• Destornillador Phillips (PH3)
• Cuchillo
• Sierra

Producto terminadoview: 24-in-1 Multitool

The WORKPRO 24-in-1 Multitool offers an extended range of functions for diverse applications. Understand its features:

Figura 2: Encimaview of the 24-in-1 Multitool components, featuring pliers, wire cutters, saw, knife, various screwdrivers, and additional bits.

Components of the 24-in-1 Multitool:

• Alicates de punta larga
• Alicates regulares
• Soft & Hard Wire Cutters
• Sierra
• Cuchillo
• pelacables
• Abrelatas
• Awl with Thread Loop
• Clavo File
• Destornillador de punta plana
• Destornillador Phillips (PH1)
• Destornillador Phillips (PH2)
• Abrebotellas
• Clip para cinturón
• 8 Screwdriver Bits (various sizes)

Configuración

Your WORKPRO Multi-Tool comes pre-assembled and ready for use. No complex setup is required. Simply unfold the desired tool from its housing.

Unfolding Tools:

The multi-tool is designed for easy access to individual components. Tools can be opened in two directions for convenience and efficiency.

Figura 3: Illustration of the multi-tool's dual-direction opening mechanism. Large tools can be deployed without unfolding the pliers, while small tools open outwards to prevent stacking.

• Large Tools: Tools like the knife and saw can be folded out or in without needing to open the main pliers.
• Small Tools: Smaller tools such as screwdrivers and can openers open in the opposite direction, preventing them from stacking together and allowing for easier access.

Instrucciones de funcionamiento

To use any tool, carefully unfold it until it clicks into place. Always ensure the tool is fully extended and locked before applying force.

Safety Lock Mechanisms:

Your WORKPRO Multi-Tool is equipped with safety locks to prevent accidental closure during use.

Figura 4: The Liner Safety Lock mechanism, which secures larger tools like the knife and saw when deployed.

• Bloqueo de seguridad del revestimiento: This lock controls larger tools that open inward, such as the wood/metal file, serrated knife, knife, and saw. It ensures these tools remain open and stable during use. To disengage, push the liner lock to the side and fold the tool back into the handle.

Figura 5: The Back Safety Lock mechanism, which secures smaller tools like the wire stripper, can opener, and screwdrivers.

• Bloqueo de seguridad trasero: This lock controls smaller tools that open outward, including the wire stripper, can opener, small & large slotted screwdrivers, scissors, rope cutter, and Phillips screwdrivers (PH0 & PH3). It prevents these tools from folding back unexpectedly. To disengage, press the lever at the back of the tool and fold the component back into the handle.

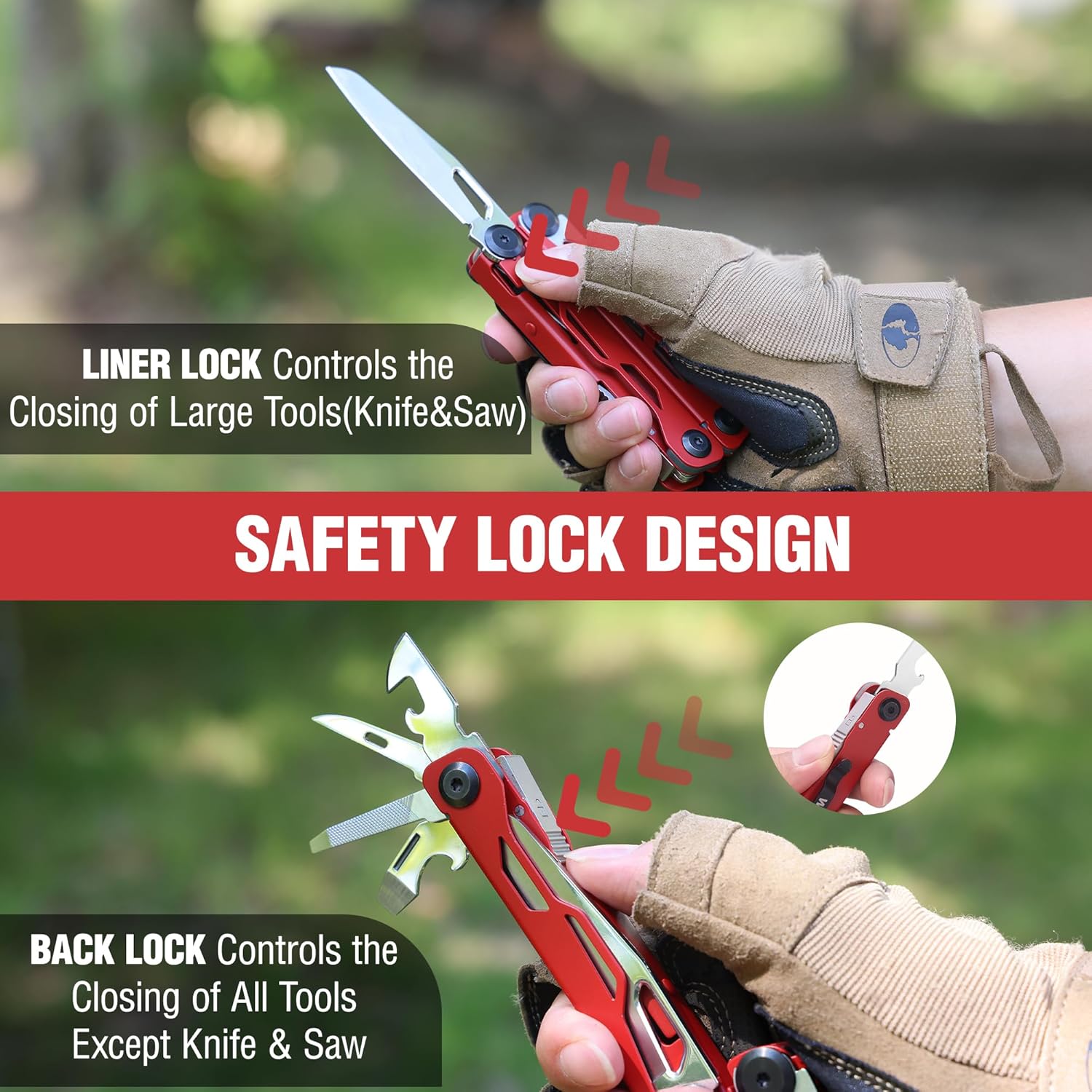

Figura 6: Conjunto view of the Liner Lock (for large tools) and Back Lock (for small tools) safety features on the 24-in-1 model.

Consejos generales de uso:

• When using pliers, ensure a firm grip on the handles.
• For cutting tasks, apply steady pressure and cut away from your body.
• When using screwdrivers, select the correct size bit to prevent stripping screws.
• Always close tools securely after use to prevent injury and damage.

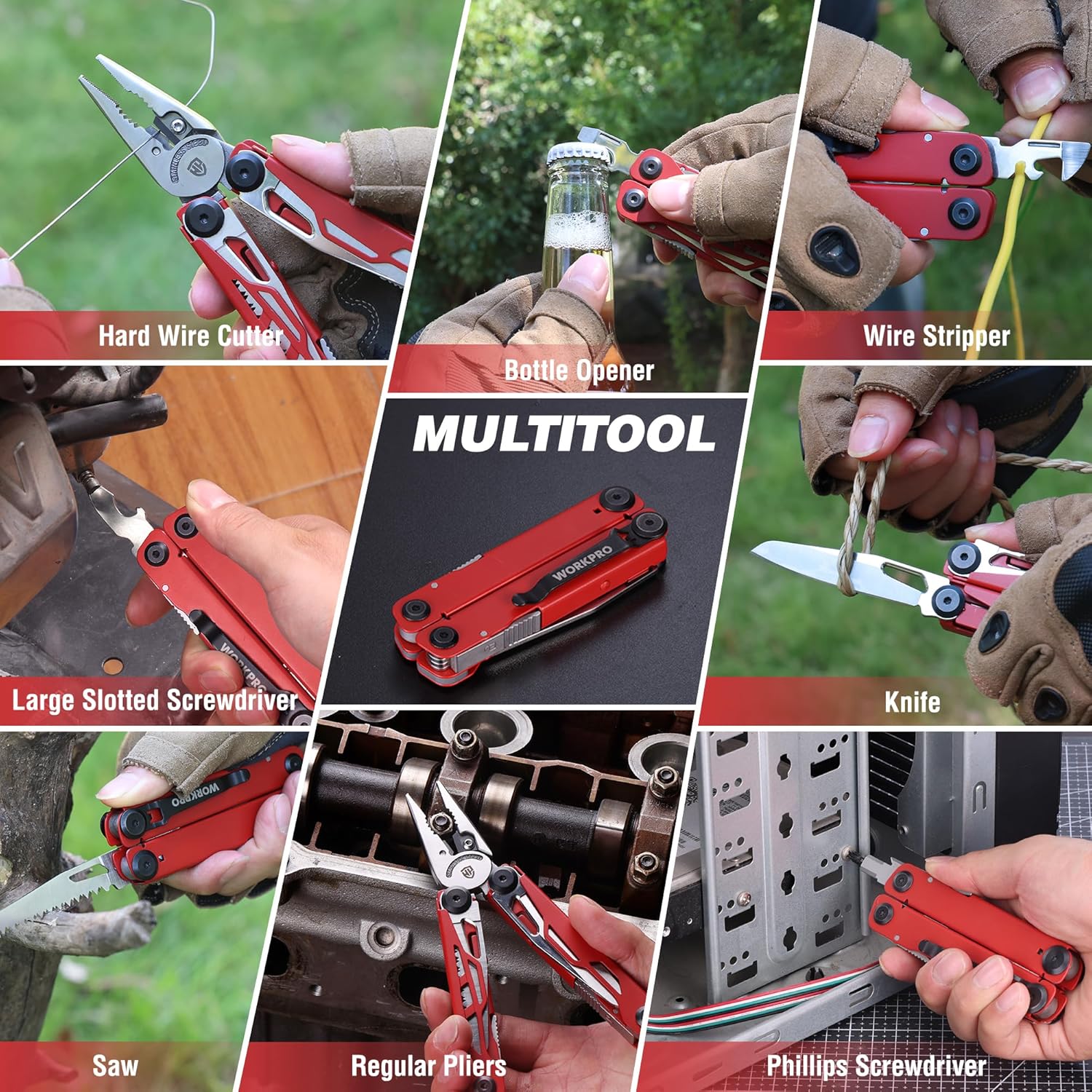

Figura 7: Examples of the multi-tool in action, demonstrating its versatility for tasks such as wire cutting, bottle opening, and sawing.

Mantenimiento

Proper maintenance ensures the longevity and optimal performance of your WORKPRO Multi-Tool.

Limpieza:

• After each use, especially in wet or dirty conditions, clean the tool with a damp paño.
• For stubborn dirt, use a small brush (e.g., an old toothbrush) to clean crevices.
• Ensure the tool is completely dry before storing to prevent rust.

Lubricación:

• Periodically apply a small amount of light machine oil to the pivot points and moving parts.
• Limpie cualquier exceso de aceite.

Almacenamiento:

• Store the multi-tool in a dry environment.
• Keep it in its protective sheath or a toolbox to prevent damage and protect other items.

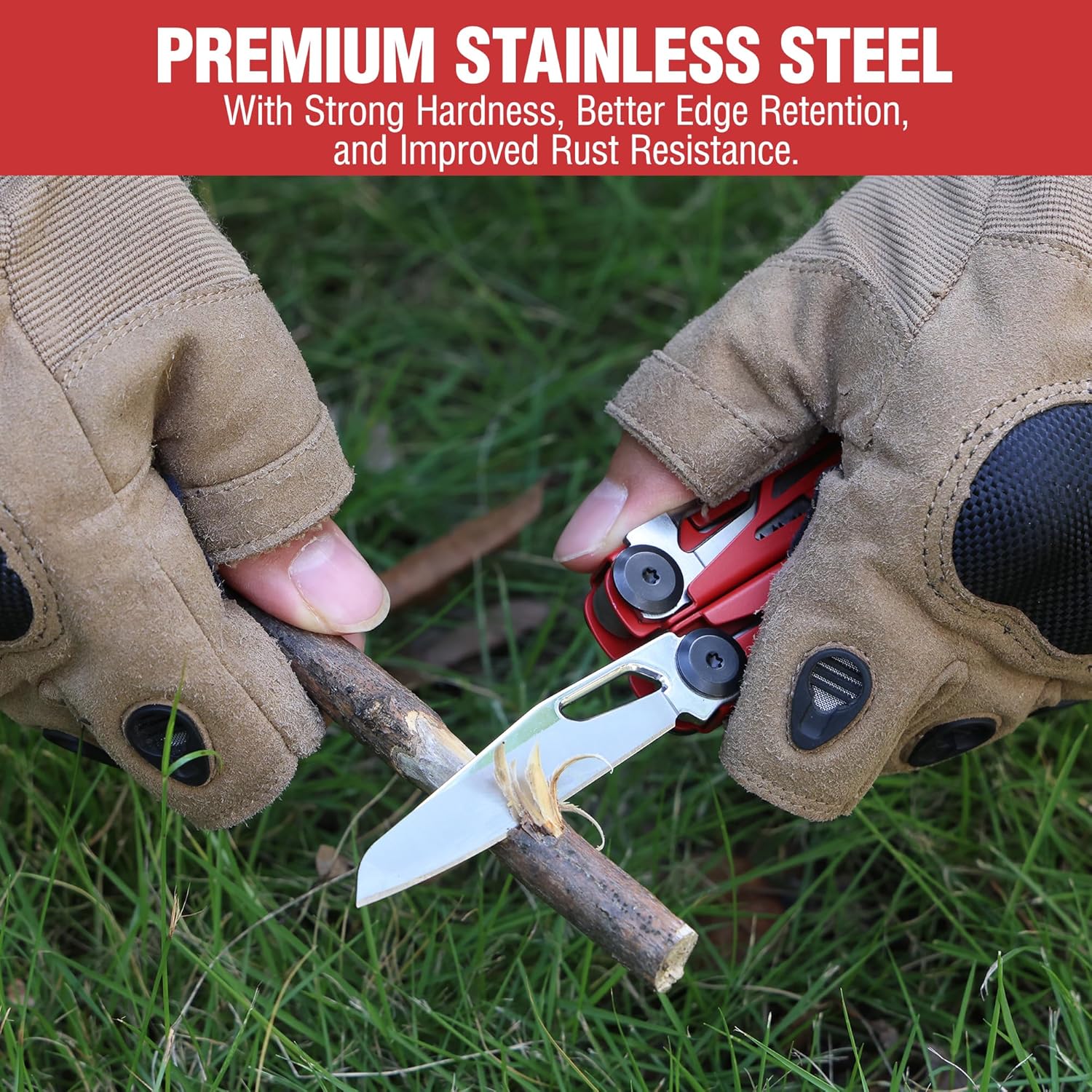

Figura 8: The multi-tool features premium stainless steel construction, offering strong hardness, better edge retention, and improved rust resistance, which benefits from proper maintenance.

Solución de problemas

If you encounter issues with your WORKPRO Multi-Tool, refer to the following common solutions:

Presupuesto

Garantía y soporte

WORKPRO products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the official WORKPRO webSitio web o contacte directamente con el servicio de atención al cliente. Conserve su recibo de compra como comprobante.

Para obtener más ayuda, puede visitar el Tienda WORKPRO en Amazon.
